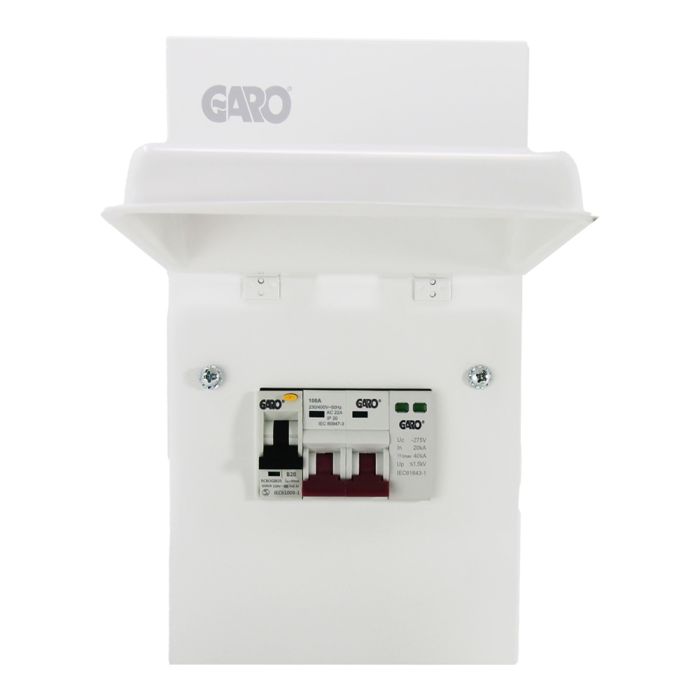

Garo 1 Way Solar Consumer Unit with SPD and Main Switch and 16A RCBO

The Garo Solar Consumer Unit 4 Way 100A SPD 16A RCBO is a high-performance, compact solution tailored for reliable solar energy distribution and protection. Designed to meet the rigorous demands of modern electrical systems, this 4-way consumer unit delivers safe, streamlined power management with a rated current of 16A and a standard voltage of 230V AC. Whether you’re managing domestic solar installations or light commercial setups, this unit ensures consistent operation at 50/60Hz frequency with a robust 100A double pole isolator at its core.

Compliant with EN 61439-3 and aligned with BS 7671 regulations, the Garo Solar unit features an integrated 16A RCBO with 30mA sensitivity for enhanced fault detection and individual circuit protection. Its SPD Type 2 surge protection shields your system from voltage spikes, while the IP40-rated enclosure offers dependable environmental resistance. Supporting terminals up to 35mm and rated for a conditional short-circuit withstand of 16kA, it’s an ideal solution for solar installations demanding efficiency, compliance, and safety at every level.

Key features of Garo Solar Consumer Unit 4 Way 100A SPD 16A RCBO GS4SOL:

• Rated current: 16A
• Rated voltage: 230 V AC
• Frequency: 50/60 Hz
• Rated Conditional Short Circuit (Icc): Annex ZB: 16kA rms at 250V
• Main Device: 100A DP Isolator
• Additional Devices: 16A RCBO 30mA
• Surge Protection: SPD Type 2
• IP Rating: IP40
• Total number of ways: 4 ways
• Height: 235mm
• Width: 125mm
• Depth: 110mm
• Terminals: 35mm
• Maximum backup protection: 100A
• Standard: EN 61439-3, compliant with BS 7671
