Hager Consumer Unit High Integrity 26 Way Dual Bank

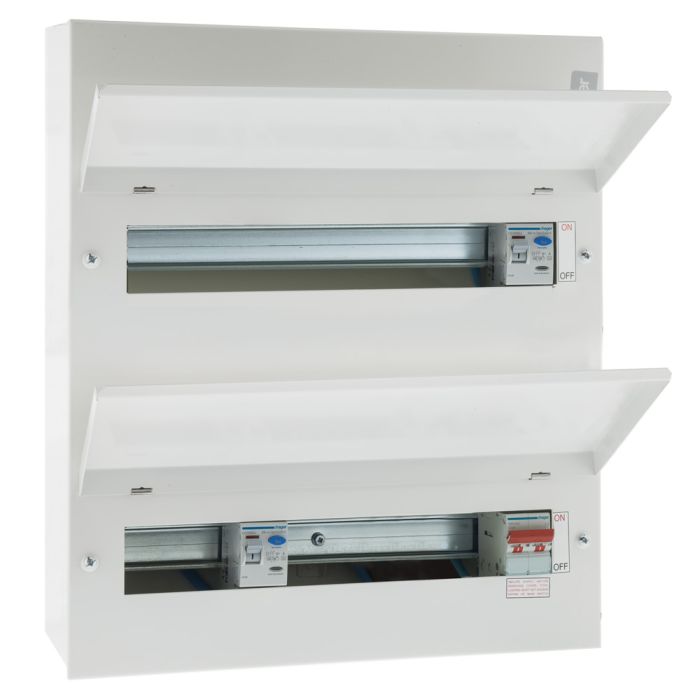

Hager VML91214CU 26 Way High Integrity Consumer Unit Dual Row, configured in 2 separate rows with a capacity of 12 and 14. Supplied with 2 x 100A 30mA Type A RCD and 1 x 100A double pole Isolator Switch. VML91214CU provides a fast, simple installation, allowing for top, bottom and rear knockouts and a meter tail cable entry plate, ideal for larger installations.

Installation is fast an simple. Cable entries are available on all sides of the unit whilst a raised interior maximises wiring space for fast and simple connection. The top mounted terminal rail makes wiring of the neutral and earth connections fast and neat. A full complement of earth and neutral terminals are provided alongside marking labels, busbar and instructions.

Use of a Hager High Integrity Consumer Unit allows for the separation of circuits from the main RCD protected system. Ideal for usage with critical circuits such as smoke detectors and alarms. High Integrity Consumer Units offer total separation of critical circuits from standard circuits, providing excellent protection and ease of circuit design for the installer and homeowner.

VML91214CU is a discreet, unobtrusive fitting with a slimline exterior featuring a clean white aesthetic ideal for usage throughout modern interior decors. The duplex format is ideal for installation within areas with limited horizontal wall space.

Fully Compliant with 18th Edition Wiring Regulations and BS EN 61439-3.

Features of Wylex VML91214CU:

• Number of ways: 26 Way (14 + 12 Ways)
• Complete with: 1 x 100A double pole Main Switch, 2 x 100A 30m A Type A RCD
• Square Cable entries provided on all sides
• Fully compliant with BS EN 61439-3
• Compliant with 18th Edition Wiring Regulations
• Terminal capacity: 50mm²
• Height: 486mm
• Width: 370mm
• Depth: 100mm
• Voltage: 230V
• Surface Mounted
• Guarantee: 2 Years
