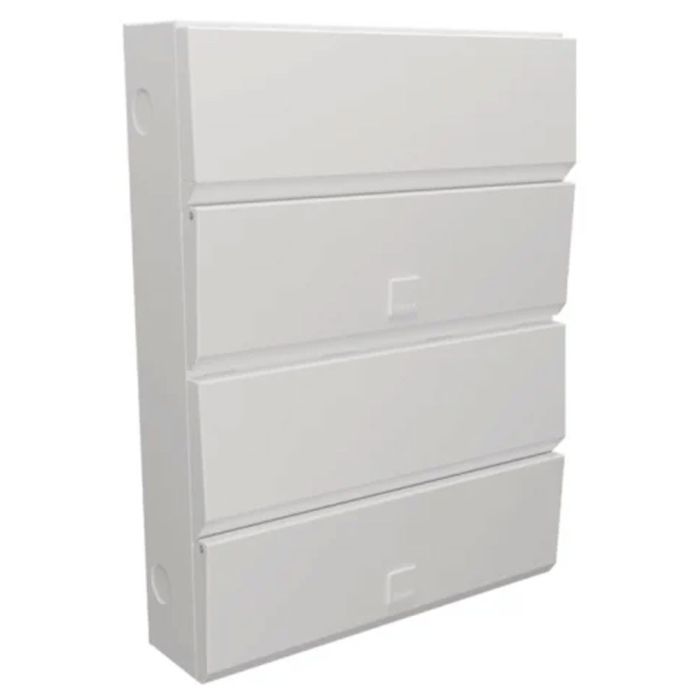

Hager 27 Way Consumer Unit 100A Switch Type 2 SPD VME11314SPD

Hager VME11314SPD — 13+14 Way 100A Consumer Unit with Switch Disconnector Incomer and Type II SPD, 2 Row, Surface Mount.

The Hager VME11314SPD is a 27-module, double-row consumer unit built for domestic and light commercial installations that need robust overcurrent protection alongside integrated surge protection as standard. With a 100A rated switch disconnector incomer and a factory-fitted Type II surge protection device (SPD), it combines two critical layers of protection in a single enclosure — saving installation time and reducing the number of separate components on the board.

Built-in Surge Protection — Safeguarding Your Installation

Transient overvoltages from lightning strikes or grid switching events can destroy sensitive electronic equipment in seconds. The VME11314SPD includes a Type II SPD integrated into the enclosure, so every circuit downstream benefits from surge protection without needing a separate DIN-rail device or additional enclosure space. For contractors specifying boards in accordance with BS 7671 Amendment 3 recommendations on surge protection, this unit delivers a compliant solution straight from the box.

Switch Disconnector Incomer — Safe Isolation Made Simple

The 100A switch disconnector incomer gives a clear isolation point for the whole installation — essential for safe working practice during maintenance or emergency shutdown. With both main switch and overvoltage protection functions confirmed, the VME11314SPD is well suited to installations where a combined, compact solution is the priority.

Generous Capacity — Ready for Modern Electrical Demands

With 27 modules across two rows and two DIN rails, this consumer unit accommodates a full range of MCBs, RCBOs, and RCDs for today's property requirements — including EV charger circuits, heat pump supplies, and multi-circuit separation. The surface-mount design keeps installation straightforward in utility areas, garages, and outbuildings where flush mounting is not practical.

Durable Construction — Reliable Performance Long Term

The metal enclosure in white (RAL 9010) provides a robust housing rated to IP4X and IK05, giving adequate protection against dust ingress and light mechanical impact for indoor surface-mounted applications. RoHS compliance confirms the unit meets EU and UK environmental standards.

Key Features of the Hager VME11314SPD Consumer Unit Include:

• Integrated Type II SPD — Factory-Fitted Surge Protection Keeps All Downstream Circuits Safe Without Extra Devices
• 100A Switch Disconnector Incomer — Provides a Clear, Safe Isolation Point for the Whole Installation
• 27-Module Capacity Across 2 Rows — Accommodates a Full Circuit Schedule Including EV Charger & Heat Pump Circuits
• Surface Mounting — Quick, Straightforward Fit in Garages, Utility Rooms & Outbuildings
• 2 DIN Rails — Flexible Circuit Arrangement Across Both Rows
• Metal Enclosure, White (RAL 9010) — Robust, Professional Finish
• Ingress Protection: IP4X
• Impact Resistance: IK05
• Rated Current: 100A
• Number of Poles: 2
• Height: 480mm
• Width: 364mm
• Depth: 102.5mm
• Weight: 7.3kg
• RoHS Compliant: Yes
