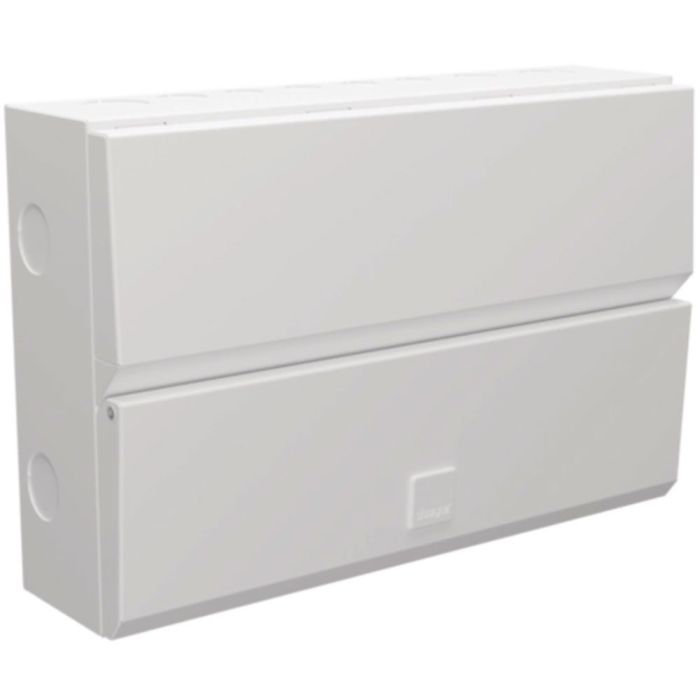

Hager 9 Way Consumer Unit 100A High Integrity VME909CUSPD

Hager VME909CUSPD — 9 Way High Integrity 100A Consumer Unit, 2x 100A 30mA RCCB, Single Module Type II SPD, Surface Mount, White.

The Hager VME909CUSPD is a 9-way high integrity consumer unit built for domestic and light commercial installations requiring integrated surge protection and dual RCD protection from a single surface-mounted enclosure. With a 100A rated current, two 100A 30mA RCCBs, a built-in Type II surge protective device (SPD), a main protection switch, and a single-row 9-module DIN rail, it delivers a compliant, complete consumer unit solution that meets the requirements of BS 7671 18th Edition Amendment 2 for both RCD and SPD provision.

Type II SPD Integrated — No Separate SPD Enclosure Required

The VME909CUSPD includes a single-module Type II surge protective device as part of the consumer unit assembly, protecting connected circuits against transient overvoltages without requiring a separate SPD enclosure or additional DIN rail space. This simplifies the installation, reduces the number of separate products to procure and install, and keeps the overall board footprint compact — a practical advantage in surface-mounted installations where space is limited.

Dual 100A 30mA RCCB Protection for High Integrity Wiring

Two 100A 30mA RCCBs provide the high integrity split-load protection arrangement required for domestic and small commercial installations under current wiring regulations. Splitting the circuits across two RCCBs ensures that a single earth fault does not trip all circuits simultaneously, maintaining supply to unaffected circuits and meeting the high integrity requirement for consumer units. The 100A main protection switch provides isolation of the entire board when required.

Surface Mounting for Accessible Installations

The VME909CUSPD is designed for surface mounting — straightforward to position on any flat wall surface without requiring a flush-mounting recess or back box. The metal enclosure in RAL 9010 white provides a clean, professional finish suitable for utility rooms, garages, outbuildings, and commercial premises. At 364×240×102.5mm the board is compact for a 9-way unit, and the IK05 impact resistance rating provides a degree of protection against accidental mechanical contact in accessible locations.

Key Features of the Hager 9 Way High Integrity Consumer Unit VME909CUSPD Include:

• Integrated Type II SPD — Surge Protection Built In; No Separate SPD Enclosure or Additional Rail Space Required
• 2x 100A 30mA RCCB — High Integrity Split-Load Protection Compliant with BS 7671 18th Edition Amendment 2
• 100A Main Protection Switch — Full Board Isolation When Required
• 9-Way Single Row DIN Rail — Capacity for Up to 9 Single-Module Devices
• Surface Mounting — Clean, Professional Installation Without a Flush-Mounting Recess
• IP4X Ingress Protection — Protected Against Solid Objects Greater Than 1mm
• IK05 Impact Resistance — Mechanical Protection for Accessible Installation Locations
• Single Phase — 1 Accessible Phase
• Metal Enclosure — RAL 9010 White Powder-Coated Finish
• RoHS Compliant
• Rated Current: 100A
• Height: 240mm
• Width: 364mm
• Depth: 102.5mm
• Weight: 5kg
