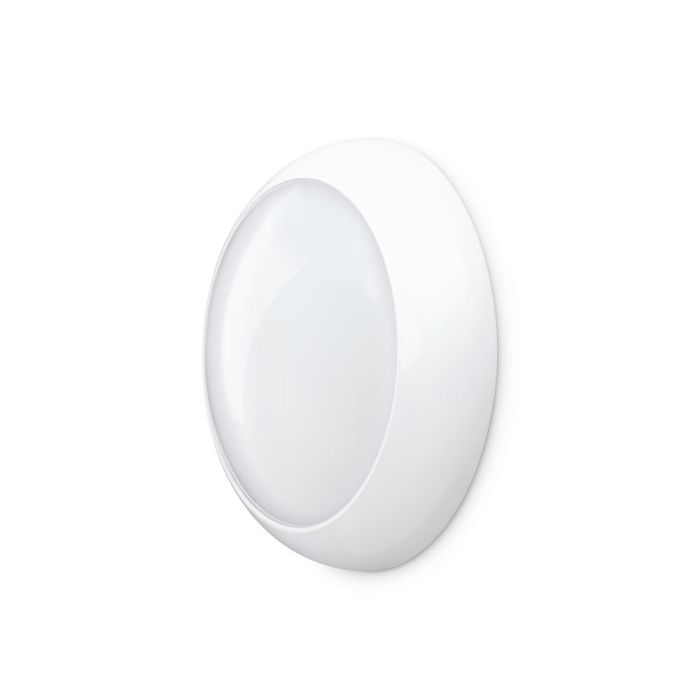

JCC RadiaLED Rapid Pro Bulkhead 12-20W CCT EM Dimmable White IP65

The JCC RadiaLED Rapid Pro Bulkhead 12–20W CCT Emergency is a highly adaptable lighting solution designed for commercial and residential environments where performance, compliance and flexibility are essential. With wattage selectable output of 12W, 16W or 20W, the bulkhead delivers light outputs ranging from 1,490 to 2,430 lumens, allowing installers to match illumination levels precisely to the space.

CCT Selectable and Microwave Dimmable Performance

Offering colour temperature selection of 3000K, 4000K or 5700K, this bulkhead can be tailored to suit warm, neutral or daylight environments. High efficiency of up to 127 lumens per circuit watt ensures strong performance with reduced energy consumption, while microwave dimming compatibility allows controlled light levels when used with suitable MW sensors. With CRI Ra80, it provides reliable colour rendering for everyday applications.

Installer-Friendly Design with Integrated Emergency Function

The tool-less, clip-in LED gear tray enables fast, hassle-free installation and maintenance, while four side 20mm conduit entry points provide flexible wiring options. Integrated emergency functionality delivers a minimum 3-hour battery runtime in the event of power failure, with a 24-hour recharge time ensuring ongoing compliance. Finished in white with a durable IP65-rated housing, the bulkhead is suitable for indoor and outdoor installations where moisture and dust protection is required.

Key features of the JCC RadiaLED Rapid Pro Bulkhead 12–20W CCT Emergency Dimmable White IP65:

• Wattage selectable LED bulkhead: 12W / 16W / 20W
• Light outputs: 12W – 1,490 lumens (124 lm/W) / 16W – 2,040 lumens (127 lm/W) / 20W – 2,430 lumens (up to 121 lm/W)
• CCT selectable: 3000K / 4000K / 5700K
• High efficiency of up to 127 lumens per circuit watt
• Microwave dimmable only
• Integrated emergency function with minimum 3-hour runtime
• 24-hour emergency battery recharge time
• Tool-less clip-in LED gear tray for quick installation
• Four side 20mm conduit entry points for wiring flexibility
• IP65 rated for dust and moisture protection
• CRI Ra80 for reliable colour rendering
• Ideal for corridors, stairwells, walkways and service areas
• Height: 98mm
• Diameter: 340mm
• Supplied with a 5-year manufacturer’s warranty
