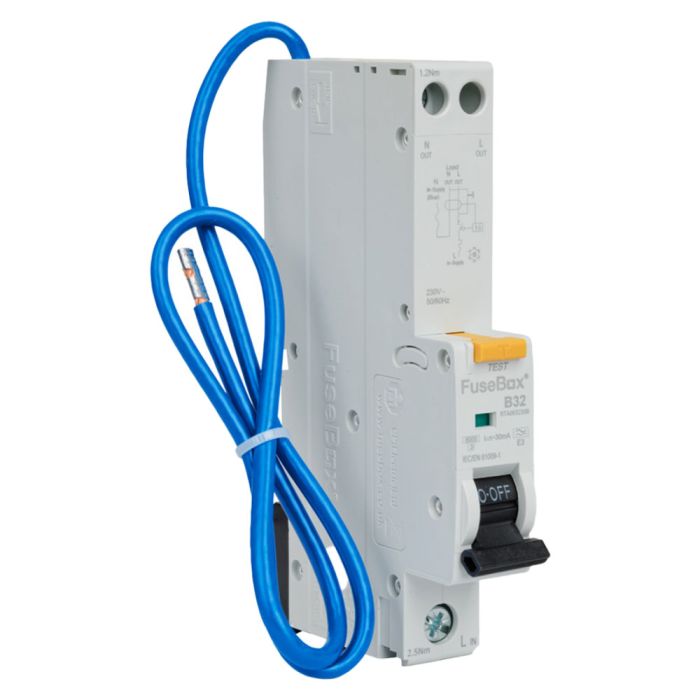

Fusebox RTA063230B 32A RCBO B Curve Single Pole Type A

Product Code RTA063230B

29 reviews

Available for Delivery only, change to Fast Delivery Service

£9.99

exc VAT

£11.99 : inc VAT

£11.99

inc VAT

£9.99 : exc VAT

  • BULK SAVINGS!
  • QTY Unit Price
  • 1-2 £9.99 £11.99
  • 3+ £9.93 £11.92

Qty:

feefo-reviews

The Fusebox RTA063230B is a high-quality 32A RCBO designed to provide comprehensive protection for electrical circuits. This Fusebox RCBO 32A offers superior protection against both overcurrents and earth leakage.

Overcurrent Protection

This Fusebox 32A RCBO effectively interrupts the electrical supply in the event of an overload, such as excessive current draw due to multiple devices operating simultaneously, or a fault within the circuit. This protects your wiring from overheating and potential fire hazards.

Residual Current Protection

The Fusebox RCBO provides protection against residual currents caused by earth leakage, which can occur due to faulty wiring or equipment. By rapidly detecting and interrupting the electrical supply, the Fusebox RCBO 32A significantly reduces the risk of electric shock.

Key Features of Fusebox RTA063230B 32A RCBO B Curve Single Pole Type A

  • Type A RCBO
  • Protects Against Both AC and Pulsating DC Currents.
  • 32A
  • Rated Residual Operating Current: 30mA
  • Single Pole
  • B Curve
  • 6kA Short Circuit Capacity Provides Robust Protection Against Short Circuits.
  • Voltage: 230V
  • Frequency: 50/60Hz
  • Rated Current: 6, 10, 16, 20, 25, 32, 40, 50ln
  • Tripping Characteristics: B Curve 3-5ln
  • Residual Current Characteristics: Type A (AC & Pulsating DC Up To 6mA)
  • Mechanical Endurance: 10,000
  • Maximum Terminal Capacity: 1-16mm²L In / 1-10mm² Out N L
  • Recommended Tightening Torque: 2.5Nm L In / 1.2Nm Out N L
  • Neutral Fly Cable Length: 450mm
  • Mounting: 35mm DIN Rail
  • Construction: PA6
  • IP Rating: IP20
  • Standards: IEC/EN 61009-1, BS EN 62606

View All Fusebox Products

View All RCBOs

Do you need some help, would like to take advantage of our Price Promise or perhaps have a large order to place? If you can't find what you need, we can source it for you by giving our team of professionals a call on 0203 994 5470, drop us an email at sales@electricpoint.com or use our Contact Form.

Product Downloads Fusebox RCBO 6kA B Curve Data Sheet, Fusebox RCBO 6kA B Curve Manual
Model Number RTA063230B
Brand Fusebox
Range RCBOs
Product Type RCBO
Rating 32A
Mounting 35mm DIN Rail
Number of Poles 1
Voltage 230V
Frequency 50/60Hz
Rated Breaking Capacity 6000A (6kA)
Rated Current 6, 10, 16, 20, 25, 32, 40, 50ln
Tripping Characteristics B Curve: 3-5ln
Residual Current Characteristics Type A (AC & Pulsating DC Up To 6mA)
Rated Residual Operating Current 0.03
Mechanical Endurance 10,000
Maximum Terminal Capacity 1-16mm²L In / 1-10mm² Out N L
Recommended Tightening Torque 2.5Nm L In / 1.2Nm Out N L
Neutral Fly Cable Length 45mm
Material PA6
IP Rating IP20
18th Edition Compliant Yes
Standards IEC/EN 61009-1
