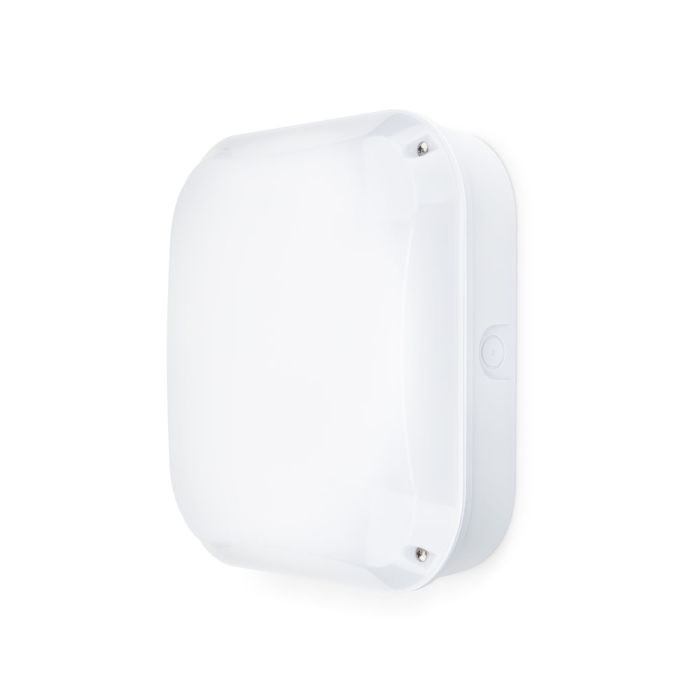

JCC RadiaLED Rapid Pro LED Bulkhead Square 12-20W CCT White IP65

The JCC RadiaLED Rapid Pro LED Bulkhead Square 12–20W CCT White is a versatile, high-efficiency bulkhead designed for commercial, residential and industrial environments. With wattage selectable options of 12W, 16W or 20W, it delivers light outputs from 1,490 to 2,430 lumens, allowing installers to tailor performance to the application while achieving efficiencies of up to 127 lumens per circuit watt.

Flexible Colour Selection with Robust Protection

Featuring CCT selection between 3000K, 4000K and 5700K, the RadiaLED Rapid Pro adapts easily to different settings, from warm ambient spaces to bright task-focused environments. An IP65 rating provides full protection against dust and water ingress, while the IK10 impact rating ensures durability in high-traffic or vandal-prone areas. With CRI Ra80, it delivers reliable colour rendering for everyday use.

Installer-Friendly Design Built to Last

Designed with efficiency on site in mind, the bulkhead incorporates a unique clip-in, tool-less LED gear tray, simplifying installation and maintenance. Four side 20mm conduit entry points offer flexible wiring options, making it ideal for both new installations and retrofits. Backed by a 60,000-hour LED lifespan, the RadiaLED Rapid Pro provides long-term, low-maintenance performance in demanding environments.

Key features of the JCC RadiaLED Rapid Pro LED Bulkhead Square 12-20W CCT White IP65:

• Wattage selectable LED bulkhead: 12W / 16W / 20W
• Light outputs: 12W – 1,490 lumens (124 lm/W) / 16W – 2,040 lumens (127 lm/W) / 20W – 2,430 lumens (up to 121 lm/W)
• CCT selectable: 3000K / 4000K / 5700K
• High efficiency of up to 127 lumens per circuit watt
• IP65 rated for dust and water protection
• IK10 impact resistant construction
• Tool-less clip-in LED gear tray for fast installation
• Four 20mm side conduit entry points for flexible wiring
• CRI Ra80 for consistent colour rendering
• Long 60,000-hour LED lifetime
• Depth: 87mm
• Width: 286mm
• Depth: 286mm
• Supplied with a 5-year manufacturer’s warranty
