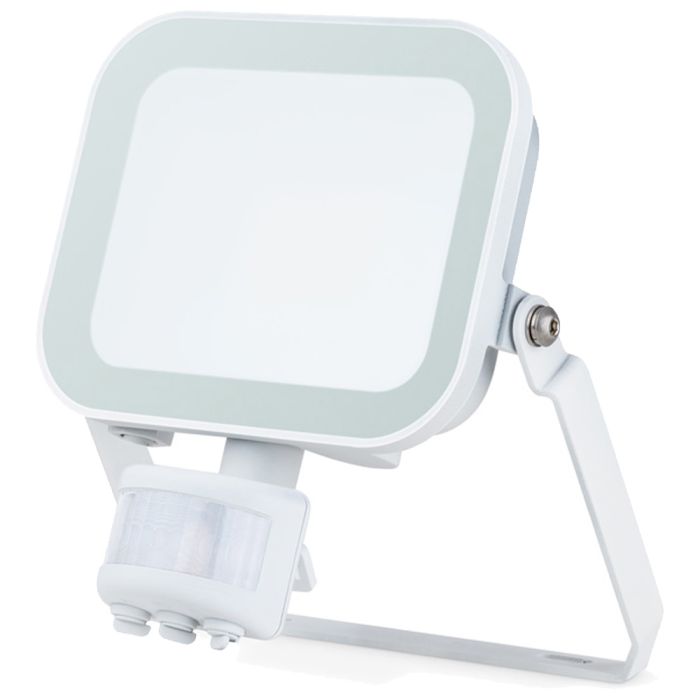

JCC Niteflood LED Floodlight with PIR 20W IP65 4000K White

Product Code JC091012

reviews

Add Your Review

Available for Delivery only, change to Fast Delivery Service

£14.66

exc VAT

£17.59 : inc VAT

£17.59

inc VAT

£14.66 : exc VAT

  • BULK SAVINGS!
  • QTY Unit Price
  • 1-2 £14.66 £17.59
  • 3+ £14.48 £17.38

Qty:

Introducing the JCC Niteflood JC091012, a 20W LED Floodlight with  PIR.

Enhanced Illumination: With an output of 2100 lumens and up to 112 LpcW, this floodlight ensures bright and efficient lighting, perfect for illuminating outdoor spaces.

Robust Protection: Featuring IP65-rated protection, this floodlight is well protected from dust and moisture, ensuring durability and reliability even in challenging weather conditions.

Convenient Installation: The 60° angled bracket facilitates easy installation, whilst a breather gland protects against condensation, prolonging the lifespan of the fixture.

Reduced Glare: Equipped with opal glass, this floodlight minimizes glare, providing a comfortable lighting experience.

Versatile Adjustability: Enjoy flexibility with adjustable settings including Lux levels (10 - 2000 Lux) and 'on' time (10sec to 7min), allowing tailored lighting solutions for various applications.

Driverless Technology: Featuring driverless technology, this floodlight ensures efficient performance and hassle-free operation.

Manual Override: Benefit from manual override functionality, offering additional control over the lighting system as needed.

Key Features of JCC Niteflood JC091012 PIR LED Floodlight:

  • 20W LED Floodlight with PIR
  • Full IP65 Protection
  • Breather Gland for Condensation Protection
  • Opal Glass for Glare Reduction
  • Angled Bracket for Ease of Installation
  • Pre-Wired with 800mm Flex
  • Driverless Technology
  • Adjustable Lux: 10 - 2000
  • Adjustable "on" Time: 10sec to 7min
  • 180º Detection
  • 10m Detection at 2.5m
  • Color Temperature: 4000K
  • Lumens Per Circuit Watt: 105
  • Luminaire Circuit Wattage: 20W
  • Voltage Rating: 220-240V
  • Dimensions: 154.8 x 146.6 x 99.3mm
  • Guarantee: 2 year warranty. Extend to 3 Years if Registered within First Year of Purchase



View All JCC Flood Lights

View All LED Floodlights

If you just need some help, would like to take advantage of our Price Promise or perhaps have a large order to place give our team of professionals a call on 0203 994 5470, drop us an email at sales@electricpoint.com or use our Contact Form.

Product Downloads JC091012 Data Sheet, Niteflood PIR Instruction Manual
Manufacturer JCC
Manufacturer Part Number JC091012
Product Range JCC NiteFlood
Product Type 20W LED PIR Floodlight Cool White
Mounting Wall Mount
Environment Exterior
Product Group LED Floodlights
Color Finish White
Product Shape Rectangular
Product Range Niteflood®
Width (mm) 146.6
Height (mm) 154.8
Depth (mm) 99.3
Light Source LED
IP Rating IP65
Mounting Height 2.5m max
Driver Manufacturer No driver, mains LED Chips
Voltage Rating 220-240
Operating Frequency Hz 50/60Hz
Luminaire Circuit Wattage 20
Class I
Operating Temperature Range °C -10 to 30
LED Life (Hours)* 54000
Energy Rating This product contains a light source of energy efficiency class E
Actual Lumen Output 2100
Lumens Per Circuit Watt 105
Standard Deviation Colour Matching - SDCM <5
Color Rendering Index 80-89
CRI: Ra 83
Correlated Color Temperature 4000
Beam Angle ° 100
LOR (Light Output Ratio) % 100
Photometry Available Yes, available on request
Detection Distance 5-10m
Detection Motion Speed 0.6~1.5m/s
Detection Range 180°
Installation Height 1.8-2.5m
Power Consumption <0.9W
Construction Primary Material Aluminium
Outer Diffuser Opal toughened glass
Heat Sink Aluminium
Warranty 2 Year Warranty - Extend to 3 Years if Registered within First Year of Purchase
