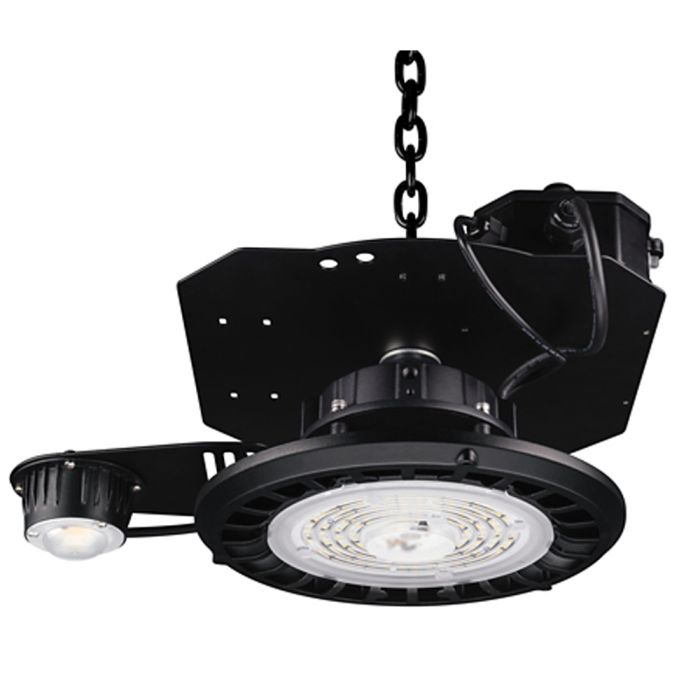

JCC Toughbay Pro Emergency High Bay 100W-200W 5700K IP65

Product Code JC040217

reviews

Add Your Review

Available for Delivery only, change to Fast Delivery Service

£123.33

exc VAT

£148.00 : inc VAT

£148.00

inc VAT

£123.33 : exc VAT

  • BULK SAVINGS!
  • QTY Unit Price
  • 1-2 £123.33 £148.00
  • 3+ £121.66 £145.99

Qty:

JCC Toughbay Pro Emergency LED High bay Lighting

Unmatched Power and Versatility

JCC Toughbay Pro Emergency is a powerful and versatile LED high bay. With its rugged construction and integrated self-test emergency module, this emergency high bay light is designed to deliver exceptional performance in any environment. Whether you need to illuminate large outdoor spaces, commercial properties, or industrial facilities, the Toughbay Pro has you covered.

Tailored to Your Needs

The Toughbay Pro offers a range of customisable features to meet your specific requirements. Choose from three wattage options (100W, 150W, and 200W) and adjust the output using the convenient wattage switch. With a 120° beam angle, you can precisely target your lighting needs.

Plug-and-Play PIR and Microwave Sensors

Enhance your Toughbay Pro highbays with PIR or Microwave sensors (available separately) for automatic operation. Simple to install with screw-on connections, these sensors are ideal for various applications. The PIR sensor excels in wide-area detection, while the microwave sensor is perfect for more defined spaces. For convenient control, LEV71808 remote control allows for easy programming and on/off operation.

Key Features of JCC Toughbay Pro LED High Bay JC040217:

  • LED Emergency High Bay Light
  • Integrated Self-Test Emergency Module with 130° Beam Angle
  • Wattage Selectable: 100W, 150W, 200W
  • 1-10V Dimmable
  • Toolless Conversion to Microwave Dim or PIR Dim Sensing
  • Mounting: Surface or Suspended
  • LED Life (Hours): 60000
  • Luminaire Circuit Wattage: 200/150/100W
  • Actual Lumen Output: 26600/21700/15550
  • Lumens Per Circuit Watt: 133/145/156
  • Colour Rendering Index: 80-89
  • CRI: Ra 82
  • Correlated Colour Temperature: 5700K
  • Beam Angle: 120°
  • LOR (Light Output Ratio): 100%
  • Operating Temperature Range: -20°C to +40°C
  • IP Rating: IP65
  • IK Rating: IK10
  • Dimensions (LxWxH): 370 x 290 x 194mm
  • Weight: 3.65kg
  • 5 Year Warranty

View All Highbay LED Lights

View All JCC Lighting

If you have any questions, would like to take advantage of our Price Promise or perhaps have a large order to place, give our team of professionals a call on 0203 994 5470, drop us an email at sales@electricpoint.com or use our Contact Form.

Product Downloads JCC JC040217 Datasheet, JCC Toughbay Pro Emergency Instructions
Manufacturer JCC
Product Type JCC Toughbay Pro Highbay Lighting
Model Number JC040217
Mounting Suspended or Surface Mount
LED Life (Hours) 60000
Actual Lumen Output 26600/21700/15550
Lumens Per Circuit Watt 133/145/156
Color Rendering Index 80-89
CRI: Ra 82
Correlated Color Temperature 5700K
Beam Angle 120° (130° Emergency)
LOR (Light Output Ratio) 100%
Primary Material Aluminium
Outer Diffuser Polycarbonate
Operating Temperature Range -20°C to +40°C
IP Rating IP65
Dimensions (LxWxH) 370 x 290 x 194mm
Approvals/Certification CE, UKCA, WEEE
Guarantee 5 Years
