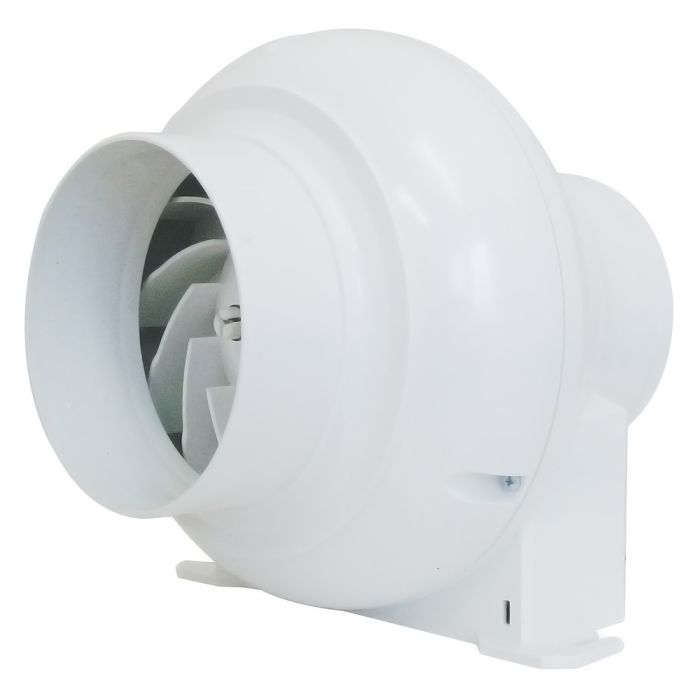

Manrose CFD200TN Extractor Fan with Timer

Manrose CFD200TN is a powerful 4 inch inline fan with an adjustable timer

Suitable for Wide Range of Applications in Domestic Environments

CFD200TN has been designed to ensure compliance with Building Regulations on Ventilation (F1) across a wide range of applications including bathrooms, toilets, en-suites and utility rooms within domestic environments.

Designed for Use With Suspended Ceilings

CFD200TN comes complete with mounting bracket for safe and secure installation

Integral Adjustable Timer

Fitted with an overrun timer which can be set to run for anywhere between 1 and 20 minutes, CFD200TN will continue to run for the pre-set amount of time once it has been turned off at the switch. This ensures that excess moisture is cleared from the air, preventing mould and condensation once the occupier has left the room.

Powerful, Quiet, Unobtrusive

Providing extract rates of up to 110m³/hr and a fan speed of 1400RPM, CFD200TN is a powerful inline fan that operates at just 45dB(A), about the same noise level as light rainfall

Ideal for Longer Duct Runs

Fitted with centrifugal backward curved impellers, CFD200TN enables large volumes of airflow even against high pressures caused by longer duct runs. A spring operated backdraught shutter prevents unwanted draughts from entering the property.

Maintenance-Free, Long-Life Motor

A single phase induction motor benefits from pre-oiled bearings ensuring a long, maintenance free life whilst the outer casing is made from high strength ABS thermoplastics for durability and easy cleaning.

Key Features of Manrose CFD200TN Include:

• 4 Inch (100mmØ) Inline Fan
• Suitable for Domestic Applications
• Designed for Use with Suspended Ceilings -Mounting Bracket Included
• Powerful & Quiet
• Backward Curved Centrifugal Impellers Create Large Airflow Ideal for Longer Duct Runs
• Long-Life Maintenance Free Motor with Pre-Oiled Bearings
• Spring Operated, Non-Return Backdraught Flap
• Manufactured from ABS Thermoplastics for Strength and Durability
• Complies with  Building Regs on Ventilation (F1)
• Adjustable Timer - 1 to 20 mins
• Single Phase Induction Motor
• Decibel Level: 45dB(A)
• Extraction Rate: 110m³/hr, 31l/sec
• Fan Speed: 1400RPM
• Maximum Pressure: 120p.a
• Maximum Operating Temperature: 40°C
• Wattage: 17W
• Height: 195mm
• Width: 258mm
• Depth: 100mm
• Guarantee: 3 Years
