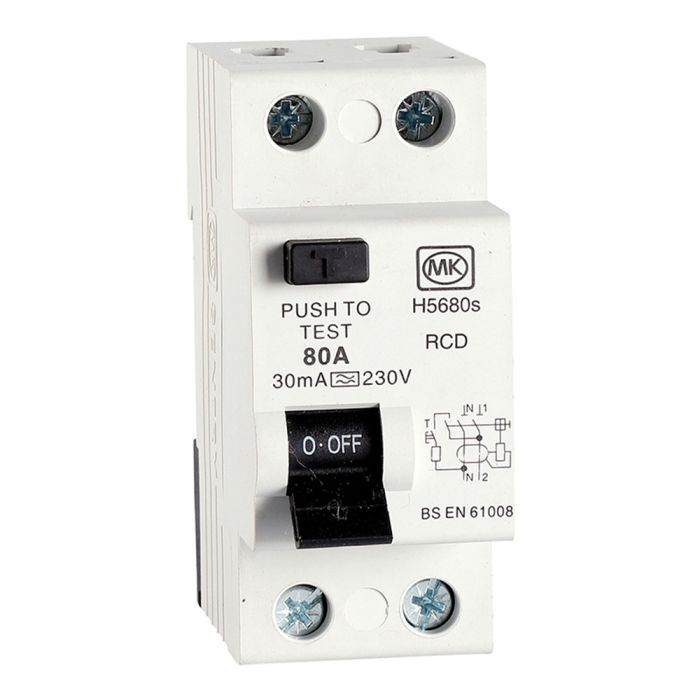

MK Sentry RCD 80A Double Pole H5680S

The MK Sentry H5680S RCD combines residual current and overcurrent protection in one compact unit, offering reliable circuit protection for residential, commercial, and light industrial applications.

This double pole device features an integrated filtering mechanism that helps guard against transient supply surges, significantly reducing the risk of nuisance tripping. The operating dolly can be securely locked in either the ON or OFF position without affecting the trip function, ensuring both safety and convenience during maintenance or isolation.

Features of MK Sentry RCD 80A Double Pole H5680S:

• Suitable for all low voltage electrical installations
• Designed for installation in each electrical switchboard
• Prevents the spread of overvoltages within the installation
• Protects connected equipment and loads from surge damage
• Modules: 2
• Current rating: 80A
• Voltage rating: 230V
• Incoming terminal capacity: 50mm²
• Tripping sensitivity/current: 30mA
• Breaking capacity: 10kA
• Height: 83mm
• Width: 36mm
• Depth: 75mm
