Rolec 7kW Type 2 EV Charging Cable 10 Meters EVCC0101

Product Code EVCC0101

reviews

Available for Delivery only, change to Fast Delivery Service

£162.88

exc VAT

£195.46 : inc VAT

£195.46

inc VAT

£162.88 : exc VAT

  • BULK SAVINGS!
  • QTY Unit Price
  • 1-2 £162.88 £195.46
  • 3+ £162.01 £194.41

Qty:

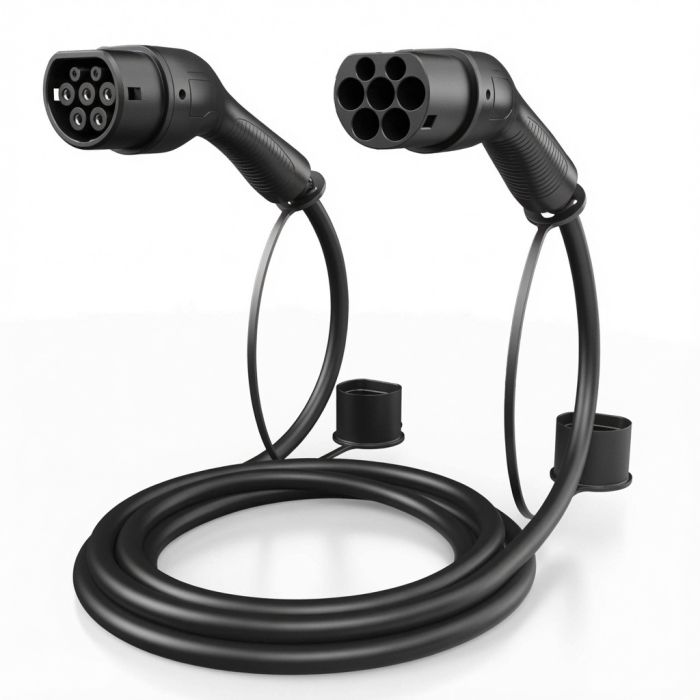

Rolec EVCC0101 10m 7.4kW Type 2 EV Charging Cable — premium plug-to-plug EV cable for reliable single-phase charging at home, work or on the road.

The Rolec EVCC0101 is a 10m Type 2 to Type 2 EV charging cable designed for electric vehicles and plug-in hybrids with a Type 2 charging inlet. Rated at 7.4kW, 32A and 250V AC, it provides dependable single-phase charging from compatible EV charge points.

Its ultra-flexible, lightweight construction makes it easy to carry, coil and store between charging sessions. The 10m length gives drivers extra reach where the charger is positioned further from the vehicle, helping reduce parking restrictions on driveways, workplace bays and public charging points.

Built for daily use, the EVCC0101 features ergonomic plug handles, strain relief and silver-plated contacts for strong conductivity. The IP65 and IK10 rated construction provides all-weather protection and excellent impact resistance, including 1m drop and 2 tonne vehicle run-over resistance.

Tested to recognised safety and compliance standards, this Rolec Type 2 EV cable is TÜV Rheinland, CE, UKCA, CB, RoHS and WEEE marked, making it a robust choice for installers, landlords, workplaces and EV drivers who need a reliable spare or replacement charging cable.

Key Features of the Rolec EVCC0101 10m 7.4kW Type 2 EV Charging Cable Include:

  • 10m Cable Length For Extra Charging Reach At Home, Work Or Public Charge Points
  • Type 2 To Type 2 Plug-To-Plug Connection Suitable For Virtually All EVs And PHEVs With A Type 2 Inlet
  • 7.4kW Single-Phase Charging Rated At 32A And 250V AC
  • Ultra-Flexible And Lightweight Cable Design For Easy Carrying, Coiling And Storage
  • Ergonomic Plug Handles For Comfortable Everyday Use
  • Silver-Plated Contacts To Support High Conductivity And Reliable Charging Performance
  • IP65 Rated Protection For All-Weather And Dust-Resistant Charging
  • IK10 Rated Impact Resistance With 1m Drop And 2 Tonne Vehicle Run-Over Resistance
  • Operating Temperature From -35°C To +50°C For Year-Round Use
  • Weight: 3.6kg
  • Warranty: 2 Years

View All Rolec EV Chargers

View All EV Chargers

If you need some help, would like to take advantage of our Price Promise or perhaps have a large order to place give our team of professionals a call on 0203 994 5470, drop us an email at sales@electricpoint.com or use our Contact Form.

Product Downloads Rolec EV Charging Cables Datasheet
Model Number: EVCC0101
Brand: Rolec
Range: Premium EV Charging Cables
Product Type: EV Charging Cable
Connection Type: Type 2 To Type 2 Plug-To-Plug Cable
Power Rating: 7.4kW
Rated Current: 32A
Rated Voltage: 250V AC
Phase: Single Phase
Cable Length: 10m
Ingress Protection: IP65 With Cap Fitted / When Mated
Impact Protection: IK10
Drop Resistance: 1m
Run-Over Resistance: 2 Tonne Vehicle Run-Over Pressure
Flame Retardancy: UL94-V0
Operating Temperature: -35°C To +50°C
Withstand Voltage: 2000V 1min
Contact Resistance: 0.5mΩ Max.
Connector Insertion / Extraction Force: ≥100N
Insulation Resistance: ≥100MΩ (DC 500V)
Plug And Connector Resistance: 220Ω (±3%) ≥1.0W
Plug Material: Polycarbonate (PC)
Contact Material: Silver Plated Terminals 5um Thickness
Core Material: Copper Compliant With EN 60228 Class 5
Core Size: 3G6mm² + 2x0.5mm² Pilot Core
Flex Material: TMPU/EVM-1(Z5) Moulded Thermoplastic Polyurethane Jacket
Colour: Black
Weight: 3.6kg
Compliance: EN IEC 62196-1, EN IEC 62196-2, EN 17186, EN 60228 Class 5, EN 50620
Certification Markings: TÜV Rheinland, CE, CB, UKCA, RoHS, WEEE
Warranty: 2 Years
