Rolec 7kW Type 2 EV Charging Cable 5 Meters EVCC0051

Product Code EVCC0051

reviews

Available for Delivery only, change to Fast Delivery Service

£162.88

exc VAT

£195.45 : inc VAT

£195.45

inc VAT

£162.88 : exc VAT

  • BULK SAVINGS!
  • QTY Unit Price
  • 1-2 £162.88 £195.45
  • 3+ £160.29 £192.35

Qty:

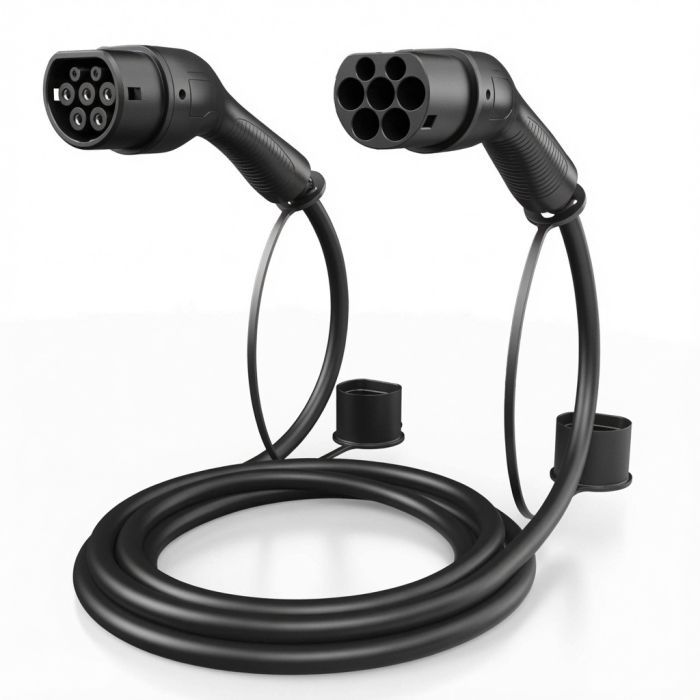

Rolec EVCC0051 5m 7.4kW Type 2 EV Charging Cable — premium plug-to-plug EV cable for reliable single-phase charging at home, work or on the go.

The Rolec EVCC0051 is a 5m Type 2 to Type 2 EV charging cable designed for electric vehicles and plug-in hybrids with a Type 2 charging inlet. Rated at 7.4kW, 32A and 250V AC, it provides dependable single-phase charging from compatible EV charge points.

Flexible Everyday Charging

The 5m cable length is ideal for home driveways, workplace charging bays and public charge points where the vehicle is parked close to the charger. Its ultra-flexible, lightweight design makes it easy to carry, coil and store after each charging session.

Durable All-Weather Design

Built for daily use, this Rolec EV cable features ergonomic plug handles, cable strain relief and silver-plated contacts for reliable conductivity. The IP65 rated construction helps protect against dust and weather, while the IK10 impact rating provides extra confidence in busy domestic and commercial environments.

Tested For Safe, Reliable Performance

The EVCC0051 is tested to recognised EV charging standards and carries TÜV Rheinland, CE, CB, UKCA, RoHS and WEEE certification markings. With a 2-year warranty, it is a practical replacement or spare charging cable for EV drivers, installers, landlords and workplace charging sites.

Key Features of the Rolec EVCC0051 5m 7.4kW Type 2 EV Charging Cable Include:

  • 5m Cable Length For Convenient Home, Workplace And Public EV Charging
  • Type 2 To Type 2 Plug-To-Plug Connection Suitable For Virtually All EVs And PHEVs With A Type 2 Inlet
  • 7.4kW Single-Phase Charging Rated At 32A And 250V AC
  • Ultra-Flexible And Lightweight Cable Design For Easy Carrying, Coiling And Storage
  • Ergonomic Plug Handles For Comfortable Everyday Use
  • Silver-Plated Contacts To Support High Conductivity And Reliable Charging Performance
  • Precision-Engineered For Up To 10,000 Mating Cycles
  • IP65 Rated Protection For All-Weather And Dust-Resistant Charging
  • IK10 Rated Impact Resistance With 1m Drop And 2 Tonne Vehicle Run-Over Resistance
  • Operating Temperature From -35°C To +50°C For Year-Round Use
  • Weight: 2.2kg
  • Warranty: 2 Years

View All Rolec EV Chargers

View All EV Chargers

If you need some help, would like to take advantage of our Price Promise or perhaps have a large order to place give our team of professionals a call on 0203 994 5470, drop us an email at sales@electricpoint.com or use our Contact Form.

Product Downloads Rolec EV Charging Cables Datasheet
Model Number: EVCC0051
Brand: Rolec
Range: Premium EV Charging Cables
Product Type: EV Charging Cable
Connection Type: Type 2 To Type 2 Plug-To-Plug Cable
Power Rating: 7.4kW
Rated Current: 32A
Rated Voltage: 250V AC
Phase: Single Phase
Cable Length: 5m
Ingress Protection: IP65 With Cap Fitted / When Mated
Impact Protection: IK10
Drop Resistance: 1m
Run-Over Resistance: 2 Tonne Vehicle Run-Over Pressure
Flame Retardancy: UL94-V0
Operating Temperature: -35°C To +50°C
Withstand Voltage: 2000V 1min
Contact Resistance: 0.5mΩ Max.
Connector Insertion / Extraction Force: ≥100N
Insulation Resistance: ≥100MΩ (DC 500V)
Plug And Connector Resistance: 220Ω (±3%) ≥1.0W
Plug Material: Polycarbonate (PC)
Contact Material: Silver Plated Terminals 5um Thickness
Core Material: Copper Compliant With EN 60228 Class 5
Core Size: 3G6mm² + 2x0.5mm² Pilot Core
Flex Material: TMPU/EVM-1(Z5) Moulded Thermoplastic Polyurethane Jacket
Colour: Black
Weight: 2.2kg
Compliance: EN IEC 62196-1, EN IEC 62196-2, EN 17186, EN 60228 Class 5, EN 50620
Certification Markings: TÜV Rheinland, CE, CB, UKCA, RoHS, WEEE
Warranty: 2 Years
