Timeguard 24 Hour Plug-In Timer Mechanical 13A

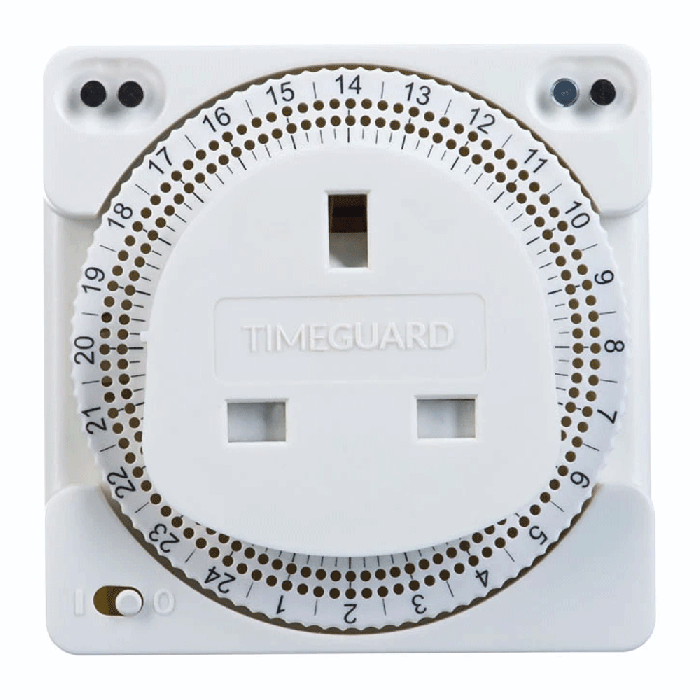

Timeguard TS800N — 24 Hour Compact Plug-In Time Controller 13A

The Timeguard TS800N is a compact 24-hour plug-in time controller designed to automate everyday appliances and reduce wasted energy. Simply plug it into a standard 13A socket, set the on/off times with the mechanical pins and let it switch loads such as heaters, lamps or small appliances automatically throughout the day.

Ideal for both domestic and light commercial use, the TS800N supports up to 24 on/off programmes per day with a minimum 30-minute switching interval. The interval can be increased in 15-minute units, giving enough flexibility to match most daily routines without overcomplicating setup for installers or end users.

A manual override lets you temporarily bypass the programme until the next change, useful for cleaning, maintenance or one-off late working without needing to reset the timer. With a 13A resistive rating and specific LED, CFL and halogen ratings, it offers a practical way to control a wide range of loads while keeping standby consumption under 1W

Key Features of Timeguard TS800N Include:

• 24 Hour Compact Plug-In Time Controller For Everyday Appliance Control
• Simple Setting Pin Layout For Fast Setup On Site
• Up To 24 On And Off Programmes Per Day For Flexible Scheduling
• 30 Minute Minimum Switching Interval With 15 Minute Step Adjustment
• Manual Override Facility Until The Next Programme Change
• 13A Resistive Switch Rating Suitable For General Socket Loads
• LED Load Rating Up To 80W And Halogen Load Rating Up To 400W
• CFL And Low Energy Load Rating Up To 60W For Modern Lighting
• Low Standby Consumption Of Less Than 1W To Reduce Energy Waste
• IP20 Rating For Indoor Use In Dry Locations
• Height: 73mm
• Width: 73mm
• Depth: 67mm
• Weight: 116g
• White Polycarbonate Body For A Durable, Discreet Finish
