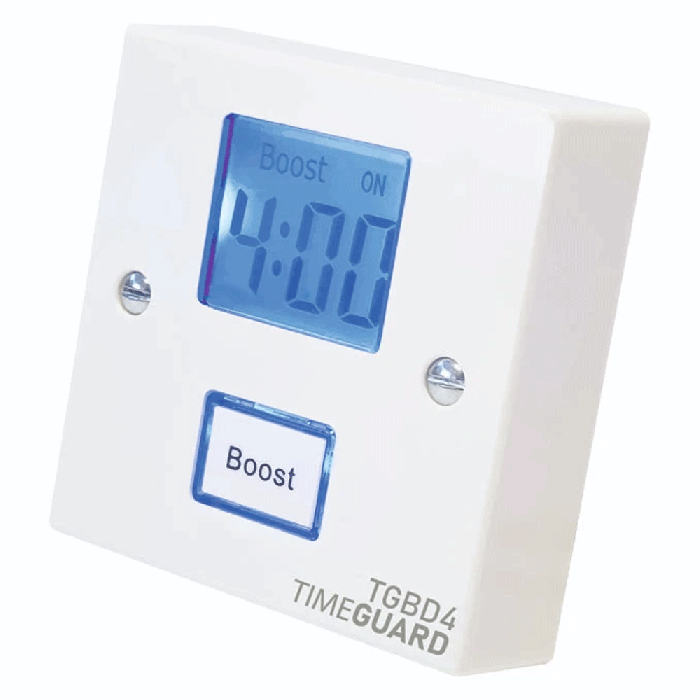

Timeguard Digital Boost Timer with Display TGBD4

Timeguard TGBD4 — 4 Hour Digital Boost Timer with Countdown Display.

The Timeguard TGBD4 Digital Boost Timer provides simple, reliable timed control for fixed appliances such as immersion heaters, towel rails, room heaters and lighting circuits. Designed as a direct replacement for a standard single gang connection unit, it offers clear visual feedback and straightforward operation, making it ideal for domestic and light commercial installations.

Clear Timed Control for Energy Management

The TGBD4 allows users to select boost periods from 30 minutes up to 4 hours in 30-minute increments. The integrated LED countdown display clearly shows the remaining on-time, helping users avoid unnecessary energy use while maintaining comfort and convenience.

Designed for Everyday Installations

With a 13A resistive rating, the TGBD4 is suitable for a wide range of fixed appliances. Simple push-button operation makes it easy for end users, while compatibility with standard flush or surface-mounted BS wall boxes ensures quick and familiar installation for electricians.

Reliable & Installer-Friendly

Manufactured with a durable polycarbonate body and Class II electrical protection, the TGBD4 operates reliably in ambient temperatures from 0°C to +45°C. A minimum back box depth of just 25mm makes it suitable for most retrofit applications.

Key Features of the Timeguard TGBD4 Digital Boost Timer Include:

• Up To 4 Hour Boost Timer For Controlled Appliance Operation
• Clear LED Countdown Display Showing Remaining On Time
• 30 Minute Switching Increments For Simple Time Selection
• 13A Rated For Immersion Heaters, Towel Rails And Room Heaters
• Easy Push Button Operation With Backlit Boost Button
• Replaces Standard Single Gang Connection Unit
• Fits Flush Or Surface Mounted BS Wall Boxes
• Height: 85mm
• Width: 85mm
• Depth: 36mm
• Warranty: Manufacturer Standard Warranty
