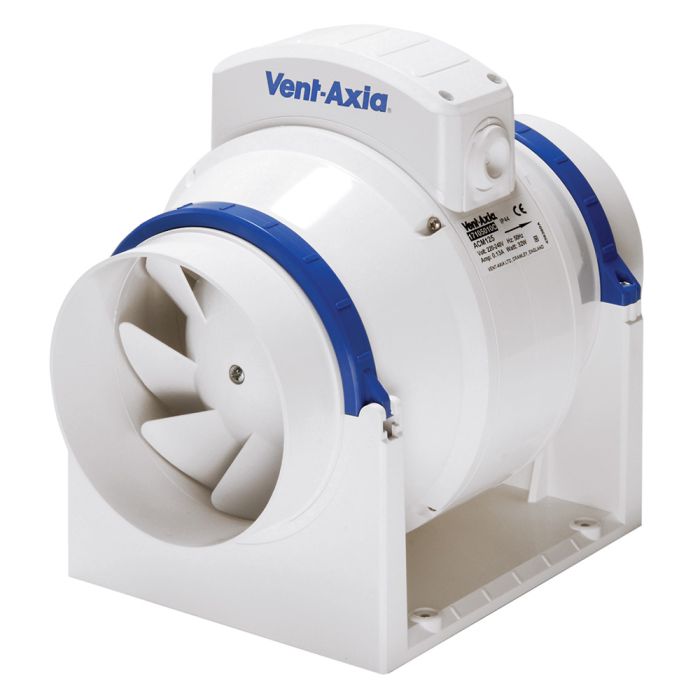

Vent Axia ACM100T 100mm Inline Fan with Timer 17104020

Product Code 17104020

reviews

Add Your Review

Available for Delivery only, change to Fast Delivery Service

Was £133.50

£126.74

exc VAT

£152.09 : inc VAT

Was £160.2

£152.09

inc VAT

£126.74 : exc VAT

Qty:

The Vent-Axia ACM125 is a versatile 125mm inline extractor fan designed to meet various ventilation needs with its three-speed motor. This powerful motor allows for customizable performance, offering three running speed options that can be adjusted during installation to match specific requirements.

Installation of the ACM125 is both simple and adaptable thanks to its compact design, featuring a removable motor core and chassis. This design ensures ease of installation in tight spaces and allows for mounting in either horizontal or vertical orientations, expanding your choice of installation sites. Whether you need a gentle airflow or a more robust extraction, the ACM125 provides flexibility to suit different applications.

Features of Vent Axia ACM100T 4 Inch Inline Fan with Timer:

  • 4 Inch (100mm) Mixed Flow Inline Extractor Fan
  • Integral Adjustable Overrun Timer - 3-25 Minutes
  • Three Speeds (selected at installation)
  • Easy Installation with Removable Motor Core and Chassis
  • Can Be Installed Horizontally and Vertically
  • Whisper Quiet Operation
  • Energy Efficient - Runs at 23W
  • Integral Standard Thermal Overload Protection
  • Wipe Clean Casing
  • Designed & Manufactured in the UK
  • IP Rating: IP44
  • Noise Level: 22dB(A)
  • Extraction Rate: 85 l/s / 288m³/hr
  • Wattage: 23W
  • Height: 220mm
  • Width: 178mm
  • Depth: 298mm
  • Warranty: 2 years

View all Vent Axia Fans

View all Inline Extractor Fans

If you need some help, would like to take advantage of our Price Promise or perhaps have a large order to place, give our team of professionals a call on 0203 994 5470, drop us an email at sales@electricpoint.com or use our Contact Form.

Product Downloads Vent Axia ACM Data Sheet
Extractor Fan Type In-Line Mixed Flow Fan
Manufacturer Part Number ACM100T
Brand Vent Axia
Range Vent Axia ACM Range
Application Domestic
Product Type In-Line Mixed Flow Fan
Key Feature Powerful Energy Efficient In-Line Fan
Mounting Ceiling Void, Loft
Bathroom Zone Zone 2
Control Type Overrun Timer
Timer Adjustment 3 to 25 Minutes
Maximum Airflow Rate 306m³ Per Hour
Maximum Airflow Rate 85L Per Second
Revolutions Per Minute 2200 RPM
Spigot Diameter 100mm or 4 Inch
Installation Type In duct
Maximum Duct Length 8 meters
Suitable Ducting Types Rigid or Flexible
Fixings Included No
Duct Included No
Wattage 20W
Voltage 220 - 240V AC
Fuse Rating Required 3A
Overload Protection Yes
Long Life Motor AC Motor
Maximum Pressure 100Pa
Sound 22 dB(A)@3m
Fan Speed Settings 3 Speed (set on installation)
IP Rating IP44
Double Insulated Yes
Earth Required No
Maximum Operating Temperature 50°C
Finish White
Height 124mm
Width 178mm
Depth 298mm
Weight 2kg
Building Code Complaint Yes
BEAB Approved No
Additional Approvals
Warranty 3 Years
