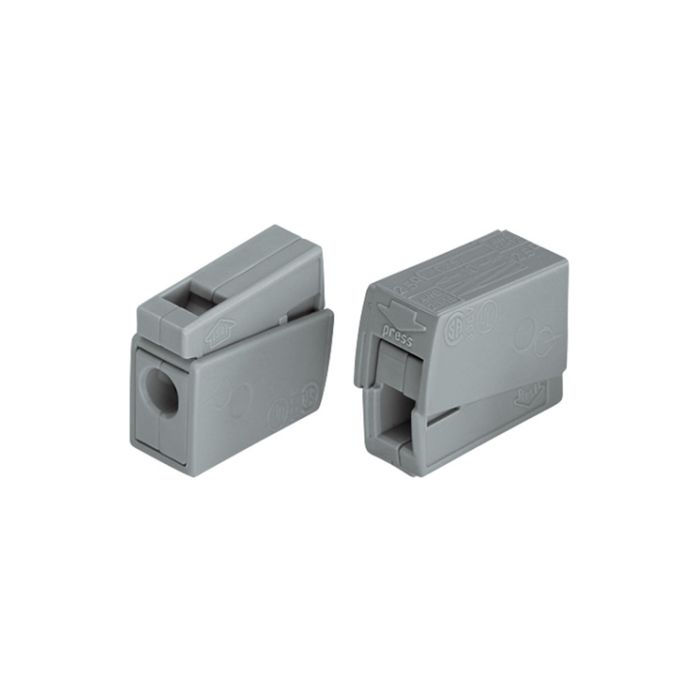

Wago 224-101 2.5mm 2-Way Lighting Connector 24A 100 Pack

Wago 224-101 terminal block suitable for 2 cable terminations, rated at 24 amps. Wago 224 series connectors are a range of versatile wire connectors which allow for connections between solid and fine stranded cable. Wago 224-101 is ideal for usage throughout applications including lighting, automated blinds, awnings, window or bathroom fans, boiler timers or tight connections of electrical devices with stranded conductors.

Wago 224 connectors provide fast an simple installation without the need for specialist tools. Combining push fit connection for a solid cable between 1-2.5mm², alongside a button operated cage clamp for usage with stranded cables between 0.5mm-2.5mm², a fantastic wiring accessory for saving time on site.

The integrated cable clamp is ideal for protection of a flex wire termination, reducing the strain placed upon the termination for long lasting installations, providing a reliable, vibration proof interconnection between solid and flex cable. When stripped to the correct length of 9-11mm all live cable elements are protected from accidental contact.

Wago 224 connectors are ideal for usage with Wagobox Light Junction Box 51257303

Features of Wago 224-101:

• 2 way lighting connector
• Sturdy cable cage clamp
• Solid conductor size: 1-2.5mm²
• Stranded or Flexible cable size: 0.5-2.5mm²
• 2 conductor connectors
• Maximum current: 24A
• Max Voltage: 400V
• Maximum isolation: 4kV
• Colour: Grey
• Height: 15.5mm
• Width: 8.5mm
• Depth: 20.5mm
• Supplied as a pack of 100
