Wago Junction Box 224 Series Each

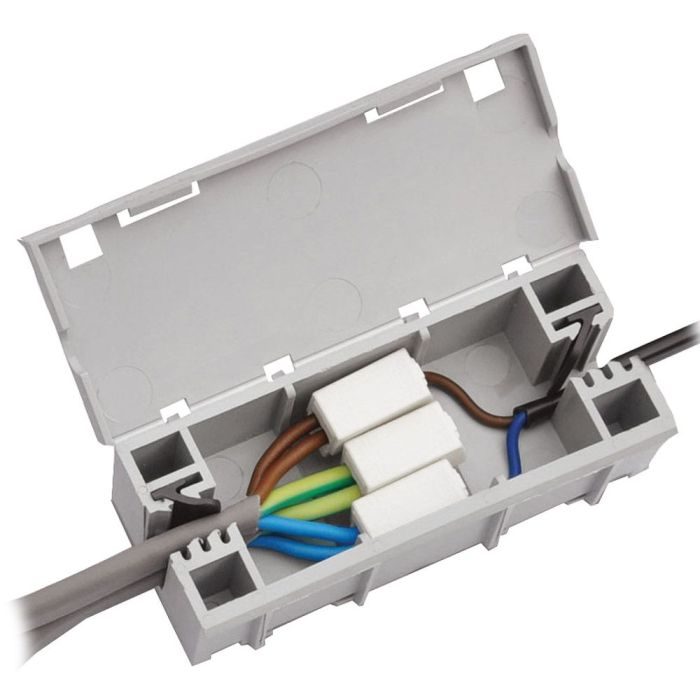

Wago 51008291 WAGOBOX Light junction box, supplied as a pack of 1. Designed for usage with Wago 224 Series Connectors, rated at 24 Amps. A Wagobox provides fast fitting with time savings of up to 75% when compared to a traditional screw terminal junction box. A simple, easy to use lighting connector, ideal for streamlining processes on site.

WAGOBOX lighting junction boxes are rated up to 400v. Integral cable clamps secure up to 3 cables between 0.5mm²-2.5mm², supporting up to 12 individual conductor connections when using Wago 224-112 connectors. Cables are cut to size and connected outside of the box, then slot into position and are secured within seconds

Robust cable grippers can be configured to secure wiring of up to 8mm in diameter.

Fits through a 49mm hole, ideal for installing standard downlights.

Features of WAGOBOX 51008291:

• For use with WAGO 224 series connectors
• Rated up to 400V, supporting conductor sizes from 0.05mm² to 2.5mm²
• Supports up to 12 individual conductor connections when using 4 x 224-112 connectors
• Mix and match WAGO 224 connectors to suit with up to 24 individual terminations
• Fits through a 49mm diameter downlight hole
• Eliminates awkward connections in small spaces
• Screwless installation
• No specialist tools required
• Easy to use and quick to fit
• Twin & Earth cable: 3x1.5mm² or 3x1mm² Twin & Earth flat solid core
• Flex cable: 1 x 0.5-1.5mm²
• Overall cable diameter: 3-8mm
• Height: 39mm
• Width: 29mm
• Depth: 95m
• Compliant with BS EN 60670-22
• Meets all requirements of the 17th Edition of BS 7671
• IP Rating: IP2X
• Product Code: 51008291
