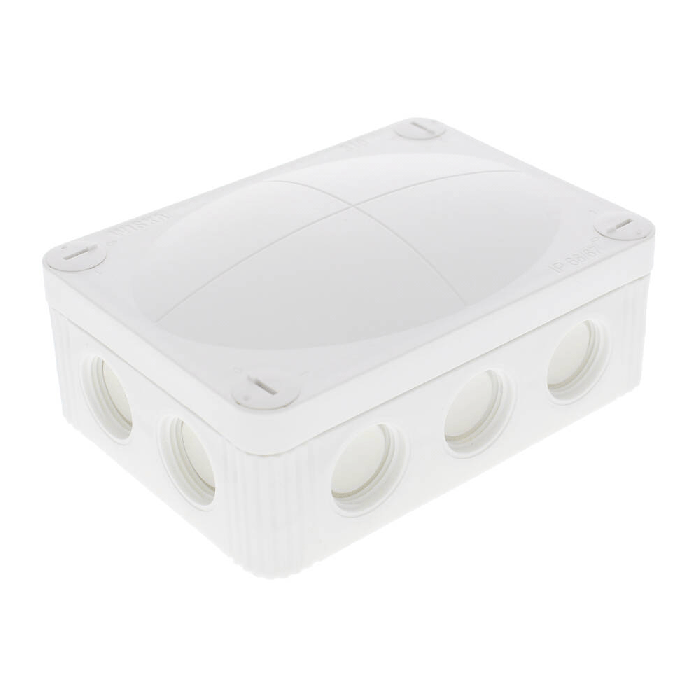

Wiska Combi 310 117x85mm Weatherproof Junction Box White

Wiska Combi 310 — IP66/IP67 polypropylene junction box, built for quick, reliable terminations in damp, dusty and outdoor locations.

Weatherproof Sealing For Demanding Installations

With IP66/IP67 protection, the COMBI 310 WH helps keep connections protected where spray, dirt and site conditions would compromise a standard box. Use the membrane entry for IP66, or achieve IP67 by using the threaded entry with a suitable ESKV cable gland.

Fast Cable Entry And Easy Fit-Off

Supplied with 10xM20 threaded membrane entries and captive cover screws, this junction box is designed to speed up first fix and reduce the risk of lost fixings. It accepts cable diameters from 3mm to 12mm, making it a flexible option across common small power and control wiring.

Safe Performance Across Wide Temperature Swings

Polypropylene construction with a TPE sealing gasket supports dependable sealing and durability, with a wide operating temperature range of -30°C to +100°C and installation temperatures from -5°C to +60°C. Glow wire tested to 750°C and rated to 400V with a 4mm² rated cross section for everyday site use.

Key Features of the Wiska Combi 310 Include:

• IP66/IP67 Protection For Reliable Outdoor And Damp-Location Terminations
• 10xM20 Threaded Membrane Entries For Faster, Cleaner Cable Installation
• IP66 Using The Membrane Entry For Quick Site Wiring
• IP67 Using The Threaded Entry With ESKV Cable Gland For Enhanced Sealing
• Captive Cover Screws Help Prevent Lost Fixings And Speed Up Maintenance
• Accepts Cable Diameters 3mm To 12mm For Flexible On-Site Use
• Polypropylene Body With TPE Sealing Gasket For Durable, Long-Lasting Sealing
• Wide Temperature Range -30°C To +100°C For Challenging Environments
• Installation Temperature Range -5°C To +60°C For Year-Round Fitting
• Glow Wire Tested To 750°C For Improved Fire Safety Performance
• Rated 400V With 4mm² Rated Cross Section For Common Site Circuits
• Fixing Via 4 Internal Openings Outside Of The Sealing Area
• Length: 117mm
• Width: 85mm
• Height: 51mm
