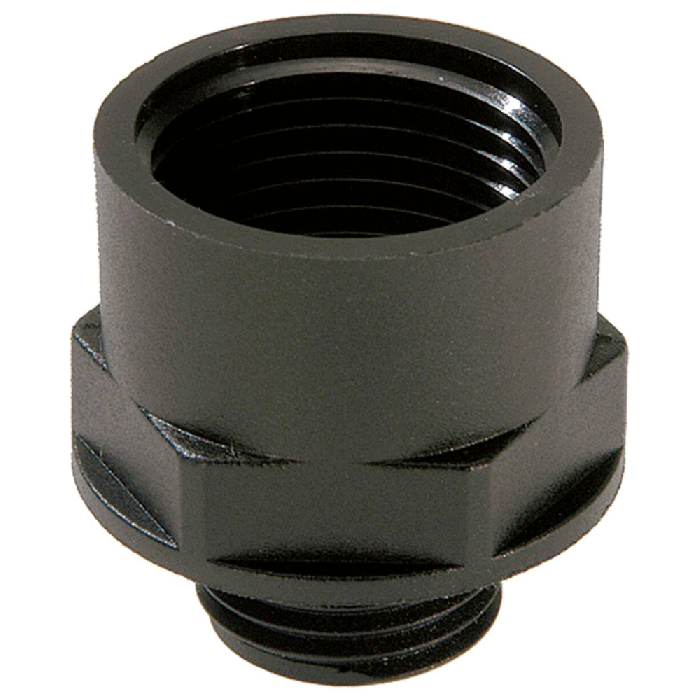

Wiska Ex-KEM M20 M25 Enlargement Adaptor IP66

Wiska EX-KEM 20/25 — Ex enlargement adaptor that converts an M20 entry to M25, with IP66/IP68 sealing for hazardous area and harsh-environment cable management.

Safe, Compliant Thread Conversion In Hazardous Areas

Designed for Ex applications with Ex eb and Ex tb protection types, and certified to IECEx and ATEX. Ideal when you need to step up an enclosure entry from M20 to M25 without compromising compliance.

High-IP Sealing For Wet And Dusty Locations

Rated IP66/IP68 (5bar, 30min) to help keep water and dust out when installed correctly. The EPDM sealing gasket supports a dependable seal in demanding outdoor and industrial installs.

Tough Polyamide Build For Long Service Life

Made from fibre-reinforced polyamide in RAL9005 for strength and durability, with a wide operating temperature range from -40°C to +75°C. Supplied with a connection thread gasket for a clean, ready-to-fit installation.

Key Features of the Wiska Ex-Kem 20/25 Include:

• M20 To M25 Ex Enlargement Adaptor For Quick Entry Conversion On Site
• Type Of Protection Ex eb, Ex tb For Hazardous Area Installations
• IECEx And ATEX Certified For Compliance-Led Projects
• IP66/IP68 (5bar, 30min) Sealing Helps Protect Enclosures Against Water And Dust Ingress
• Fibre-Reinforced Polyamide Body For Robust, Long-Life Performance
• EPDM Sealing Gasket Supports A Reliable Seal In Harsh Environments
• Outer Thread M20x1.5 With Inner Thread M25x1.5 For Common Ex Gland/Entry Sizes
• Includes Connection Thread Gasket For A Cleaner, More Secure Fit
• Operating Temperature Range -40°C To +75°C For Demanding Locations
• Screw-In Thread Length: 9mm
• Internal Thread Length: 15.5mm
• Key Width: SW29mm
• Collar Diameter: 32mm
• Total Length: 27mm
