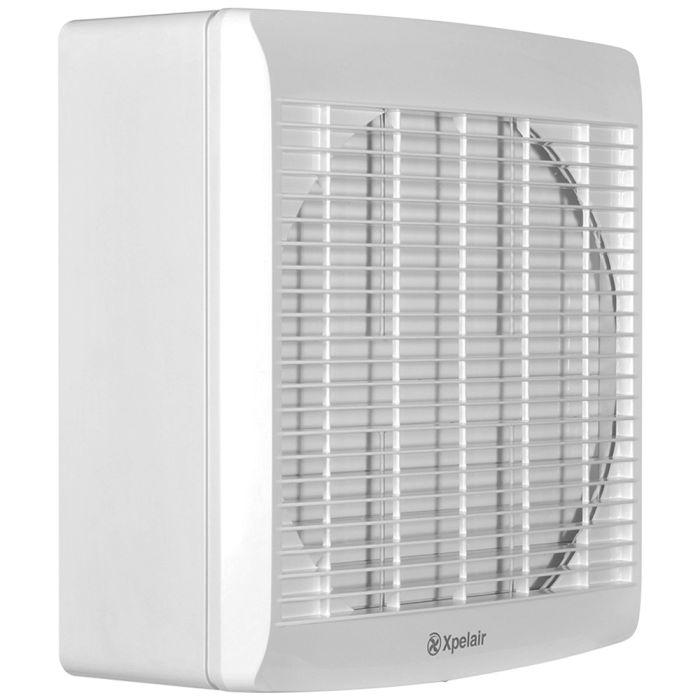

Xpelair GX12 12 Inch Window Fan Intake Extract 90012AW

Product Code GX12

reviews

Add Your Review

Available for Delivery only, change to Fast Delivery Service

£175.50

exc VAT

£210.60 : inc VAT

£210.60

inc VAT

£175.50 : exc VAT

  • BULK SAVINGS!
  • QTY Unit Price
  • 1-2 £175.50 £210.60
  • 3+ £174.58 £209.50

Qty:

Xpelair GX12 90012AW is a 12 inch axial commercial extractor fan which has been a popular choice for use in public areas such as restaurants, pubs, kitchens, offices, schools and shops for over 40 years.

GX12 is operated via remote switch and benefits from reversible air intake/extract operation whilst enclosed internal rotor motors provide consistent volume outputs. A silent electro-thermal shutter prevents external draughts. Suitable for window mounting as supplied, GX12 can be installed in single or double glazed windows with supplied longer ladder strips. Wall mounting is also possible with a wall kit (supplied separately). A tamper-proof positive plug and socket provides easy isolation for service access, whilst an integrated finger-guard and window grille ensure safe operation.

Features of Xpelair GX12 Commercial 12 Inch Window Extractor Fan include:

  • Xpelair GX12 90012AW Extractor Fan
  • Commercial Extractor Fan
  • Suitable for use in Public Areas Such as Restaurants, Pubs, Kitchens, Offices, Schools & Shops
  • Window Mounting (single or double glazed) as Supplied. Can be Wall Mounted With Wall Kit (sold separately)
  • Operated Via Remote Switch
  • Silent Electro-Thermal Shutter
  • Reversible Intake/Extract
  • Safety Finger Guard
  • Single Speed
  • Intake Performance: 772m³/hr (214l/s) / 1117m³/hr (310l/s)
  • Extract Performance: 1091m³/hr (303l/s) / 1546m³/hr (430l/s)
  • Extract Sound Pressure Performance (dBA@3M) : 50 / 55
  • Power Rating: 85W
  • Hole Diameter: 324mm
  • Height: 408mm
  • Width: 380mm
  • Depth (in room): 34mm
  • Depth (out of room): 168mm
  • Weight: 7.9kg
  • 2 Year UK Guarantee

View all Xpelair Ventilation Fans

View all Commercial Extractor Fans

If you need some help, would like to take advantage of our Price Promise or perhaps have a large order to place, give our team of professionals a call on 0203 994 5470, drop us an email at sales@electricpoint.com or use our Contact Form.

Manufacturer Part Number GX12/ 90012AW
Brand Xpelair
Range GX
Application Commercial
Product Type Commercial Extractor Fan
Mounting Wall, Windows (window kit supplied, wall kit available separately)
Number of Speeds 2
Impeller Size 12 Inch
Reversible Intake/Extract Yes
Silent Eletro-Thermal Shutter Yes
Safety Finger Guard Yes
Airflow Rate m³p/h 1091/1546 m³p/h
Airflow Rate l/s 03/429 l/s
Wattage 85W
Sound Max. 55dB(A)@3m
Finish White
Spigot Diameter 324mm
Height 408mm
Width 380mm
Depth 202mm
Warranty 2 Years
