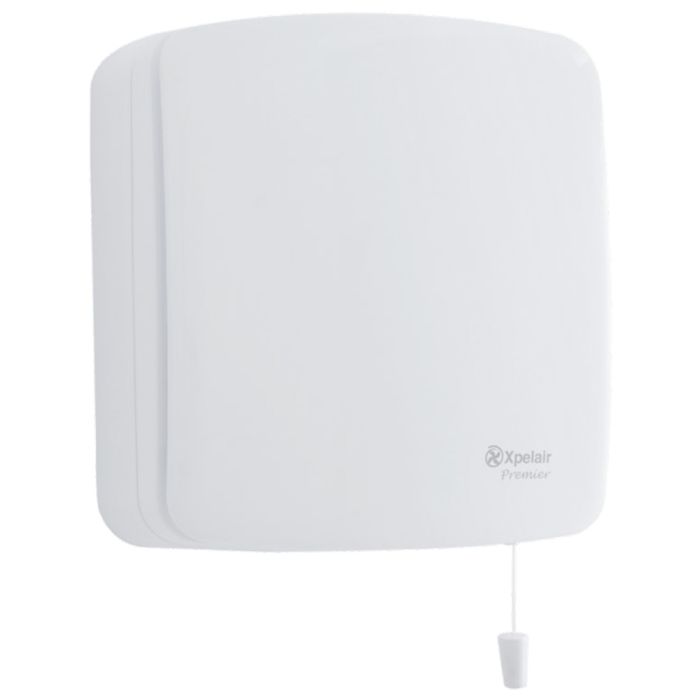

Xpelair Premier Extractor Fan CF20TX with Humidistat

Product Code CF20TX

2 reviews

Add Your Review

Available for Delivery only, change to Fast Delivery Service

£94.64

exc VAT

£113.57 : inc VAT

£113.57

inc VAT

£94.64 : exc VAT

  • BULK SAVINGS!
  • QTY Unit Price
  • 1-2 £94.64 £113.57
  • 3+ £94.45 £113.34

Qty:

Ideal for domestic applications, CF20TX (067326) is the newest in the Xpelair Premier Centrifugal Fan range.

A unique Variable Extract Performance feature allows the fan to be configured to meet each premises' specific requirements, including Intermittent (Building Regulations 1) and Continuous dMEV running (Building Regulations 3). CF20TX also boasts a room selector to ensure the correct ventilation rate is set at installation.

Featuring an adjustable timer and humidistat alongside a pullcord boost, CF20TX benefits from a low-watt brushless motor to ensure low running costs. A daily datalogger records the fan's daily usage.

The IPX5 extractor fan is finished in a sleek, gloss white casing and can be retrofitted in the place of the previous Xpelair Premier range.

Features of Xpelair Premier CF20TX Fan include:

  • Variable Extract Rate Suitable for a Range of Domestic Applications
  • Intermittent Running for Building Regulations 1, Continuous dMEV Running for Building Regulations 3
  • Room Selector Ensures Correct Extraction Rate
  • Low Watt DC Motor for Low Running Costs
  • Adjustable Timer: 30s to 30Mins
  • Adjustable Humidistat: 50% to 90% RH
  • Pullcord Boost
  • 4 Fan Speeds
  • Retrofittable to Older Xpelair Premier Range Models
  • Datalogger Records Fan's Daily Usage
  • Gloss White, Easy Clean Casing
  • Duct Size: 100mm
  • Height: 276.8mm
  • Width: 234.3mm
  • Depth: 137.4mm
  • Weight: 2kg
  • IPX5 Rated
  • Air Flow m³/hr: 76
  • Air Flow l/sec: 21
  • Sound Pressure dB(A)@3M: 37
  • Wattage: 7W
  • Warranty: 5 years

View all Xpelair Ventilation Products

View all Bathroom Extractor Fans

If you need some help, would like to take advantage of our Price Promise or perhaps have a large order to place, give our team of professionals a call on 0203 994 5470, drop us an email at sales@electricpoint.com or use our Contact Form.

Product Downloads Xpelair Premier CF20TX Data Sheet, Xpelair Premier CF20TX Manual
Extractor Fan Type Centrifugal
Manufacturer Part Number 067326
Brand Xpelair
Range Premier
Application Bathroom, Toilet, Kitchen & Other Wet Rooms
Product Type Centrifugal Extractor Fan
Key Feature Fan Can Be Configured at Installation to Run Intermittently or Continuous dMEV Running
Mounting Wall
Bathroom Zone 1 or 2
Control Type Adjustable Humidistat, Adjustable Timer & Pullcord Boost
Timer Adjustment 30 Seconds to 30 Minutes
Humidistat Adjustment 50% to 90% RH
Maximum Airflow Rate Continuous Running 30.5/34/47/76m³ Per Hour (Toilet/Bathroom/Utility/Kitchen)
Wattage Continuous Running 4/4/5/7W (Toilet/Bathroom/Utility/Kitchen)
Sound Continuous Running 21/28/27/37dB(A) (Toilet/Bathroom/Utility/Kitchen)
Maximum Airflow Rate Intermittent Running 30.5/63/124/219.56m³ Per Hour (Toilet/Bathroom/Utility/Kitchen)
WattageIntermittent Running 4/6/13/29.8W (Toilet/Bathroom/Utility/Kitchen)
Sound Intermittent Running 21/36/44/54dB(A) (Toilet/Bathroom/Utility/Kitchen)
Spigot Diameter 100mm/4 Inch
Duct Included No
Fan Speed Settings 4
IP Rating IPX5
Finish White ABS
Height 276.8mm
Width 234.3mm
Depth 137.4mm
Weight 2kg
Building Code Complaint Yes
Warranty 5 Years
