Xpelair XIMX100PLUST 100mm Inline Fan Powerful Two Speed with Timer

Xpelair XIMX100PLUST 100mm Inline Fan Powerful Two Speed with Timer

Name: Xpelair XIMX100PLUST 100mm Inline Fan Powerful Two Speed with Timer
Brand: Xpelair
SKU: XIMX100PLUST
Price: 91.50 GBP
Availability: InStock

Product Code XIMX100 Plus T

0 reviews

Available for Delivery only, change to Fast Delivery Service

£76.25

exc VAT

£91.50 : inc VAT

£91.50

inc VAT

£76.25 : exc VAT

BULK SAVINGS!
QTY Unit Price
1-2 £76.25 £91.50
3+ £75.73 £90.88

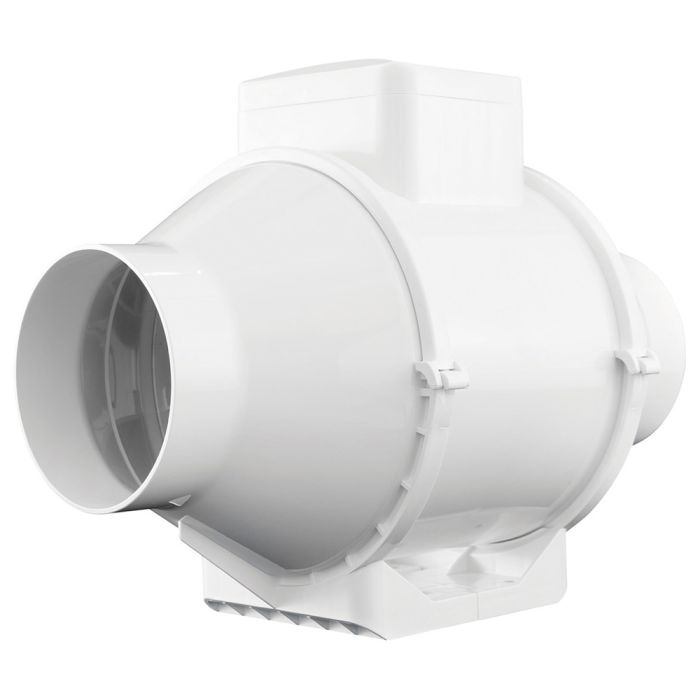

The Xpelair XIMX100PLUST Inline Fan 93081AW is your powerful solution for effective bathroom and shower room ventilation. Ideal for loft fitting, this fan offers two selectable speeds at installation, providing airflow of 180/245m³/hr.

The XIMX100PLUST goes beyond standard features. As a Timer Fan, it's activated by an external switch and continues to overrun (adjustable 2-30 mins) after the switch is turned off, ensuring optimal air circulation. The fan is designed to extract stale air and humidity, enhancing your indoor environment.

Experience hassle-free installation with the included mounting cradle. The easily accessible terminal box simplifies electrical connections, making setup and subsequent inspections straightforward.

Rest easy knowing the XIMX100PLUST meets industry standards. Compliant with Part F Building Regulations, this fan is a mark of superior quality and performance.

Features of XIMX100PLUST Inline Extractor Fan with Timer include:

Xpelair XIMX100PLUST 93081AW Inline Fan
Powerful 100mm Inline Fan with Timer
Two-speed extract (180/245m³/hr) selectable at installation
Convenient mounting cradle for easy installation
Easily accessible terminal box for simplified electrical connection
Timer functionality with adjustable overrun (2-30mins)
Complies with building regulations Part F for bathrooms
Air Flow: 180/245 m³/hr
Air Flow: 50/68 litres/sec
Decibel level: 32/27dB(A) at 3m
IP Rating: IPX4
Wattage: 23W
IPX4 Rated
Material: ABS
Height 285.00mm
Width 310.00mm
Depth 210.00mm
Weight 2.15kg
2-year warranty

View all Xpelair Ventilation Fans

View all Inline Extractor Fans

If you need some help, would like to take advantage of our Price Promise or perhaps have a large order to place, give our team of professionals a call on 0203 994 5470, drop us an email at sales@electricpoint.com or use our Contact Form.

Product Downloads	Specification Sheet

Manufacturer Part Number	93081AW
Brand	Xpelair
Range	XIMX
Product Type	In-Line Mixed Flow Extract Fan
Key Feature	High Velocity Air Extraction
Mounting	Ceiling Void, Loft
Bathroom Zone	Zones 1, 2 & 3
Control Type	Remote Switch, Adjustable Overrun Timer
Adjustable Timer	2-30 Minutes
Maximum Airflow rate m³/h	245m³ Per Hour
Maximum Airflow Rate l/s	78L Per Second
Spigot Diameter	100mm or 4 Inch
Installation Type	In duct
Cradle Included	Yes
Wattage	25W
Voltage	230 - 240V AC
Sound	max. 37 dB(A)@3m
Fan Speed Settings	2 Speed (set on installation)
IP Rating	IPX4
Maximum Operating Temperature	60°C
Finish	White
Height	285mm
Width	310mm
Depth	210mm
Weight	2.15kg
Building Code Complaint	Yes
Warranty	2 Years
