Airflow Aventa AV100T In-Line Shower Kit LED Light & Timer

Product Code 9041408


Add Your Review

Available for Delivery only, change to Fast Delivery Service


exc VAT

£88.61 : inc VAT


inc VAT

£73.84 : exc VAT

  • QTY Unit Price
  • 1-2 £73.84 £88.61
  • 3+ £71.17 £85.40



Aventa AV100T shower kit with LED light and timer a compact, quiet yet powerful in-line mixed flow extractor fan suitable for installation in lofts or service shafts for remote extraction.

Offering a flow rate of up to 52l/sec, AV100T has been specifically designed to be ducted up to 6m. Benefitting from two running speeds (low/high), this in-line shower kit also features an adjustable overrun timer (2 to 30 minutes).

Less bulky than standard in-line extractor fans, AV100T comes supplied with a mounting bracket for easy installation on to joists or panels.

Key Features of Airflow AV100T with LED Light:

  • Product reference: 9041408
  • Quiet, Powerful In-Line Mixed Flow Fan
  • Adjustable Overrun Timer
  • Designed for Ducted Installations up to 6m
  • Compact Design
  • Two Speed Operation: Low/High
  • Access Motor and Impeller Without Dismantling Ducting
  • IPX4 Rated
  • Building Regulation Compliant
  • Air Flow m3/hr (low/high): 145/187
  • Air Flow l/sec (low/high): 40/52
  • Sopund Pressure dB(A)@3m (low/high): 27/36
  • Wattage (low/high): 21/33
  • Duct Diameter: 100mm
  • Voltage: 230V
  • Height: 190mm
  • Width: 246mm
  • Depth: 126mm
  • Weight: 1.5kg
  • 3 Year Warranty

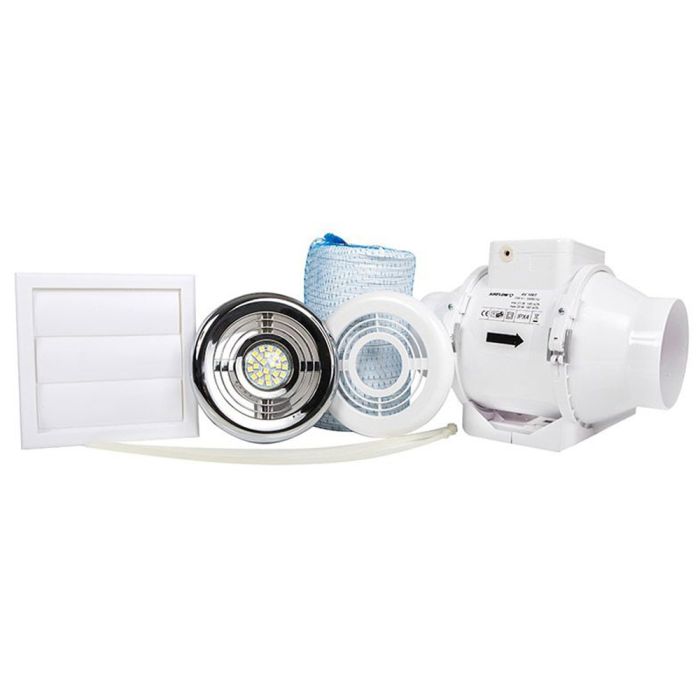

Kit Includes:

  • AV100T Fan
  • 6m Flex Duct
  • Ties
  • Halogen Light
  • Chrome Grille
  • White Grille
  • External Grille


View all Airflow Fans

View all Bathroom Extractor Fans

View all Shower Extractor Fans

View all In-Line Extractor Fans

If you just need some help, would like to take advantage of our Price Promise or perhaps have a large order to place give our team of professionals a call on 0203 994 5470, drop us an email at or use our Contact Form.

Extractor Fan Type In-Line Mixed Flow Fan Shower Fan Kit with Timer & LED Light
Manufacturer Part Number 9041408
Brand Airflow
Range Aventa In-Line Range
Application Domestic
Product Type In-Line Mixed Flow Fan Shower Fan Kit with Timer & LED Light
Key Feature High Performance In-Line Fan with Fittings for Quick Installation
Mounting Ceiling Void, Loft
Bathroom Zone Zone 2
Control Type Overrun Timer
Timer Adjustment 1 to 20 Minutes
Maximum Airflow Rate 187m³ Per Hour
Maximum Airflow Rate 52L Per Second
Revolutions Per Minute 2385 RPM
Spigot Diameter 100mm or 4 Inch
Installation Type In duct
Maximum Duct Length 6m
Suitable Ducting Types Rigid or Flexible
Fixings Included Yes
Duct Included Yes
Wattage 33W
Voltage 230V AC
Fuse Rating Required 3A
Overload Protection Yes
Long Life Motor Yes
Maximum Pressure 135Pa
Sound 36 dB(A)@3m
Fan Speed Settings 2 Speed
IP Rating IPX4
Double Insulated Yes
Earth Required No
Maximum Operating Temperature 40°C
Finish White
Height 190mm
Width 246mm
Depth 136mm
Weight 1.5kg
Building Code Complaint Yes
Additional Approvals UKCA, CE
Warranty 3 Years
