Fusebox AFDD061630B 16A AFDD RCBO B Curve Single Pole Type A

Fusebox AFDD061630B 16A AFDD RCBO B Curve Single Pole Type A

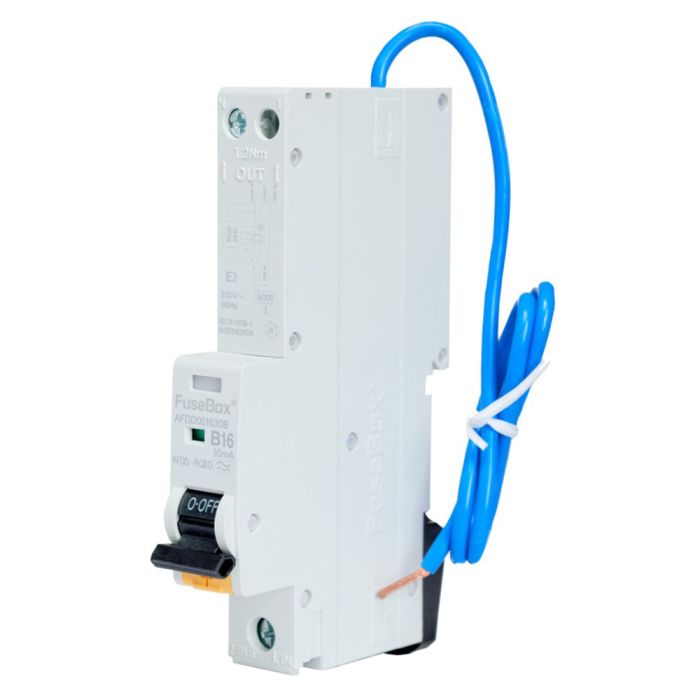

Name: Fusebox AFDD061630B 16A AFDD RCBO B Curve Single Pole Type A
Brand: Fusebox
SKU: AFDD061630B
Rating: 5 (1 reviews)

Product Code AFDD061630B

1 reviews

Available for Delivery only, change to Fast Delivery Service

£74.17

exc VAT

£89.00 : inc VAT

£89.00

inc VAT

£74.17 : exc VAT

BULK SAVINGS!
QTY Unit Price
1-2 £74.17 £89.00
3+ £73.77 £88.52

The Fusebox AFDD061630B is a high-quality 16A Fusebox AFDD RCBO designed to provide comprehensive protection for electrical circuits. This Fusebox AFDD offers superior protection against arc faults, overcurrents, and earth leakage, making it an essential component for modern electrical systems.

Arc Fault Protection

The Fusebox AFDD RCBO uses advanced microprocessor technology to detect irregularities in the electrical waveform, such as those caused by incorrect wiring, loose connections, or even rodent damage. It provides protection against both series and parallel arc faults, significantly reducing the risk of electrical fires.

Overcurrent Protection

This Fusebox AFDD effectively interrupts the electrical supply in the event of an overload, such as excessive current draw due to multiple devices operating simultaneously, or a fault within the circuit. This protects your wiring from overheating and potential fire hazards.

Residual Current Protection

The Fusebox AFDD RCBO provides protection against residual currents caused by earth leakage, which can occur due to faulty wiring or equipment. By rapidly detecting and interrupting the electrical supply, the Fusebox AFDD significantly reduces the risk of electric shock.

From March 2022, as per BS7671 18th Edition AMD2, Fusebox AFDDs are mandatory in Higher Risk Residential Buildings, Houses in Multiple Occupation, Purpose-built accommodations for students, and Care homes. They must be fitted at the origin of any single-phase AC final circuits supplying socket-outlets with a rated current not exceeding 32A.

Key Features of Fusebox AFDD061630B 16A AFDD RCBO B Curve Single Pole Type A:

Fits all Fusebox consumer units
Replaces any Fusebox RCBO where additional arc fault protection is required
Type A for AC and pulsating DC sensitivity
Protection from arc faults (series and parallel), overload, short circuit, and earth leakage
1 pole + neutral arc fault detection device (AFDD)
Rating: 16A
Trip current: 30mA
Single Module
Easy installation
Combined 30mA miniature RCBO/AFDD
Tripping Curve: B
Breaking capacity: 6kA
35mm DIN rail mounted
Terminal capacity: 10mm² - 16mm²
Number of poles: Single pole and neutral
Number of modules: 1
Voltage: 230V
Height: 116mm
Width: 17.8mm
Depth: 75.8mm
Manufacturer Number: AFDD061630B
Standards: IEC 61009-1, BS EN 62606

View all Fusebox Products

View all Consumer Units

We're committed to providing great service for our customers, please view our Reviews page to see up to date feedback from verified Electricpoint customers. All of our reviews are provided directly from Feefo's review website to ensure unbiased, impartial reviews.

If you just need some help, would like to take advantage of our Price Promise or perhaps have a large order to place, please give our team of professionals a call on 0203 994 5470, drop us an email at sales@electricpoint.com or use our Contact Form.

Product Downloads	Fusebox AFDD RCBO 16A Datasheet

Brand	FuseBox
Manufacturer Number	AFDD061630B
Product Type	AFDD RCBO 16A 30mA 1P+N Type B
Number of Poles	1P+N (Switched)
Mounting	35mm DIN Rail
Tripping Curve	B Curve: 3-5In
Rated Operational Voltage (Un/AC)	230V
Type of Supply Voltage	AC
Frequency	50-60Hz
Rated breaking capacity	6kA
Rating Current	16A
Rating Residual Operating Current	30mA
Residual Current Characteristics	Type A (AC and Pulsating DC up to 6mA)
Rated Residual Operating current	30mA
Maximum Terminal Capacity	1-16mm² IN L / 1-10mm² OUT N L
Recommended Tightening Torque	2.5Nm IN L / 1.2Nm OUT N L
Flying Neutral Cable Length	450mm
Neutral Cable CSA	2.5mm²
Overvoltage Protection	>285V
Energy Limiting Class	3
Material	PA6 (Nylon 6)
Number of mechanical operations	10.000
IP Rating	IP20
Weight	0.185kg
Depth	75.8mm
Height	116mm
Width	17.8mm
Standards	IEC 61009-1, BS EN 62606
