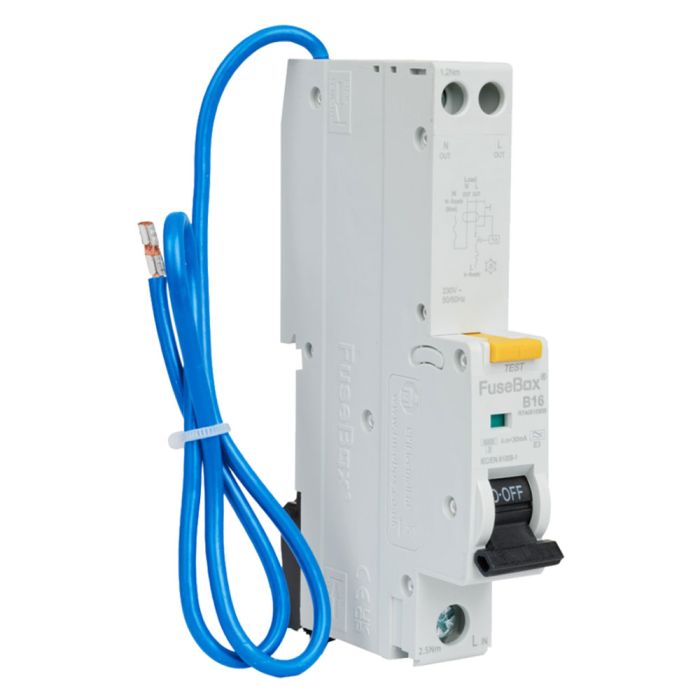

Fusebox RCBO 16A Type B Single Pole 6kA RTA061630B
Product Code RTA061630B
Available for Delivery only, change to Fast Delivery Service
£9.99
exc VAT
£11.99 : inc VAT
£11.99
inc VAT
£9.99 : exc VAT
- BULK SAVINGS!
- QTY Unit Price
- 1-2 £9.99 £11.99
- 3+ £9.91 £11.89
Fusebox RTA061630B 16A RCBO: Advanced Electrical Protection
The Fusebox RTA061630B is a high-quality 16A RCBO designed to provide comprehensive protection for your electrical circuits. This Fusebox 16 amp RCBO combines the functions of a miniature circuit breaker (MCB) and a residual current circuit breaker (RCCB) in a single compact unit.
The Fusebox RTA061630B offers superior protection against both overcurrents and earth leakage.
Overcurrent Protection: The Fusebox 16A RCBO effectively interrupts the electrical supply in the event of an overload, such as excessive current draw due to multiple devices operating simultaneously, or a fault within the circuit. This protects your wiring from overheating and potential fire hazards.
Residual Current Protection: The Fusebox RTA061630B provides protection against residual currents caused by earth leakage, which can occur due to faulty wiring or equipment. By rapidly detecting and interrupting the electrical supply, the RCBO significantly reduces the risk of electric shock.
Key Features of Fusebox RTA061630B Type A 16A RCBO:
- Type A RCBO
- Protects Against both AC and Pulsating DC Currents
- 16A - Suitable for a Wide Range of Household Applications
- Rated Residual Operating Current: 30mA
- Single Pole
- B Curve - Offers Precise Tripping Characteristics for Reliable Performance
- 6kA Short Circuit Capacity
- Voltage: 230V
- Frequency: 50/60Hz
- Rated Current: 6, 10, 16, 20, 25, 32, 40, 50ln
- Tripping Characteristics: B Curve 3-5ln
- Residual Current Characteristics: Type A (AC & Pulsating DC Up To 6mA)
- Mechanical Endurance: 10,000
- Maximum Terminal Capacity: 1-16mm²L In / 1-10mm² Out N L
- Recommended Tightening Torque: 2.5Nm L In / 1.2Nm Out N L
- Neutral Fly Cable Length: 450mm
- Mounting: 35mm DIN Rail
- Construction: PA6
- IP Rating: IP20
- Standards: IEC/EN 61009-1
Do you need some help, would like to take advantage of our Price Promise or perhaps have a large order to place? If you can't find what you need, we can source it for you by giving our team of professionals a call on 0203 994 5470, drop us an email at sales@electricpoint.com or use our Contact Form.
| Product Downloads | Fusebox RCBO 6kA B Curve Data Sheet, Fusebox RCBO 6kA B Curve Manual |
|---|---|
| Model Number | RTA061630B |
| Brand | Fusebox |
| Range | RCBOs |
| Product Type | RCBO |
| Rating | 16A |
| Mounting | 35mm DIN Rail |
| Number of Poles | 1 |
| Voltage | 230V |
| Frequency | 50/60Hz |
| Rated Breaking Capacity | 6000A (6kA) |
| Rated Current | 6, 10, 16, 20, 25, 32, 40, 50ln |
| Tripping Characteristics | B Curve: 3-5ln |
| Residual Current Characteristics | Type A (AC & Pulsating DC Up To 6mA) |
| Rated Residual Operating Current | 0.03 | Mechanical Endurance | 10,000 |
| Maximum Terminal Capacity | 1-16mm²L In / 1-10mm² Out N L |
| Recommended Tightening Torque | 2.5Nm L In / 1.2Nm Out N L |
| Neutral Fly Cable Length | 45mm |
| Material | PA6 |
| IP Rating | IP20 |
| 18th Edition Compliant | Yes |
| Standards | IEC/EN 61009-1 |
