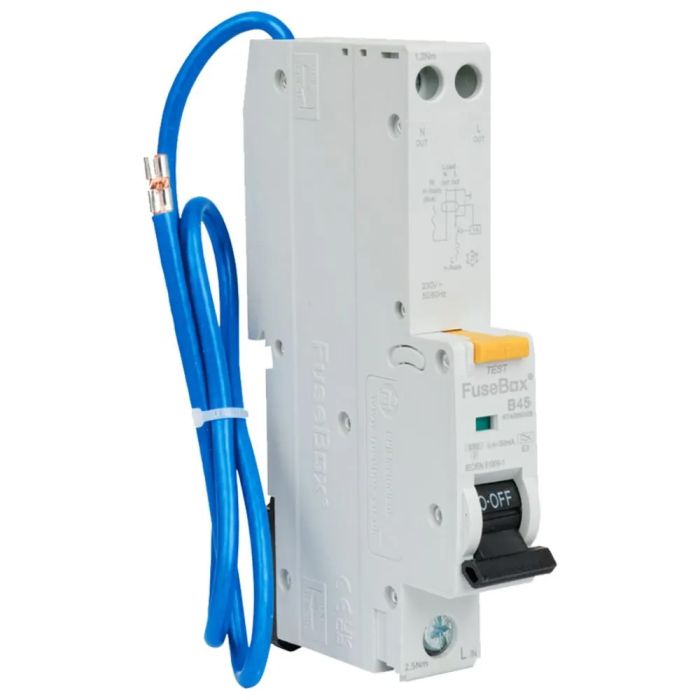

Fusebox RCBO 45A B Curve RTA064530B

Product Code RTA064530B

reviews

Add Your Review

Available for Delivery only, change to Fast Delivery Service

£9.50

exc VAT

£11.40 : inc VAT

£11.40

inc VAT

£9.50 : exc VAT

  • BULK SAVINGS!
  • QTY Unit Price
  • 1-2 £9.50 £11.40
  • 3+ £9.42 £11.30

Qty:

Fusebox RTA064530B 45A RCBO B curve with 6kA short circuit capacity. Single Pole Type A RCBO for detection of AC and pulsating DC currents

Key Features of Fusebox RTA064530B Type A 45A RCBO:

  • Type A RCBO
  • 45A
  • Rated Residual Operating Current: 30mA
  • Single Pole
  • B Curve
  • 6kA Short Circuit Capacity
  • Voltage: 230V
  • Frequency: 50/60Hz
  • Rated Current: 6, 10, 16, 20, 25, 32, 40, 50ln
  • Tripping Characteristics: B Curve 3-5ln
  • Residual Current Characteristics: Type A (AC & Pulsating DC Up To 6mA)
  • Mechanical Endurance: 10,000
  • Maximum Terminal Capacity: 1-16mm²L In / 1-10mm² Out N L
  • Recommended Tightening Torque: 2.5Nm L In / 1.2Nm Out N L
  • Neutral Fly Cable Length: 450mm
  • Mounting: 35mm DIN Rail
  • Construction: PA6
  • IP Rating: IP20
  • Standards: IEC/EN 61009-1



View All Fusebox Products

View All RCBOs

Do you need some help, would like to take advantage of our Price Promise or perhaps have a large order to place? If you can't find what you need, we can source it for you by giving our team of professionals a call on 0203 994 5470, drop us an email at sales@electricpoint.com or use our Contact Form.

Product Downloads Fusebox RCBO 6kA B Curve Data Sheet, Fusebox RCBO 6kA B Curve Manual
Model Number RTA064530B
Brand Fusebox
Range RCBOs
Product Type RCBO
Rating 45A
Mounting 35mm DIN Rail
Number of Poles 1
Voltage 230V
Frequency 50/60Hz
Rated Breaking Capacity 6000A (6kA)
Rated Current 6, 10, 16, 20, 25, 32, 40, 50ln
Tripping Characteristics B Curve: 3-5ln
Residual Current Characteristics Type A (AC & Pulsating DC Up To 6mA)
Rated Residual Operating Current 0.03
Mechanical Endurance 10,000
Maximum Terminal Capacity 1-16mm²L In / 1-10mm² Out N L
Recommended Tightening Torque 2.5Nm L In / 1.2Nm Out N L
Neutral Fly Cable Length 45mm
Material PA6
IP Rating IP20
18th Edition Compliant Yes
Standards IEC/EN 61009-1
