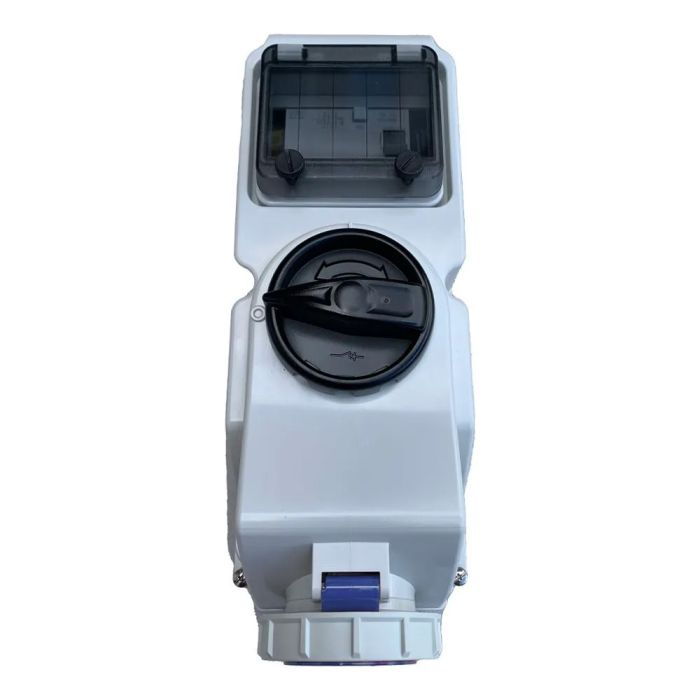

Garo Switched Interlocked Socket 3 Pin 16A 220V IP67

Introducing the Garo Switched Interlocked Socket 3 Pin 16A 220V IP67—a robust and highly reliable solution for industrial and commercial power distribution needs. Engineered with precision, this combination unit is built to deliver seamless electrical performance in demanding environments. With a rated current range from 16A to 100A and a voltage rating of 230/400V AC, it accommodates a wide range of electrical applications while ensuring uncompromising safety and functionality.

Designed for versatility, this watertight socket outlet features a mechanical interlock, top and bottom cable connections, and a DIN-rail with a hinged window that supports up to 5 modules for added flexibility. It offers exceptional protection with an IP67 rating, safeguarding against dust and powerful water jets—ideal for harsh conditions. The socket supports various cable sizes, including 1–2.5 mm² for stranded and 1.5–4 mm² for solid cables. Certified under EN 61008 and IEC 61008 standards, it provides dependable fault protection with rated residual currents of 30/100/300/500mA, making it a critical addition to any secure electrical setup.

Key features of Garo Switched interlocked Socket 3 Pin 16A 220V IP67 URBBV216-6SCR:

• Rated current: 16 - 100A
• Rated voltage: 230/400 V AC
• Number of ways: 3
• Module space for components: 5
• Combination unit with socket outlet in watertight design.
• Cable Connection possible from top and bottom.
• Mechanical Interlock.
• DIN-rail and hinged window for 5 modules.
• Connectable Cable Size: 1-2.5 mm² and for solid cable 1.5-4 mm²
• Degree of protection IP67.
• Rated short-circuit capacity: 10kA
• Rated making and breaking capacity: 800A
• Type: A
• Isolating class: B
• Rated residual current: 30/100/300/500mA
• Standard: EN 61008, IEC 61008
