Garo Switched Interlocked Socket 3 Pin 63A 220V IP67

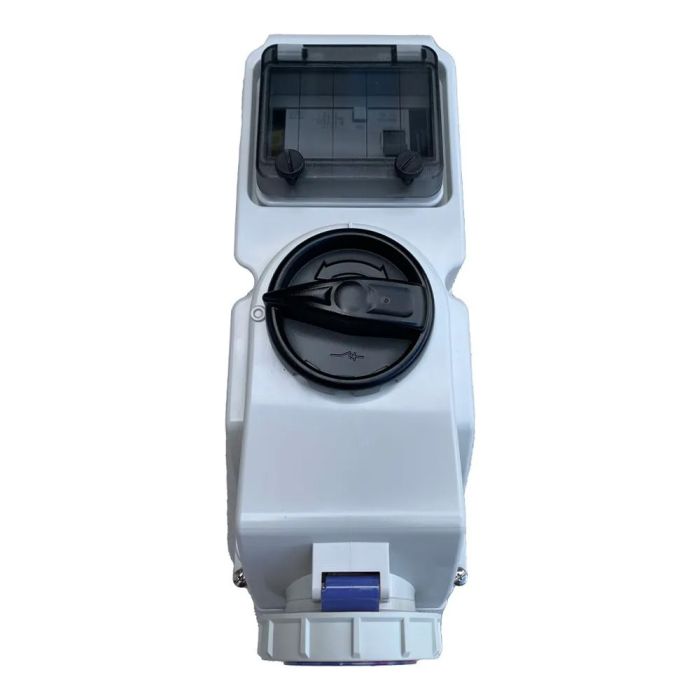

Designed for high-performance use in demanding industrial and commercial environments, the Garo Switched Interlocked Socket 3 Pin 63A 220V IP67 delivers exceptional safety, durability, and reliability. Featuring a robust mechanical interlock system and a watertight IP67-rated housing, this socket is built to withstand harsh conditions—both indoors and out.

Supporting a rated current of 16–100A and a rated voltage of 230/400V AC, this heavy-duty socket offers dependable power distribution for a wide range of applications. The three-way combination unit includes top and bottom cable entry points and five DIN-rail module spaces, neatly enclosed behind a hinged inspection window.

Ideal for new installations or system upgrades, the unit is compatible with cable sizes from 1 to 4 mm² and is certified to EN 61008 and IEC 61008 standards. With multiple residual current sensitivities (30/100/300/500mA), a rated short-circuit capacity of 10kA, and a making/breaking capacity of 800A, it ensures optimal protection and performance.

Key features of Garo Switched Interlocked Socket 3 Pin 63A 220V IP67 URBBV263-6SCR:

• Rated current: Up to 63A
• Rated voltage: 230/400 V AC
• Frequency: 50/60Hz
• Number of ways: 3
• Combination unit with socket outlet in watertight design
• Cable Connection possible from top and bottom
• Mechanical Interlock
• DIN-rail and hinged window for 5 modules
• Connectable Cable Size: 1-2.5 mm² and for solid cable 1.5-4 mm²
• Degree of protection IP67
• Rated short-circuit capacity: 10kA
• Rated making and breaking capacity: 800A
• Type: A
• Isolating class: B
• Rated residual current: 30/100/300/500mA
• Standard: EN 61008, IEC 61008
