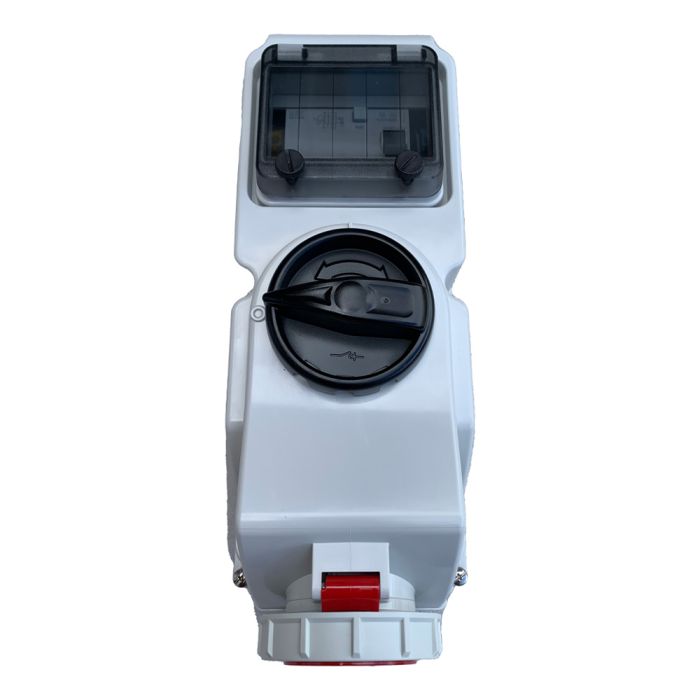

Garo Switched Interlocked Socket 4 Pin 63A 380V IP67

Designed for high-demand electrical installations, the Garo Switched Interlocked Socket 4 Pin 63A 380V IP67 combines safety, reliability and rugged performance. Suitable for industrial, commercial and outdoor use, this interlocked socket ensures secure power distribution in environments where safety is paramount.

With a rated current of up to 63A and a rated voltage of 230/415V AC at 50/60Hz, this unit includes a mechanical interlock to prevent disconnection under load—minimising electrical hazards and ensuring compliance with safety standards. Its IP67-rated watertight construction allows cable entry from both the top and bottom, offering flexible installation options.

The combination unit also features a DIN-rail with a hinged window for up to 5 modules, and supports both solid and flexible cables between 1 mm² and 4 mm². Certified to EN 61008 and IEC 61008 standards, it provides reliable protection with a rated short-circuit capacity of 10kA and selectable residual current ratings of 30, 100, 300, or 500mA.

Key features of Garo Switched Interlocked Socket 4 Pin 63A 380V IP67 URBBV363-6SCR:

• Rated current: Up to 63A
• Rated voltage: 230/415 V AC
• Frequency: 50/60Hz
• Number of ways: 4
• Combination unit with socket outlet in watertight design
• Cable Connection possible from top and bottom
• Mechanical Interlock
• DIN-rail and hinged window for 5 modules
• Connectable Cable Size: 1-2.5 mm² and for solid cable 1.5-4 mm²
• Degree of protection IP67
• Rated short-circuit capacity: 10kA
• Rated making and breaking capacity: 800A
• Type: A
• Isolating class: B
• Rated residual current: 30/100/300/500mA
• Standard: EN 61008, IEC 61008
