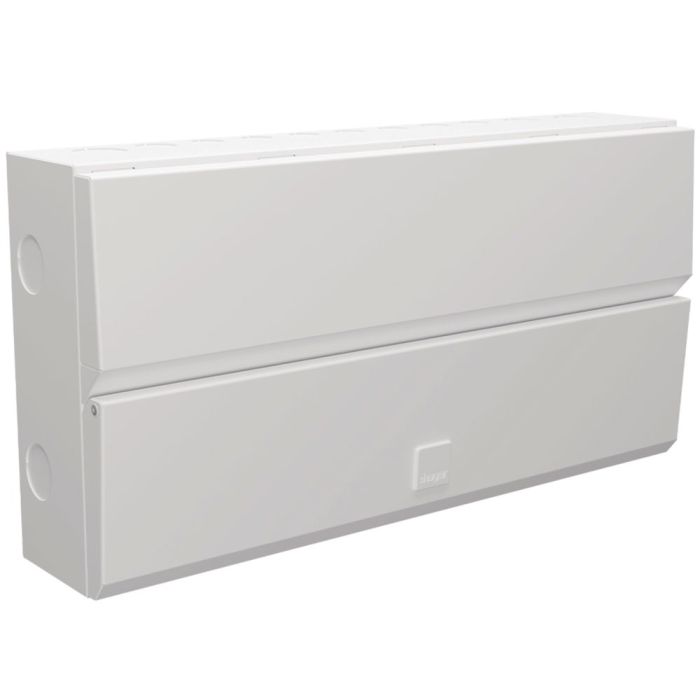

Hager 19 Way 100A Main Switch Consumer Unit with SPD VME119SPD

Hager VME119SPD — 19 Way 100A Switch Disconnector Incomer Consumer Unit with Single Module Type II SPD, Surface Mount, White.

The Hager VME119SPD is a 19-way surface-mounted consumer unit built around a 100A switch disconnector incomer and integrated single-module Type II surge protective device (SPD). With 19 modules of DIN rail capacity across a single row, it provides substantial circuit space for larger domestic or light commercial installations requiring both main isolation and built-in surge protection — without consuming an additional module position for a backup MCB. Rated at 116A and compliant with BS 7671 18th Edition Amendment 2 SPD requirements, it is a specification-ready distribution board for new build and refurbishment projects where board capacity and SPD compliance are both priorities.

19-Way Capacity for Larger Installations

Nineteen module positions across a single 472mm wide enclosure provides the circuit capacity needed for larger dwellings — 4- and 5-bedroom houses, flats with high circuit counts, or light commercial premises — without requiring a twin-row board. A 100A switch disconnector incomer provides full board isolation when required, and at 116A rated current the board handles the current demands of high-load modern installations including EV chargers, heat pumps, and electric cooking circuits.

Integrated Type II SPD — No Backup MCB Required

The VME119SPD incorporates a single-module Type II SPD within the enclosure, meeting the overvoltage protection requirement of BS 7671 18th Edition Amendment 2 (Regulation 534.4.5.1) without consuming an additional module for a dedicated backup MCB. The integrated SPD diverts transient overvoltages caused by lightning strikes and switching events to earth before they can damage connected equipment, protecting all circuits supplied from the board. Single-phase, 230–240V AC supply.

Surface Mounting — Clean, Accessible Installation

Designed for surface mounting, the VME119SPD suits utility rooms, garages, plant rooms, and commercial premises where a flush-mounted board is impractical or unnecessary. The metal enclosure in RAL 9010 white provides a professional finish, and at 2.8kg the board is straightforward to handle and position during installation. IP4X ingress protection and IK05 impact resistance provide a degree of environmental and mechanical protection in accessible locations.

Key Features of the Hager 19 Way Consumer Unit with Type II SPD VME119SPD Include:

• Integrated Single Module Type II SPD — Surge Protection Built In; Satisfies BS 7671 18th Edition AMD2 Regulation 534.4.5.1 Without Additional MCB Module
• 19-Way Single Row DIN Rail — Substantial Circuit Capacity for Larger Domestic and Light Commercial Installations
• 100A Switch Disconnector Incomer — Full Board Isolation; 116A Rated Current
• Surface Mounting — No Flush Back Box Required; Suits Utility Rooms, Garages & Commercial Premises
• IP4X Ingress Protection — Protected Against Solid Objects Greater Than 1mm
• IK05 Impact Resistance — Mechanical Protection for Accessible Installation Locations
• Single Phase — 230–240V AC
• Metal Enclosure — RAL 9010 White Powder-Coated Finish
• REACh-SVHC Free & RoHS Compliant
• Nominal Voltage: 230–240V AC
• Rated Current: 116A
• Height: 240mm
• Width: 472mm
• Depth: 102.5mm
• Weight: 2.8kg
