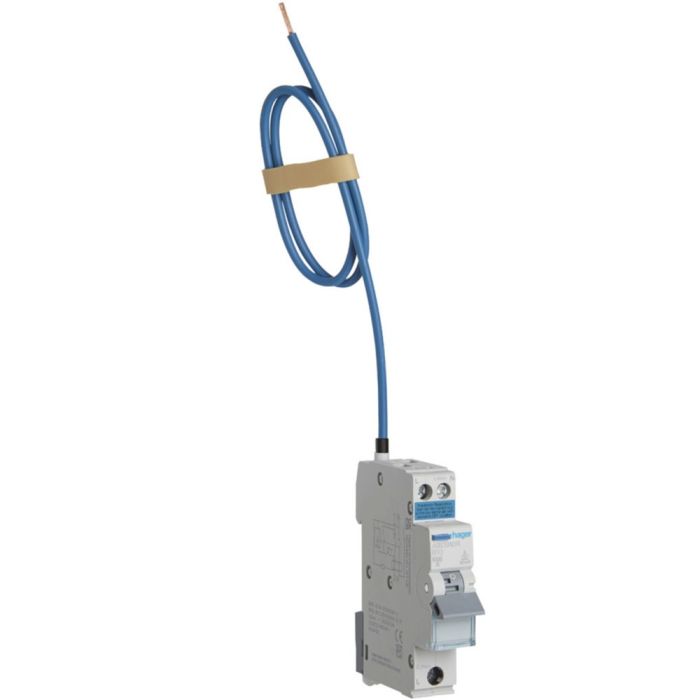

Hager RCBO 10A Type A Single Pole 6kA Bi-Directional ADB910R

Product Code ADB910R

reviews

Available for Delivery only, change to Fast Delivery Service

£12.08

exc VAT

£14.50 : inc VAT

£14.50

inc VAT

£12.08 : exc VAT

  • BULK SAVINGS!
  • QTY Unit Price
  • 1-2 £12.08 £14.50
  • 3+ £12.06 £14.47

Qty:

feefo-reviews

Hager ADB910R Bidirectional RCBO combines 10A B-curve overcurrent protection with 30mA Type A residual current protection in a compact 1P+N, single-module device. Its 6kA breaking capacity makes it a space-efficient choice for protecting individual final circuits in compatible Hager consumer units and distribution boards.

Combined Circuit Protection

The ADB910R provides overload, short-circuit and residual current protection within one device. Individual RCBO protection also allows a faulted circuit to disconnect without automatically interrupting other independently protected circuits within the installation.

Bidirectional Type A Design

Bidirectional operation supports installations where current may flow through the device in either direction. Its 30mA Type A residual current characteristic and B-curve response provide dependable protection for suitably designed final circuits.

Space-Saving Single-Module Format

Measuring only 17.7mm wide, the RCBO occupies one DIN rail module while providing 1P+N operation. This helps contractors maximise available enclosure capacity when installing multiple individually protected circuits.

Installer-Friendly Connections

The device features a top screw terminal and Hager biconnect bottom connection. It accepts flexible conductors from 1-10mm² and solid conductors from 1-16mm², supporting straightforward installation in compatible modular distribution equipment.

Key Features of the Hager Bidirectional RCBO ADB910R Include:

  • Combined Overcurrent And Residual Current Protection For Individual Final Circuits
  • Bidirectional Operation Supports Two-Way Current Flow
  • 10A Rated Current For Compatible Final Circuit Applications
  • B Curve Tripping Characteristic
  • 30mA Type A Residual Current Protection
  • 6kA Short-Circuit Breaking Capacity
  • 1P+N Configuration With 1 Protected Pole
  • Single-Module Design Conserves Consumer Unit And Distribution Board Space
  • DIN Rail Mounting For Compatible Modular Enclosures
  • Top Screw Terminal And Bottom Biconnect Connection
  • Flexible Conductor Capacity: 1-10mm²
  • Solid Conductor Capacity: 1-16mm²
  • Ingress Protection: IP20
  • Operating Temperature: -25°C To +70°C
  • Electrical Endurance: 10000 Cycles
  • Mechanical Endurance: 20000 Operations
  • Height: 85mm
  • Width: 17.7mm
  • Depth: 70mm

View All Hager RCBOs

View All Hager Circuit Protection

View All Hager Electrical

If you just need some help, would like to take advantage of our Price Promise or perhaps have a large order to place give our team of professionals a call on 0203 994 5470, drop us an email at sales@electricpoint.com or use our Contact Form.
Stock Reference: ADB910R
Brand: Hager
Product Type: Bidirectional RCBO
Protection Type: Overcurrent And Residual Current Protection
Number Of Poles: 1P+N
Number Of Protected Poles: 1
Rated Current: 10A
Tripping Curve: B Curve
Rated Residual Operating Current: 30mA
Residual Current Type: Type A
Short-Circuit Breaking Capacity: 6kA
Rated Operational Voltage: 230-240V
Maximum Operating Voltage: 264V
Rated Insulation Voltage: 440V
Rated Impulse Withstand Voltage: 4000V
Frequency: 50Hz
Overvoltage Category: Category III
Energy Limiting Class: Class 3
Total Power Loss: 4.04W
Ingress Protection: IP20
Mounting: DIN Rail
Number Of Modules: 1
Top Connection: Screw Terminal
Bottom Connection: Biconnect
Flexible Conductor Capacity: 1-10mm²
Solid Conductor Capacity: 1-16mm²
Operating Temperature: -25°C To +70°C
Storage Temperature: -25°C To +80°C
Maximum Installation Altitude: 2000m
Electrical Endurance: 10000 Cycles
Mechanical Endurance: 20000 Operations
RoHS Conformity: Yes
Height: 85mm
Width: 17.7mm
Depth: 70mm
EAN: 3250610087589
Pack Quantity: 1

Recommended Products

Image for Wiska Sprint 40mm Consumer Unit Gland KEM Adp for 25mm Double Insulated
Wiska Sprint 40mm Consumer Unit Gland KEM Adp for 25mm Double Insulated

TKE/P40/RD

£3.83 £4.60

£4.60: inc VAT £3.83: exc VAT

Qty:

Image for Hager 14 Way RCBO Consumer Unit with Main Switch VML114RK
Hager 14 Way RCBO Consumer Unit with Main Switch VML114RK

VML114RK

£48.13 £57.75

£57.75: inc VAT £48.13: exc VAT

Qty:

Image for Hager 10 Way RCBO Consumer Unit with Main Switch VML110RK
Hager 10 Way RCBO Consumer Unit with Main Switch VML110RK

VML110RK

£39.38 £47.25

£47.25: inc VAT £39.38: exc VAT

Qty:

Image for 6181Y Flexible Meter Tail 2M Pack 2x 25mm Blue Brown 16mm Earth Cable
6181Y Flexible Meter Tail 2M Pack 2x 25mm Blue Brown 16mm Earth Cable

FLEXITAIL252M

£26.04 £31.25

£31.25: inc VAT £26.04: exc VAT

Qty:

Image for Hager 6 Way RCBO Consumer Unit with Main Switch VML106RK
Hager 6 Way RCBO Consumer Unit with Main Switch VML106RK

VML106RK

£33.50 £40.20

£40.20: inc VAT £33.50: exc VAT

Qty:

Image for Hager 6 Way RCBO Consumer Unit with Main Switch VML106
Hager 6 Way RCBO Consumer Unit with Main Switch VML106

VML106

£35.63 £42.75

£42.75: inc VAT £35.63: exc VAT

Qty:

Image for Marshall Tufflex White Plastic Adaptable Box 50x75x75mm
Marshall Tufflex White Plastic Adaptable Box 50x75x75mm

MTAB75A

£8.93 £10.71

£10.71: inc VAT £8.93: exc VAT

Qty:

Image for Hager MTN110 MCB 10A SP Type B
Hager MTN110 MCB 10A SP Type B

MTN110

£2.32 £2.78

£2.78: inc VAT £2.32: exc VAT

Qty:

Image for Hager MTN120 MCB 20A SP Type B
Hager MTN120 MCB 20A SP Type B

MTN120

£2.32 £2.78

£2.78: inc VAT £2.32: exc VAT

Qty:

Image for Hager JK01B SP Busbar Blank
Hager JK01B SP Busbar Blank

JK01B

£1.24 £1.49

£1.49: inc VAT £1.24: exc VAT

Qty:

Image for Hager VMES02SPD Consumer Unit Type 2 Surge Protection Modular Kit
Hager VMES02SPD Consumer Unit Type 2 Surge Protection Modular Kit

VMES02SPD

£24.95 £29.94

£29.94: inc VAT £24.95: exc VAT

Qty:

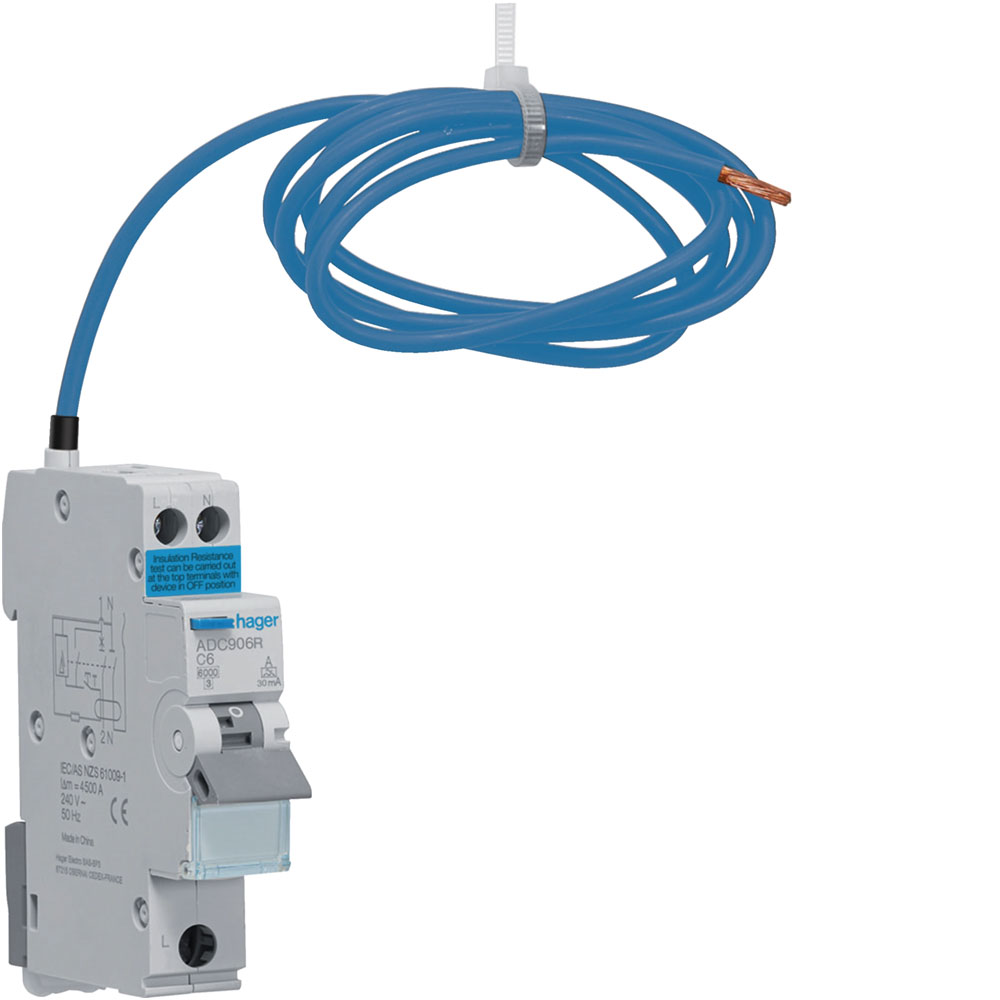

Image for Hager RCBO 6A Type A Single Pole 6kA Bi-Directional ADB906R
Hager RCBO 6A Type A Single Pole 6kA Bi-Directional ADB906R

ADB906R

£12.08 £14.50

£14.50: inc VAT £12.08: exc VAT

Qty:

Image for Hager RCBO 16A Type A Single Pole 6kA Bi-Directional ADB916R
Hager RCBO 16A Type A Single Pole 6kA Bi-Directional ADB916R

ADB916R

£12.08 £14.50

£14.50: inc VAT £12.08: exc VAT

Qty:

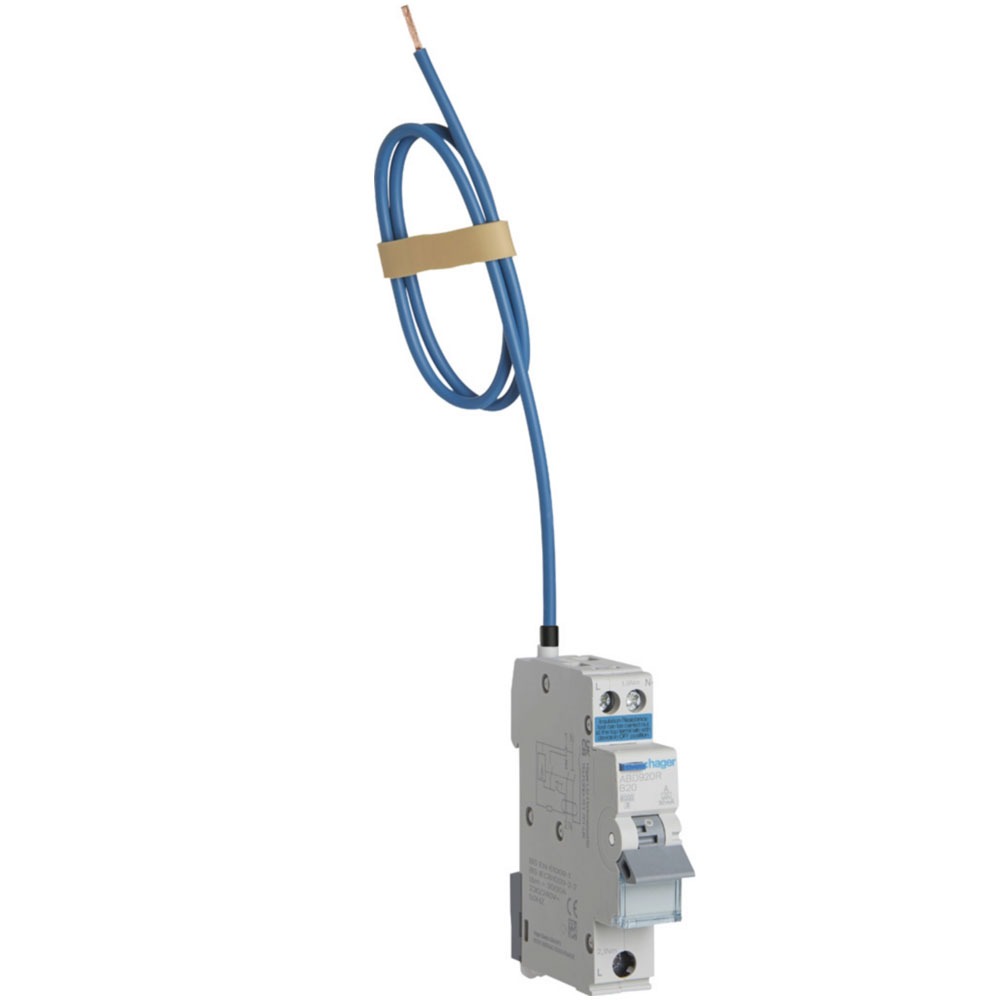

Image for Hager RCBO 20A Type A Single Pole 6kA Bi-Directional ADB920R
Hager RCBO 20A Type A Single Pole 6kA Bi-Directional ADB920R

ADB920R

£12.08 £14.50

£14.50: inc VAT £12.08: exc VAT

Qty:

Image for Hager RCBO 25A Type A Single Pole 6kA Bi-Directional ADB925R
Hager RCBO 25A Type A Single Pole 6kA Bi-Directional ADB925R

ADB925R

£12.08 £14.50

£14.50: inc VAT £12.08: exc VAT

Qty:

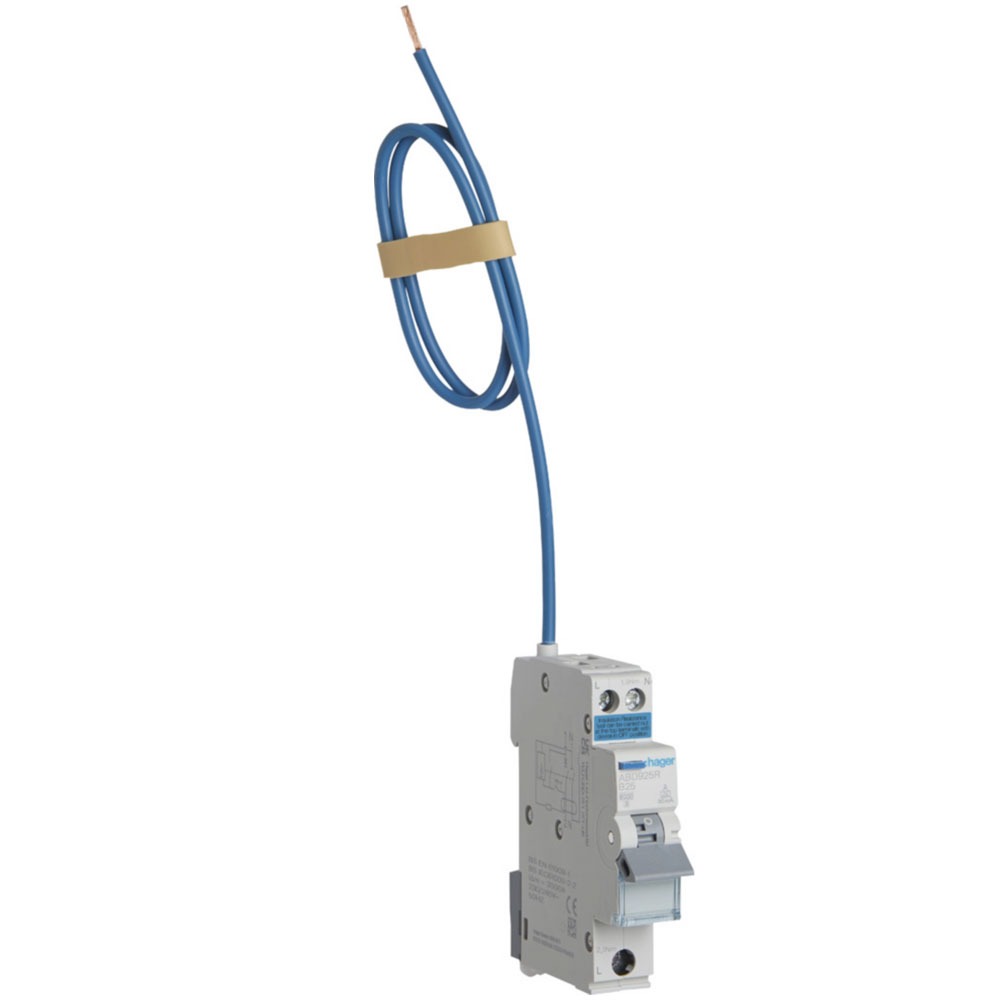

Image for Hager RCBO 32A Type A Single Pole 6kA Bi-Directional ADB932R
