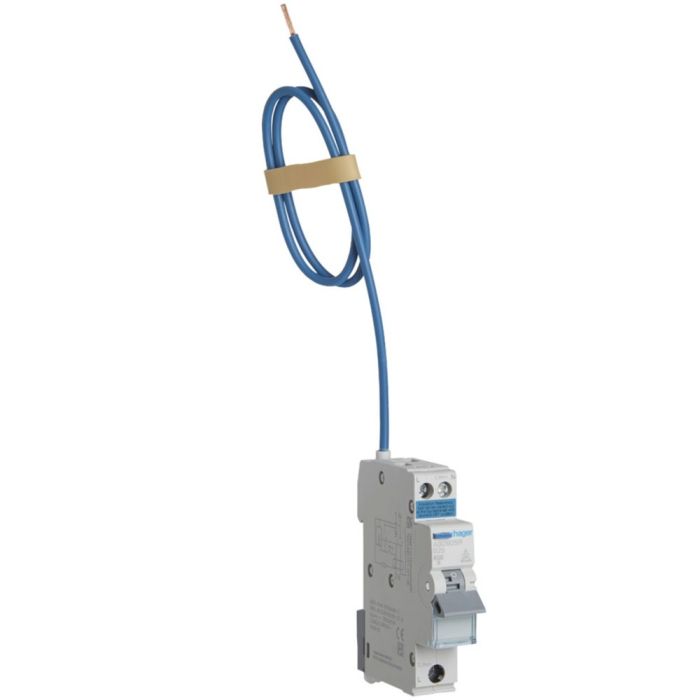

Hager RCBO 32A Type A Single Pole 6kA Bi-Directional ADB932R

Product Code ADB932R

reviews

Available for Delivery only, change to Fast Delivery Service

£12.08

exc VAT

£14.50 : inc VAT

£14.50

inc VAT

£12.08 : exc VAT

  • BULK SAVINGS!
  • QTY Unit Price
  • 1-2 £12.08 £14.50
  • 3+ £12.06 £14.47

Qty:

feefo-reviews

Hager ADB932R Bidirectional RCBO combines 32A B-curve overcurrent protection with 30mA Type A residual current protection in a compact 1P+N device. With a 6kA breaking capacity and single-module design, it provides space-efficient protection for individual final circuits in compatible Hager consumer units and distribution boards.

Combined Circuit Protection

The ADB932R provides overload, short-circuit and residual current protection within one device. Individual RCBO protection allows a faulted circuit to disconnect independently, helping minimise disruption to other separately protected circuits in the installation.

Bidirectional Type A Design

Bidirectional operation supports installations where current may flow through the protective device in either direction. Its 32A rating, B-curve characteristic and 30mA Type A residual current protection make it suitable for appropriately designed modern final circuits.

Space-Saving Single-Module Format

Measuring only 17.7mm wide, the ADB932R occupies one DIN rail module while providing 1P+N operation. This compact format helps contractors maximise available capacity inside compatible consumer units and modular distribution boards.

Installer-Friendly Connections

The RCBO features a top screw terminal and Hager Biconnect bottom connection. It accepts flexible conductors from 1–10mm² and solid conductors from 1–16mm², supporting straightforward termination in compatible Hager distribution equipment.

Key Features of the Hager Bidirectional RCBO ADB932R Include:

  • Combined Overcurrent And Residual Current Protection For Individual Final Circuits
  • Bidirectional Operation Supports Two-Way Current Flow
  • 32A Rated Current For Compatible Final Circuit Applications
  • B-Curve Tripping Characteristic
  • 30mA Type A Residual Current Protection
  • 6kA Short-Circuit Breaking Capacity
  • 1P+N Configuration With 1 Protected Pole
  • Single-Module Design Conserves Consumer Unit And Distribution Board Space
  • DIN Rail Mounting For Compatible Modular Enclosures
  • Top Screw Terminal And Bottom Biconnect Connection
  • Flexible Conductor Capacity: 1–10mm²
  • Solid Conductor Capacity: 1–16mm²
  • Ingress Protection: IP20
  • Operating Temperature: -25°C To +70°C
  • Electrical Endurance: 10000 Cycles
  • Mechanical Endurance: 20000 Operations
  • Height: 85mm
  • Width: 17.7mm
  • Depth: 70mm

View All Hager RCBOs

View All Hager Circuit Protection

View All Hager Electrical

If you just need some help, would like to take advantage of our Price Promise or perhaps have a large order to place give our team of professionals a call on 0203 994 5470, drop us an email at sales@electricpoint.com or use our Contact Form.
Stock Reference: ADB932R
Brand: Hager
Product Type: Bidirectional RCBO
Protection Type: Overcurrent And Residual Current Protection
Number Of Poles: 1P+N
Number Of Protected Poles: 1
Rated Current: 32A
Tripping Curve: B-Curve
Rated Residual Operating Current: 30mA
Residual Current Type: Type A
Short-Circuit Breaking Capacity: 6kA
Rated Operational Voltage: 230–240V
Maximum Operating Voltage: 264V
Rated Insulation Voltage: 440V
Rated Impulse Withstand Voltage: 4000V
Frequency: 50Hz
Overvoltage Category: Category III
Energy Limiting Class: Class 3
Total Power Loss: 12.48W
Ingress Protection: IP20
Mounting: DIN Rail
Number Of Modules: 1
Top Connection: Screw Terminal
Bottom Connection: Biconnect
Flexible Conductor Capacity: 1–10mm²
Solid Conductor Capacity: 1–16mm²
Operating Temperature: -25°C To +70°C
Storage Temperature: -25°C To +80°C
Maximum Installation Altitude: 2000m
Electrical Endurance: 10000 Cycles
Mechanical Endurance: 20000 Operations
RoHS Conformity: Yes
Height: 85mm
Width: 17.7mm
Depth: 70mm
EAN: 3250610087626
Pack Quantity: 1
