Hager RCBO 6A Type A Single Pole 6kA Bi-Directional ADB906R

Product Code ADB906R

reviews

Available for Delivery only, change to Fast Delivery Service

£12.08

exc VAT

£14.50 : inc VAT

£14.50

inc VAT

£12.08 : exc VAT

  • BULK SAVINGS!
  • QTY Unit Price
  • 1-2 £12.08 £14.50
  • 3+ £12.06 £14.47

Qty:

feefo-reviews

Model Update
ADA306G is now obsolete — replaced by the ADB906R
Hager has discontinued the ADA306G RCBO. The authorised replacement is the ADB906R — a modern bi-directional 1P+N RCBO with switched neutral. This is a direct functional upgrade and must be purchased separately.
✔ Bi-directional functionality ✔ 1P + Switched Neutral (SP+N) ✔ Reduced height for more wiring space ✔ No functional earth required ✔ Ideal for micro-generation & renewables ✔ Same 6A / 30mA Type A / 6kA rating
Buy the ADB906R Replacement →
The ADA306G (1P RCBO) has been officially discontinued by Hager. The ADB906R is the recommended successor with improved features including bi-directional protection and switched neutral. It maintains full compatibility with Hager consumer units while offering enhanced performance for modern installations.

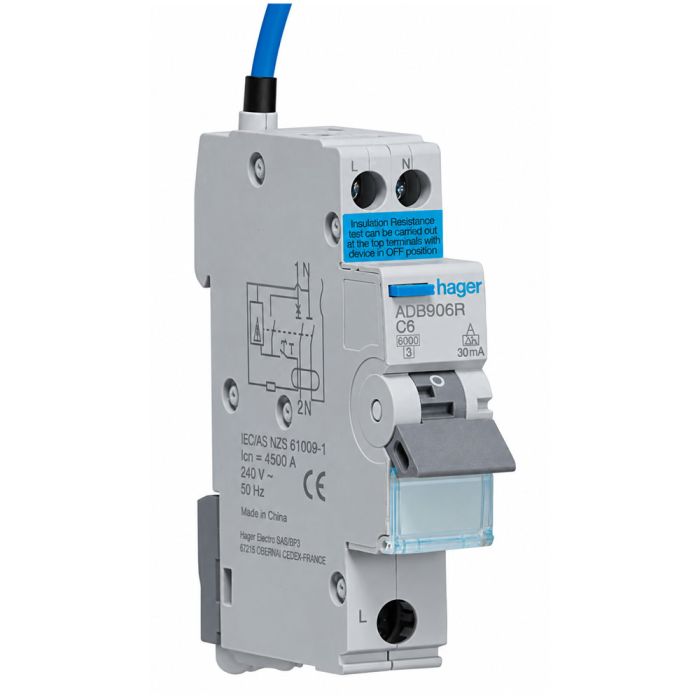

Hager ADB906R Bidirectional RCBO is a compact 1P+N protective device combining 6A B-curve overcurrent protection with 30mA Type A residual current protection. Its 6kA breaking capacity and single-module design make it suitable for protecting individual final circuits while conserving valuable space in compatible consumer units and distribution boards.

Combined Circuit Protection

The ADB906R combines miniature circuit breaker and residual current protection within one device. This provides protection against overloads, short circuits and residual current faults while allowing an affected circuit to be isolated independently from other circuits in the installation.

Bidirectional Type A Operation

Bidirectional operation provides greater flexibility for circuits where current may flow in either direction. The Type A residual current characteristic and 30mA sensitivity make the RCBO suitable for modern electrical installations requiring individual circuit protection.

Space-Saving Single-Module Design

At only 17.7mm wide, the ADB906R occupies one DIN rail module. This compact format helps contractors maximise usable enclosure capacity while retaining 1P+N switching and protection within a single device.

Installer-Friendly Connections

The RCBO accepts flexible conductors from 1-10mm² and solid conductors from 1-16mm². A screw terminal at the top and Hager biconnect connection at the bottom support straightforward installation in compatible Hager distribution equipment.

Key Features of the Hager Bidirectional RCBO ADB906R Include:

  • Combined Overcurrent And Residual Current Protection For Individual Final Circuits
  • Bidirectional Operation For Installations With Two-Way Current Flow
  • 6A Rated Current For Lower-Load Circuit Protection
  • B Curve Tripping Characteristic For Compatible Domestic And Commercial Circuits
  • 30mA Type A Residual Current Protection
  • 6kA Short-Circuit Breaking Capacity
  • 1P+N Configuration With 1 Protected Pole
  • Single-Module Design Conserves Consumer Unit And Distribution Board Space
  • DIN Rail Mounting For Compatible Modular Enclosures
  • Top Screw Terminal And Bottom Biconnect Connection
  • Flexible Conductor Capacity: 1-10mm²
  • Solid Conductor Capacity: 1-16mm²
  • IP Rating: IP20
  • Operating Temperature: -25°C To +70°C
  • Electrical Endurance: 10000 Cycles
  • Mechanical Endurance: 20000 Operations
  • Height: 85mm
  • Width: 17.7mm
  • Depth: 70mm

View All Hager RCBOs

View All Hager Circuit Protection

View All Hager Electrical

If you just need some help, would like to take advantage of our Price Promise or perhaps have a large order to place give our team of professionals a call on 0203 994 5470, drop us an email at sales@electricpoint.com or use our Contact Form.
Stock Reference: ADB906R
Brand: Hager
Product Type: Bidirectional RCBO
Protection Type: Overcurrent And Residual Current Protection
Number Of Poles: 1P+N
Number Of Protected Poles: 1
Rated Current: 6A
Tripping Curve: B Curve
Rated Residual Operating Current: 30mA
Residual Current Type: Type A
Short-Circuit Breaking Capacity: 6kA
Rated Operational Voltage: 230-240V
Maximum Operating Voltage: 264V
Rated Insulation Voltage: 440V
Rated Impulse Withstand Voltage: 4000V
Frequency: 50Hz
Overvoltage Category: Category III
Energy Limiting Class: Class 3
Total Power Loss: 2.74W
Ingress Protection: IP20
Mounting: DIN Rail
Number Of Modules: 1
Top Connection: Screw Terminal
Bottom Connection: Biconnect
Flexible Conductor Capacity: 1-10mm²
Solid Conductor Capacity: 1-16mm²
Operating Temperature: -25°C To +70°C
Storage Temperature: -25°C To +80°C
Maximum Installation Altitude: 2000m
Electrical Endurance: 10000 Cycles
Mechanical Endurance: 20000 Operations
RoHS Conformity: Yes
Height: 85mm
Width: 17.7mm
Depth: 70mm
EAN: 3250610087572
Pack Quantity: 1
