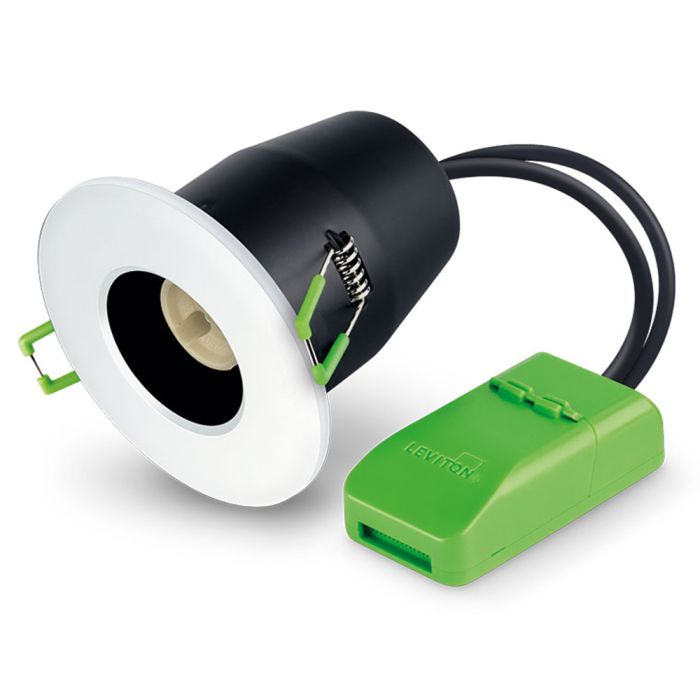

JCC Fireguard GU10 Downlight White IP20

Product Code JC010010/WH

2 reviews

Add Your Review

Available for Delivery only, change to Fast Delivery Service

£3.62

exc VAT

£4.34 : inc VAT

£4.34

inc VAT

£3.62 : exc VAT

  • BULK SAVINGS!
  • QTY Unit Price
  • 1-9 £3.62 £4.34
  • 10+ £3.61 £4.33

Qty:

JCC Fireguard JC010010/WH Next Generation fire rated fixed downlight with white bezel. Providing a streamlined, simple installation for fast fitting, alongside a stylish, modern aesthetic and recess mounting to fit seamlessly throughout any home. The Next Generation is the perfect Downlight for contractors and homeowners.

JCC has shortened the can, allowing for use in shallower voids. The downlight has also been narrowed and tapered, for easier entry into the ceiling and improving the mobility of the spring clips, further streamlining the installation process. The quick connect press fit terminal block allows for tool free installation and provides 180° access to the wiring, making the connection process as simple and efficient as possible

The downlight is specially designed to be insulation coverable, shaped to allow for air flow and provide ventilation for the LED, lengthening its life span, making the downlight perfect for usage in insulated ceilings. The Fireguard Downlights are 30, 60 and 90 minute fire rated, helping to prevent the spread of fire throughout your home and provide peace of mind for you and your family.

The Fireguard provides you with flexibility, allowing you the choice of GU10 LED lamp on installation, whilst giving you the choice of lamp colour and wattage. Fitting the bezel is a simple twist and lock process, making future lamp and bezel changes quick and stress free .

The Fireguard bezel range allows for customisation of IP rating, with IP20 and IP65 rated interchangeable bezels available, The IP20 Bezel is suitable for installation all throughout the home including bathrooms, outside of Bathroom Zone 2. When fitted with the IP65 Bezel the downlights can be used inside of Bathroom Zone 1 and is the perfect option for installation throughout bathrooms, wetrooms or as a showerlight.

We also stock Fireguard Next Generation Tilt, an IP20 variety, ideal for vaulted ceilings, customising your lighting or highlighting features and artwork.

Key Features of JCC JC010010/WH:

  • White bezel included
  • Designed for GU10 LED lamps - lamps not included
  • Cut-Out: 74mm
  • Part B fire rating compliant- 30, 60 and 90 minute fire rating
  • Airtight (Part C)
  • Acoustic rated (Part E)
  • Tested for use in solid, I-Joist and steel open web joist ceilings
  • Thermally tested for use with mineral wool insulation
  • Ultra fast press fit,
  • Loop in/out terminal
  • Easy twist and lock bezel replacement
  • Minimum void: 150mm
  • Spring clip fixing
  • IP Rating: IP20
  • LED compatible
  • Wattage: 7W LED maximum
  • Construction: Die cast aluminium
  • Class: Class 1, earth cable required
  • Compatible with bulbs A+ to E
  • Diameter: 87mm
  • Depth: 108.7mm
  • Weight: 0.264kg
  • Standards: BS EN 60598-2-1, 2-2, CE Mark, WEEE symbol
  • Product code: JC010010/WH
  • JCC Warranty: 2 years

View all JCC Fireguard Next Generation Downlights

View all JCC Lighting

View all Downlights

View all GU10 LED Bulbs

Electricpoint is large stockist of JCC lighting products so if you just need some help, would like to take advantage of our Price Promise or perhaps have a large order to place give our team of professionals a call on 0203 994 5470, drop us an email at sales@electricpoint.com or use our Contact Form.

Product Downloads JCC Fireguard JC010010WH Data Sheet
Model Number JC010010/WH
Brand JCC
Range Fireguard Next Generation
Light Fitting LED GU10 (not included)
Fitting Type Fixed Downlight
Mounting Recessed Ceiling
Fire Rating 30/60/90 Minute
Bezel Colour White
Bezel Included Yes
Install Location: Bedroom, Kitchen, Hallway, Living Space
Max Wattage 7W LED
Dimmable Lamp Dependent
Energy Rating A+ to E
Connector Press Fit Terminals
Class I, Earth Required
Dimensions (Diameter x D): 87mm x 108.7mm
Diameter 87mm
Cut Out 74mm
Minimum Ceiling Void 150mm
Type of Use Indoor
RIm Material Die-cast Aluminium
Method of Fix Spring Clips
IP Rating IP20
Weight 0.171kg
Voltage 230V
Warranty 2 Years Standard
Building Regulations Part B, C and E
Standards BS EN 60598-2-1, 2-2
CE Marked Yes
