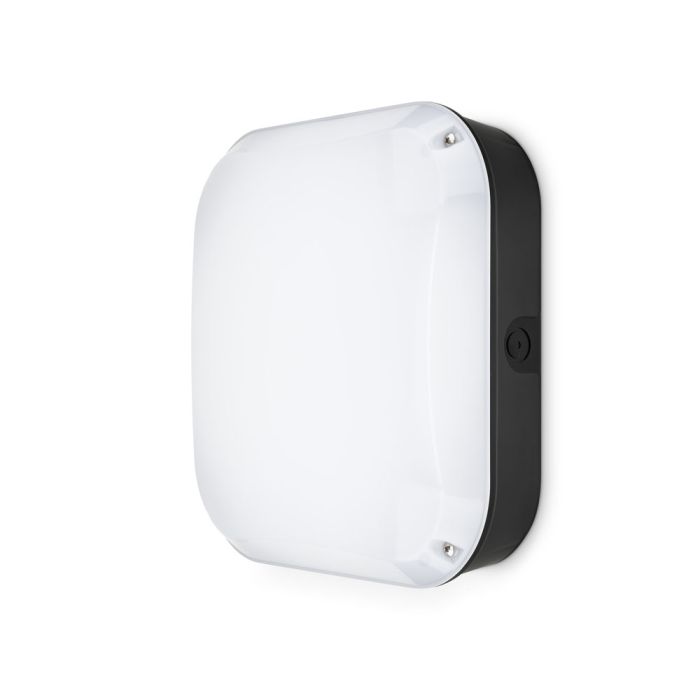

JCC RadiaLED Rapid Pro LED Bulkhead Square 12-20W CCT Black IP65

The JCC RadiaLED Rapid Pro LED Bulkhead Square 12–20W CCT is a robust, high-efficiency lighting solution designed for demanding commercial and residential environments. With wattage selectable output of 12W, 16W or 20W and light levels up to 2,430 lumens, this bulkhead provides excellent performance while allowing installers to tailor output to suit corridors, stairwells, external walkways and service areas.

Selectable Colour Temperature and Durable Protection

Featuring CCT selection of 3000K, 4000K and 5700K, the RadiaLED Rapid Pro allows colour temperature to be matched to the application, from warm ambient lighting to crisp, functional illumination. Delivering up to 127 lumens per circuit watt, it combines strong efficiency with reliable light quality at CRI Ra80. The fitting is built for longevity with an IP65 rating for dust and water resistance and an IK10 impact rating, making it suitable for both indoor and outdoor installations.

Installer-Focused Design for Fast, Clean Installation

Designed with speed and simplicity in mind, the bulkhead features a unique clip-in, tool-less LED gear tray, allowing quick access during installation and maintenance. Four side 20mm conduit entry points provide flexible wiring options, reducing installation time and improving cable management. Finished in black for a modern appearance, the fitting also benefits from a 60,000-hour LED lifetime, ensuring long-term reliability with minimal maintenance.

Key features of the JCC RadiaLED Rapid Pro LED Bulkhead Square 12-20W CCT Black IP65:

• Wattage selectable LED bulkhead: 12W / 16W / 20W
• Light outputs: 12W – 1,490 lumens (124 lm/W) / 16W – 2,040 lumens (127 lm/W) / 20W – 2,430 lumens (up to 121 lm/W)
• CCT selectable: 3000K / 4000K / 5700K
• High efficiency of up to 127 lumens per circuit watt
• IP65 rated for dust and water protection
• IK10 impact resistant construction
• Tool-less clip-in LED gear tray for fast installation
• Four 20mm side conduit entry points for flexible wiring
• CRI Ra80 for consistent colour rendering
• Long 60,000-hour LED lifetime
• Depth: 87mm
• Width: 286mm
• Depth: 286mm
• Supplied with a 5-year manufacturer’s warranty
