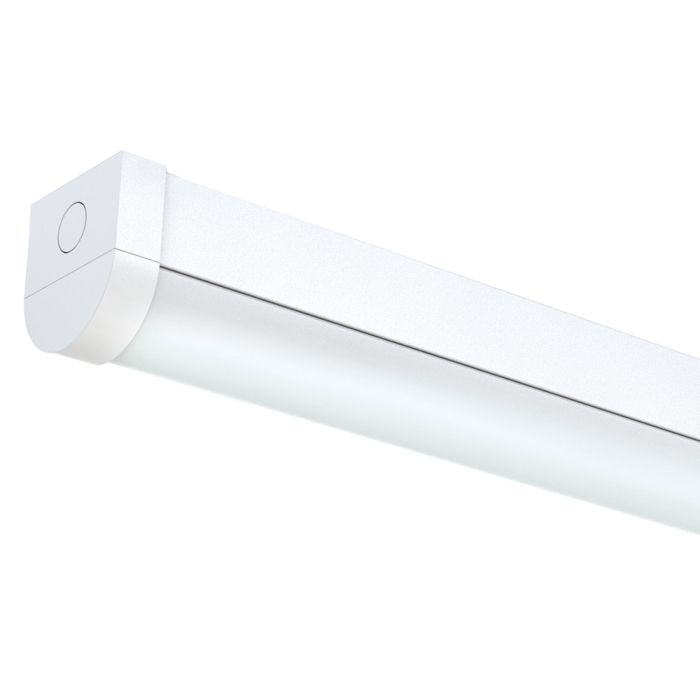

JCC Skypack Emergency 4ft LED Batten Single JC71741EM

The JCC Skypack QR LED Batten JC71741EM is a cool white, 4ft, single emergency LED batten with quick release buttons for quick and simple installation.

Suitable for residential, commercial and industrial use, this surface mounted LED batten is extremely energy efficient whilst offering up to 110 lumens per circuit Watt. The JC71741EM also boasts an LED life of 54,000 hours making it an ideal alternative to T8 fluorescent batten fittings.

The JCC Skypack Quick Release range benefits from a range of easy install features including press release buttons, simple press fit terminals (loop in, loop out), a suspended LED tray, as well as rear and end conduit entry points.

JC71741EM comes with a 2 year standard warranty which is extendable up to 5 years when registered within the first year of purchase.

Features of the JCC Skypack QR LED Batten JC71741EM Include:

• Ideal Alternative to T8 Fluorescent Battens
• Colour Temperature: Cool White (4000K)
• 4ft, Single LED Batten
• Energy Rating A+
• Quick and Simple to Install
• Offers up to 110 Lumens per Circuit Watt
• LED Life: 54,000hrs
• Intelligent Press Release Buttons
• Simple Press Fit Terminals (Loop In, Loop Out)
• Suspended LED Tray
• Rear and End Conduit Entry Points
• Actual Lumen Output: 2760lm
• Luminaire Circuit Wattage: 25
• Class 1: Requires Earth Connection
• Dimmable: No
• Voltage Rating: 220-240V
• Operating Frequency (Hz): 50/60
• Suitable for Temperatures: -10 to 50
• Colour Rendering Index (CRI): >80
• Construction: Steel Body, Polycarbonate Diffuser
• IP Rating: IP20
• Length: 1220mm (4ft)
• Height: 76.5mm
• Width 70mm
• Weight: 2.75kg
• Standards: EN 55015, CE Approved, WEEE
• Warranty: 2 Years, Extendable to 5 if Registered Within 1st Year of Purchase

Emergency Lighting Features:

• Load Voltage: 6-60VDC
• Nominal Battery Current: 1.2Amp
• Recharge Time: 24 Hours
• Battery Specification: 3.6V 4000mAH Ni-Cd
• Battery Life in Emergency Mode: 3 Hours
• Charge Current: 140m
• ADDP Protection: Yes, 2.8V
• LOR In Emergency Mode: 8-12%
• Inverter PFC: 0.8
