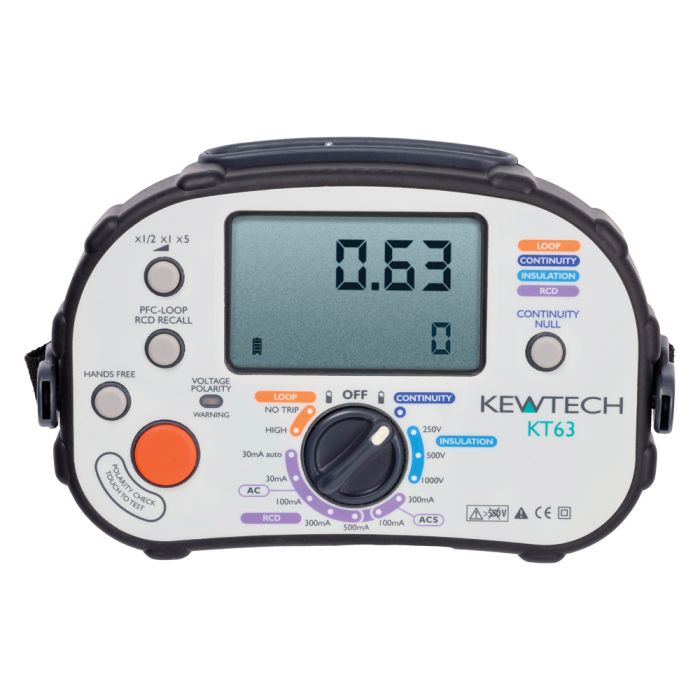

The Kewtech KT63DL Multifunction 5 in 1 Tester is the updated version of the popular KT63. Easy-to-use, this multifunction tester can measure up to five parameters and is ergonomically designed, with a dedicated function button to enable hands-free operation.
Purchase any Kewtech MFT and claim a free PTKIT1, KEW2200 or KT1780 directly from Kewtech by completing this form.
Ideal for both domestic and commercial testing and certifying, KT63DL is IP65 rated with lightweight casing, user friendly function buttons and a colour-coded dial. A large LCD display allows for clear reading of measurements
The Kewtech KT63DL can conduct a variety of tests for parameter measurements including continuity, insulation, loop impedance, PSC/PFC and RCD.
Features of the Kewtech KT63DL Include:
- Multifunction 5-1 Tester
- Easy to use, user friendly controls and large LCD display
- New Anti Trip Technology loop for full no trip Loop testing of RCD of all types. Low susceptibility of RCD uplift and noise interference
- Displays PFC/PSC at same time as Loop reading
- Best loop performance accuracy when benchmarked against other brands
- 250V / 500V / 1000V insulation test with auto discharge
- Test leads auto-null for continuity mode
- RCD auto test mode for 30 mA RCDs
- RCD ramp test function
- Tests 10 mA, 30 mA, 100 mA, 300 mA & 500 mA RCDs
- Dedicated hands-free function button
- Function selection via single rotary dial
- IP65 even when leads are not plugged in
- Continuous live monitoring to ensure no bangs
- Auto ranging Continuity measurement to 2000 Ω
- Phase to phase connection protection
- Instant correct wiring status check
- BS7671 (Part P) compliant
- Height: 70mm
- Width: 190mm
- Depth: 130mm
- Weight: 0.75kg
Kewtech KT63DL Comes Complete With:
- Mains Lead
- 3 wire distribution board test lead
- 8 x AA Batteries
- Carry case and strap
- Instruction Manual
- Certificate of conformity
- End of line certificate
Feature |
KT63DL |
KT63 Plus |
KT65DL |
KT66DL |
200mA Continuity with Auto Null Function |
✔ |
✔ |
✔ |
✔ |
Continuity 15mA Test |
|
|
|
✔ |
250, 500 & 1000V Insulation |
✔ |
✔ |
✔ |
✔ |
100V Insulation |
|
|
|
✔ |
PAT Testing with optional PAT Adaptor 1 |
✔ |
✔ |
✔ |
✔ |
PAT Results Memory & Download Software |
|
|
✔ |
✔ |
Continuous Live Warning |
✔ |
✔ |
✔ |
✔ |
High Voltage LED Light |
|
|
✔ |
|
2 Wire Low Current ATT non RCD Test |
|
|
|
✔ |
High Current Loop Test |
✔ |
✔ |
✔ |
✔ |
PSC/PFC Test |
✔ |
✔ |
✔ |
✔ |
Loop Test Noise Level Indicator |
|
|
|
✔ |
Polarisation and Dielectric Absorbtion Index |
|
|
|
✔ |
Digital Insulation Resistance Bargraph |
|
|
|
✔ |
RCD Type AC, ACS, A and AS |
✔ |
✔ |
✔ |
✔ |
Single, Auto and Ramp Tests |
✔ |
✔ |
✔ |
✔ |
Advanced memory Software |
|
|
✔ |
✔ |
RCD Auto Test on One Screen |
|
✔ |
✔ |
✔ |
Test Probes with Remote Test Button |
|
✔ |
✔ |
✔ |
LCD Display |
✔ |
|
|
|
Large Colour Matrix Display |
|
✔ |
|
✔ |
Carry Case with Extra Space |
✔ |
✔ |
✔ |
✔ |
Phase Rotation |
|
✔ |
✔ |
✔ |
Wiring and Lead Polarity Check |
✔ |
✔ |
✔ |
✔ |
Earth Resistance Test with ACCES KIT |
|
|
✔ |
✔ |
Backlight |
✔ |
✔ |
✔ |
✔ |
Soft Carry Case |
✔ |
✔ |
✔ |
✔ |
IP Rating |
54 |
54 |
40 |
40 |
Magnetic Base |
✔ |
|
|
|
Protective Lid On Instrument |
|
|
✔ |
✔ |
Touch Pad for Earth Potential Limits 25V or 50V |
|
|
✔ |
✔ |
PAT Test Firmware |
|
|
✔ |
✔ |
50kA PFC Range using 25A Test Current |
|
|
|
✔ |
Continuity 15mA Test Current Option |
|
|
|
✔ |
