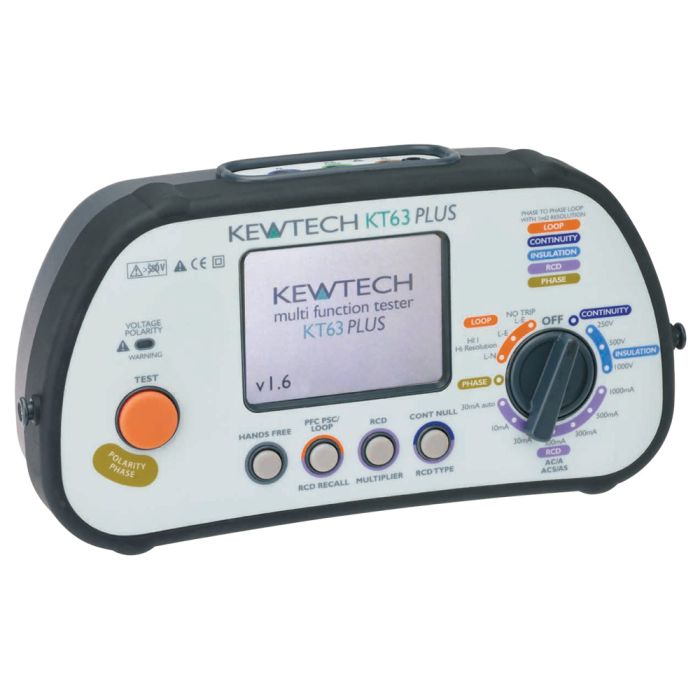

Kewtech KT63PLUS Multifunction Tester 6-in-1 Digital

The Kewtech KT63 Plus is an easy to use, 6 in 1 Multifunction Tester with a backlit, full colour screen that is larger than the standard KT63, making function selection and result reading quick and clear. The large screen enables all six auto RCD test results to be displayed at the same time while a user friendly rotary dial and four secondary function keys make operation simple.

Purchase any Kewtech MFT and claim a free PTKIT1, KEW2200 or KT1780 directly from Kewtech by completing this form.

Built for everyday use, the KT63 Plus is IP54 rated and benefits from extra protection in the form of a soft carry case.

The KT63 Plus provides three ways to take measurements. Choose a continuous test through the hands-free testing button, utilise the test button in a test probe or simply perform a single press of the test button.

The multifunction tester also benefits from anti-trip loop technology for full no-trip loop testing on all electronic and electro-mechanical RCDs of 30mA and above. Accurate results can be obtained without disruption thanks to the tester's low susceptibility to RCD uplift or noise interference.

Test lead resistance memory and auto-null features allow for accurate continuity measurements. Also test 10, 30, 100, 300, 500 and 1000mA RCDs at 0.5x 1x and 5x across 0º and 180º polarities.

There is no need to alter test probes when taking PFC/PSC measurements thanks to the continuous live monitoring function which also prevents damage to the tester. PFC/PSC results are displayed in real time alongside loop readings.

Features of Kewtech KT63 Plus Include:

• Large backlit full colour display
• Easy to use: Single rotary dial and four secondary function keys
• Anti-Trip Technology for full no trip LOOP testing on all RCD types
• RCD test results are presented on screen at once - no scrolling
• Auto-test memory for RCD testing
• High current test loop 50 V - 440 V
• Test button in probe as well as test button for hands free testing
• Easy PFC & PSC measurement without the need to alter test probes
• 250, 500 & 1000 V insulation tests with auto discharge
• Memory for test lead resistance compensation
• RCD tests AC / A & ACS / AS
• RCD ratings 10, 30, 100, 300, 500, 1000 mA
• Phase Rotation
• Three ways to start a test - single press of the test button, handsfree use of the test button (continuous testing) or by the test button in the additional test probe
• Special DNO polarity test
• IP54 rated
• Complies with BS7671

Kewtech KT63 Plus Includes:

• Test Lead with Remote Test Button
• G7 Test Lead Set
• Mains Lead
• Remote Switch Probe
• 6 x AA Batteries
• Heavy Duty Carry Case
• Neck Strap
• Instruction Manual
• Calibration Certificate
