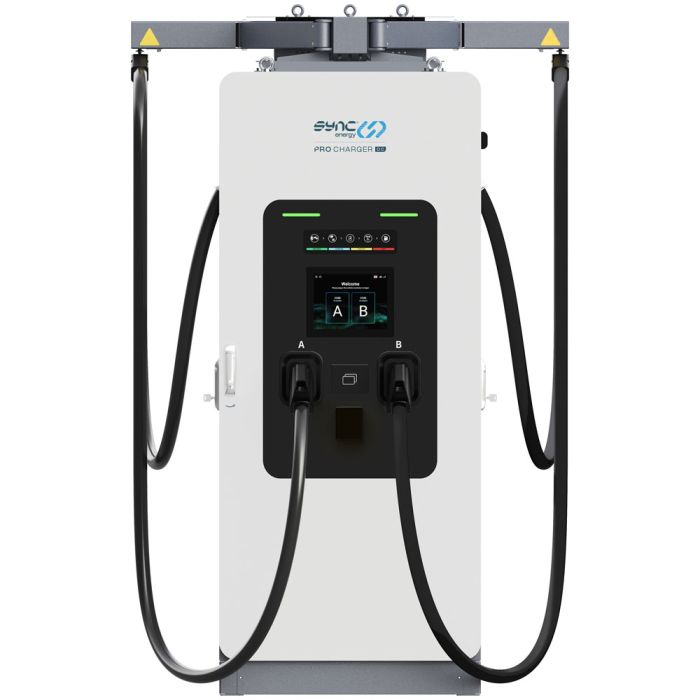

Sync Energy Pro DC EV Charger 180kW WiFi 4G Payment Terminal

Sync Energy Pro Charger DC EVPDCF180BGRP is a 180kW DC Pro Charger with payment terminal, designed for service stations, retail locations and public charging sites that need ultra-rapid charging with commercial-grade reliability. This floor-mounted unit combines dual CCS2 simultaneous charging, standard cable management and smart connectivity, making it a strong choice for high-traffic locations where speed, uptime and easy user access matter.

Ultra-Rapid Charging For High-Demand Sites

With up to 180kW rated power and 300A per connector, the EVPDCF180BGRP is built to keep vehicles moving on busy commercial sites. Dual CCS2 charging connectors support simultaneous charging, helping improve bay turnover and making the charger better suited to service stations, retail parks and public charging hubs.

Payment-Ready And Easy To Use

This model is supplied with a Payter Apollo payment terminal, giving site operators a practical solution for public and revenue-generating charging. A 10.4-inch touch screen provides a clear user interface for charging sessions, while RFID, app or optional credit card authentication supports flexible access control across different operating environments.

Smart Connectivity For Managed Installations

Built-in 4G, Wi-Fi and Ethernet connectivity makes it easier to integrate this charger into connected charging networks. OCPP 1.6J support, with OCPP 2.0 ongoing, gives installers and operators flexible back-office compatibility, including Monta, for smarter charger management across single or multi-site installations.

Built For Commercial Reliability

IP55 ingress protection, IK10 impact protection and forced-air cooling help this unit perform in demanding indoor or outdoor environments. Standard cable management improves safety and efficiency, reduces cable strain and supports ADA-compliant installations, while the wide 150-1000Vdc output range broadens vehicle compatibility.

Key Features of the Sync Energy Pro Charger DC Include:

• 180kW Ultra-Rapid DC Charging Helps Reduce Dwell Times On Busy Public And Commercial Sites
• Dual CCS2 Simultaneous Charging Supports Higher Throughput From A Single Floor Mounted Unit
• 300A Per Connector Delivers High Output Performance For Faster Vehicle Turnaround
• Supplied With Payter Apollo Payment Terminal For Revenue-Ready Public Charging
• 10.4-inch Touch Screen Supports Clear User Interaction And Easier Installer Setup
• Standard Cable Management Improves Safety, Efficiency And Everyday Cable Handling
• 4G, Wi-Fi And Ethernet Connectivity Supports Smart Network Integration And Remote Management
• OCPP 1.6J Compatibility Enables Flexible Back-Office Integration For Managed Charging Networks
• Wide 150-1000Vdc Output Voltage Range Supports Broad EV Compatibility
• IP55 Enclosure With IK10 Impact Rating And IK08 Screen Rating Suits Demanding Environments
• Operating Temperature: -30°C To 50°C
• Charging Cable Length: 5m
• IP Rating: IP55
• IK Rating: IK10
• Width: 750mm
• Height: 1790mm
• Depth: 720mm
• Warranty: 5 Years
