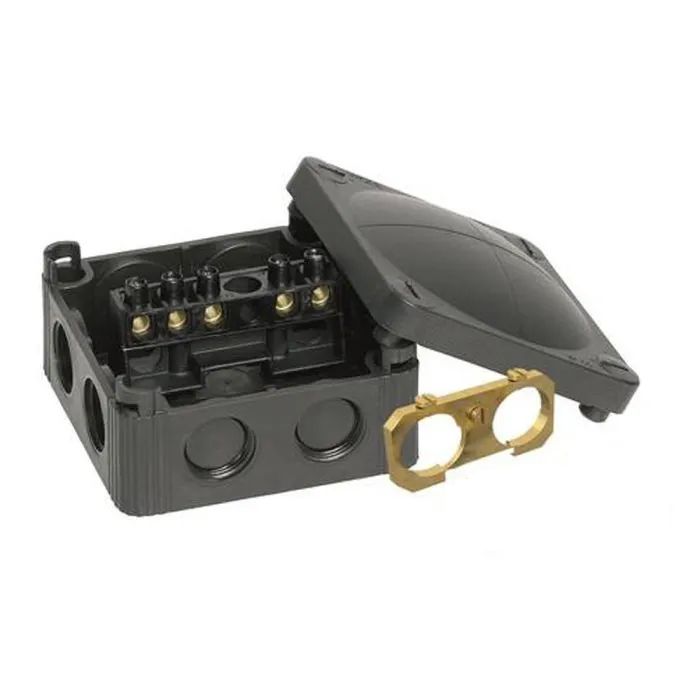

Wiska 85x85mm Weatherproof Armoured Cable Junction Box Black IP67

Product Code 308/5/EC/B

reviews

Add Your Review

Available for Delivery only, change to Fast Delivery Service

£7.46

exc VAT

£8.95 : inc VAT

£8.95

inc VAT

£7.46 : exc VAT

  • BULK SAVINGS!
  • QTY Unit Price
  • 1-2 £7.46 £8.95
  • 3+ £7.35 £8.82

Qty:

Wiska A.C.E Combi Kit with earth bar for armoured cable earthing. Quick and effective termination for SWA cables with no drilling to the enclosure and still maintaining IP rating of the enclosure.

Features of Wiska 308/5/EC/B:

  • Voltage: 400 V
  • Rated current / A (Terminal):32 A
  • Rated cross section: 4 mm²
  • Terminals/poles: 5-pole, 4,0 mm²
  • Fixing: 4 internal openings
  • 1 earth bar supplied
  • Ø cable diameter min: 3 mm
  • Ø cable diameter max: 12 mm
  • External dimensions LxWxH: 85 x 85 x 51mm
  • Type of cable gland: M 20 x 1,5
  • Product Color: RAL 9005
  • Order no: RAL 9005 308/5/EC
  • Type: 308/5/EC
  • Packing unit: 1
  • ETIM-Classification: EC002600
  • Material: Polypropylene
  • Material sealing gasket: TPE
  • Temp. range min: -30 °C
  • Temp. range max: 100 °C
  • Temperatures during install: -5 °C - 60 °C
  • Protection class: IP66 / IP67
  • Glow wire test: 750 °C



If you just need some help, would like to take advantage of our Price Promise or perhaps have a large order to place give our team of professionals a call on 0203 994 5470, drop us an email at sales@electricpoint.com or use our Contact Form.

Product Downloads Data Sheet
Voltage 400 V
Rated current / A (Terminal) 32 A
Rated cross section 4 mm²
Terminals/poles 5-pole, 4,0 mm²
Fixing 4 internal openings
Ø cable diameter min 3 mm
Ø cable diameter max 12 mm
Type of cable gland M 20 x 1,5
Product Color RAL 9005
Order no. RAL 9005 308/5/EC
Type 308/5/EC
Packing unit 1
ETIM-Classification EC002600
Material Polypropylene
Material sealing gasket TPE
Temp. range min -30 °C
Temp. range max 100 °C
Temperatures during install. -5 °C - 60 °C
Protection class IP66 / IP67
Glow wire test 750 °C
