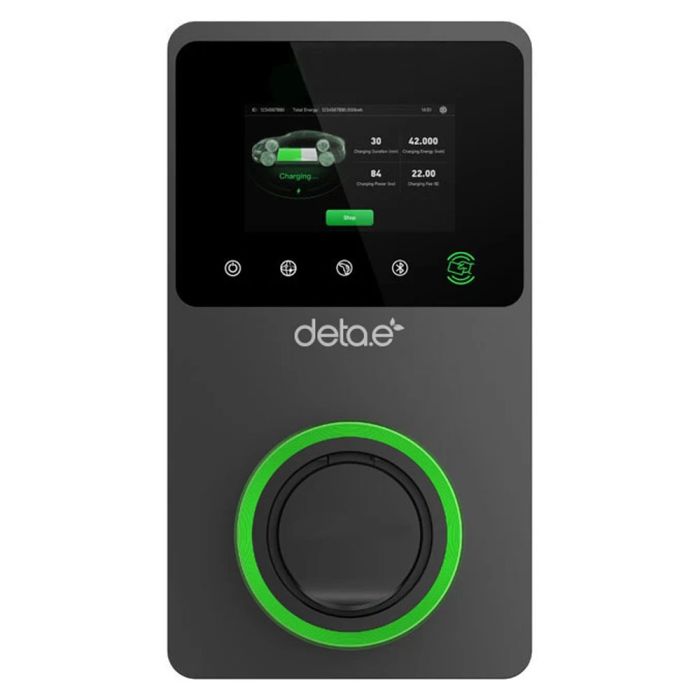

Deta eVolo eVoomXL 7kW & 22kW EV Charger EVC7006

Deta eVoomXL EVC7006 7.4kW/22kW Mode 3 Smart EV Charger with RFID cards is designed for communal residential, workplace and retail park car park installations. Built for landlord-fed power supplies, it supports app-controlled user accounts, load management and remote management via cloud for practical multi-user EV charging.

Smart Charging For Shared Sites

The eVoomXL EVC7006 can be installed for 7.4kW single-phase or 22kW three-phase charging, giving contractors flexibility across different site supplies. RFID card access and app account control help manage who can charge, making it well suited to apartments, staff parking and commercial premises.

Billing-Ready Metering And Load Management

A built-in MID approved energy meter with ±1% accuracy supports customer billing in shared environments. Maximum charging current can be set via the app, while RS485 load management helps configure the charger around available supply and site demand.

Installer-Friendly Connectivity

Ethernet, 2.4GHz Wi-Fi, 4G data SIM support and OCPP 1.6J provide multiple routes for remote monitoring and backend integration. Bluetooth commissioning via app helps simplify setup when an internet connection is not available, while OTA firmware updates keep the charger up to date once registered.

Safety And Site Durability

Built-in PEN fault detection, 30mA AC and 6mA DC residual current protection, IP54 ingress protection and IK10 impact protection support reliable use in demanding car park environments. The grey UV-resistant enclosure is suitable for wall or post mounting, giving installers flexibility on site.

Key Features of the Deta eVoomXL EVC7006 Include:

• 7.4kW Single-Phase Or 22kW Three-Phase Mode 3 EV Charging For Flexible Site Installation
• RFID Card Access And App Account Control For Shared Residential, Workplace And Retail Car Parks
• Built-In MID Approved Energy Meter With ±1% Accuracy For Customer Billing
• OCPP 1.6J Compatibility For Remote Management Via Cloud And Server Integration
• Ethernet, 2.4GHz Wi-Fi And 4G Data SIM Connectivity For Flexible Network Setup
• RS485 Load Management And App-Set Charging Current To Suit Available Supply
• Bluetooth Commissioning Via App When Internet Connection Is Not Available
• 5" LCD Touch Screen And Multi-Colour LED Indicators For Clear User Feedback
• Built-In PEN Fault Detection, 30mA AC And 6mA DC Residual Current Protection For Site Safety
• Height: 335mm
• Width: 187mm
• Depth: 130mm
• Weight: 4.2kg
• Warranty: 3 Years
