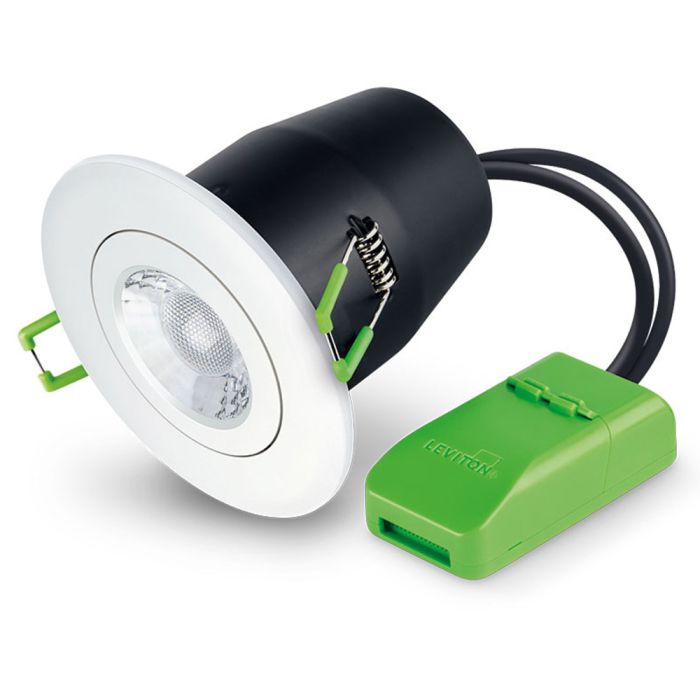

JCC Fireguard JC010023/WH Next Generation GU10 Fire Rated Tilt Downlight with white bezel. Providing a streamlined, simple installation for fast fitting with a stylish, modern aesthetic to fit seamlessly throughout any home.
The can has been shortened, narrowed and tapered. Allowing for use in shallower voids, easier entry into the ceiling and improved spring clip mobility, further streamlining the installation process. The quick connect loop in/out press fit terminal block has been upgraded to provide 180° access, allowing for stress free installation and simple termination whilst providing strain relief for the wiring.
The 15° tilt angle allows for directional lighting and the ability to target areas of a room which need some extra brightness, whilst also being the perfect option for vaulted ceilings or for highlighting features and artwork on walls.
The downlight is specially designed to be insulation coverable, shaped to allow for air flow and provide ventilation for the LED, lengthening its life span, making the downlight perfect for usage in insulated ceilings. The Fireguard Downlights are 30, 60 and 90 minute fire rated, helping to prevent the spread of fire throughout your home and provide peace of mind for you and your family.
The Fireguard provides you with flexibility, allowing you the choice of GU10 LED lamp on installation, giving you full customisation of the wattage and colour, whilst the simple twist and lock bezel makes future bezel or LED changes quick and easy.
We also stock Fireguard Next Generation Fixed Downlights, customisable with IP20 and IP65 Bezels, ideal for lighting throughout your household, or as a shower light.
Features of JCC JC010023/WH:
- White bezel included. The perfect easy to install downlight, perfect for usage all throughout the home
- Designed for GU10 LED lamps - lamp not included
- 15° adjustable tilt
- Part B fire rating compliant- 30, 60 and 90 minute fire rating
- Airtight (Part C)
- Acoustic rated (Part E)
- Tested for use in solid, I-Joist and steel open web joist ceilings
- Thermally tested for use with mineral wool insulation
- Ultra fast press fit
- Loop in/out terminal
- Easy twist and lock bezel replacement
- Minimum void: 150mm
- Spring clip fixing
- IP Rating: IP20
- LED compatible
- Wattage: 7W LED maximum
- Construction: Die cast aluminium
- Class: Class 1, earth cable required
- Compatible with bulbs A+ to E
- Diameter: 100mm
- Depth: 115.45mm
- Weight: 0.264kg
- Standards: BS EN 60598-2-1, 2-2, CE Mark, WEEE symbol
- Product code: JC010023/WH
- JCC Warranty: 2 years
Electricpoint is large stockist of JCC lighting products so if you just need some help, would like to take advantage of our Price Promise or perhaps have a large order to place. Give our team of professionals a call on 0203 994 5470, drop us an email at firstname.lastname@example.org or use our Contact Form.
|Product Downloads||JCC Fireguard JC010023WH Data Sheet|
