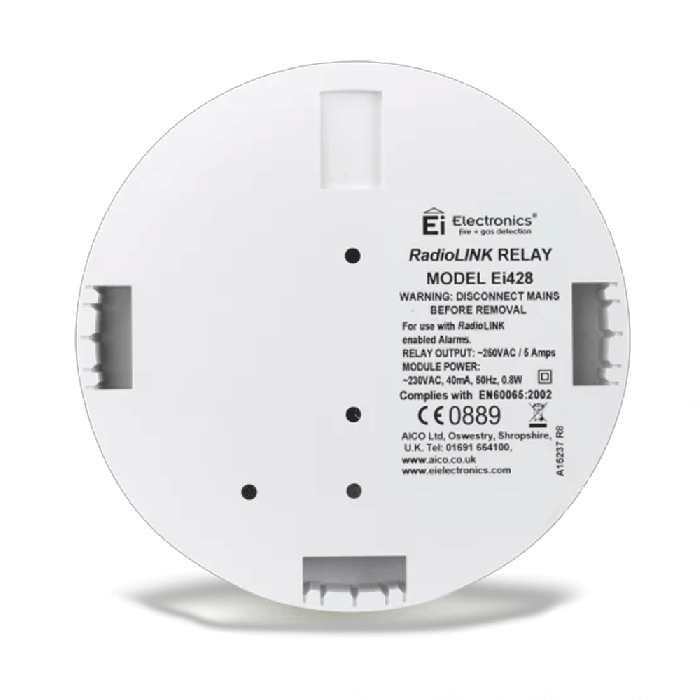

Aico Ei1428 Mains Relay Module Base RadioLink

Aico Ei428 RadioLINK Relay Module — Mains-Powered Wireless Relay For External Devices.

The Aico Ei428 RadioLINK Relay Module provides a simple way to link your Aico wireless alarm system to external devices such as strobes, sounders, telecare units or door controls. When any interconnected alarm in the system activates, the Ei428 switches its volt-free relay contacts so third-party equipment is triggered automatically.

Seamless Integration With External Equipment

Designed for use in domestic and light commercial installations, the Ei428 allows you to pass fire or alarm signals to ancillary devices without running extra control wiring around the property. The volt-free relay contacts, rated at 5A, make it suitable for a wide range of interfaces including beacons, panel inputs and call systems, helping you tailor the alarm response to occupants’ needs.

Installer-Friendly Design

The module is mains powered for convenience and incorporates a rechargeable lithium back-up battery, so it continues to operate during short power cuts. Front-facing LED indicators clearly show power status plus RF transmission/low battery, allowing quick fault finding during commissioning and maintenance. Its compact enclosure and straightforward wiring keep installation time to a minimum.

Reliable RadioLINK Performance

Using proven RadioLINK wireless interconnection at 868.499MHz, the Ei428 offers an open-air RF range of over 100m, helping alarm signals reach reliably across larger homes, HMOs and supported-living schemes. Low power consumption of just 0.8W and a 5-year manufacturer warranty make it a robust, low-maintenance choice for long-term life safety systems.

Key Features of the Aico Ei428 RadioLINK Relay Module Include:

• Wireless Relay Interface For Triggering External Devices From Aico Alarm Systems
• Activates Strobes, Sounders Or Telecare Equipment When Interconnected Alarms Operate
• Volt Free Relay Contacts Rated 5A For Flexible Connection To Third-Party Equipment
• Mains Powered Module With Rechargeable Lithium Back-Up For Continued Operation During Power Cuts
• RadioLINK Wireless Interconnection At 868.499MHz For Robust Signalling
• RF Range >100m In Free Air To Help Cover Larger Properties
• Green LED For Power And Red LED For RF Transmission And Low Battery Status
• Low Power Consumption Of 0.8W For Energy-Efficient Operation
• Operating Temperature Range From -10°C To 40°C Suited To Typical Indoor Environments
• Humidity Range 15–95% For Use In A Wide Range Of Internal Locations
• Compatible with Aico 140RC when using with Ei168RC, 160e when used with Ei100MRF and Ei3000 Series when used with Ei3000MRF
• Height: 145mm
• Width: 145mm
• Depth: 31mm
• Product Weight: 0.191kg
• 5 Year Manufacturer Warranty
