BG 9 Way RCBO Consumer Unit with SPD and Main Switch CF12MS9

Product Code CF12MS9

reviews

Available for Delivery only, change to Fast Delivery Service

£42.89

exc VAT

£51.47 : inc VAT

£51.47

inc VAT

£42.89 : exc VAT

  • BULK SAVINGS!
  • QTY Unit Price
  • 1-2 £42.89 £51.47
  • 3+ £42.67 £51.20

Qty:

feefo-reviews

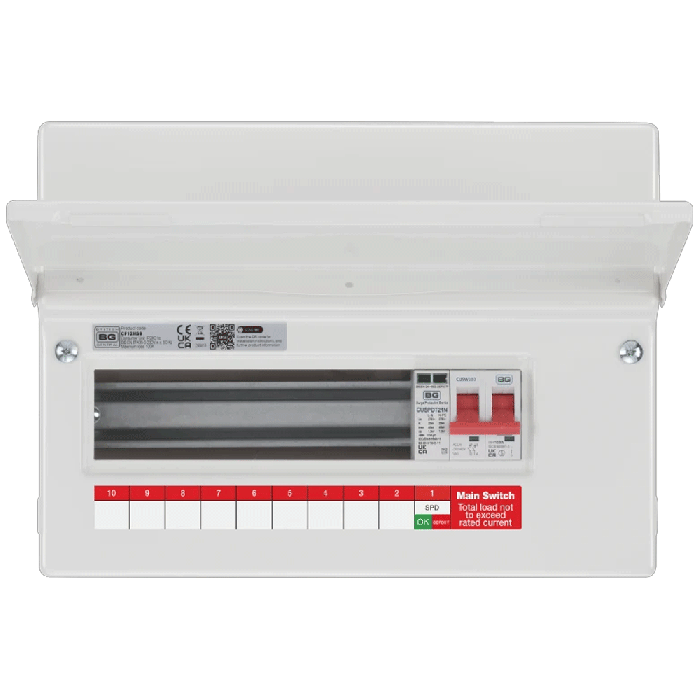

BG Fortress CF12MS9 — 12 Module 9 Way Main Switch Consumer Unit with Type 2 SPD

The BG CF12MS9 is a 12-module, 9-way consumer unit supplied complete with a 100A main switch and factory-installed Type 2 surge protection device (SPD). Designed to comply with the 18th Edition Wiring Regulations (BS 7671), it provides contractors with a robust, regulation-ready solution for domestic and light-commercial installations requiring reliable circuit protection and enhanced surge resilience.

This enclosure supports MCBs, RCBOs, RCDs, AFDDs and additional control devices, offering flexibility for both new builds and rewires. Large rear knockouts, backed-out terminal screws and an integrated spirit level help reduce installation time and improve accuracy on site.

Fast, Accurate Installation for Busy Contractors

The CF12MS9 features a carefully engineered layout to simplify fitting in tight spaces. Contractors benefit from large rear knockouts (two rows) for easier cable routing, 40mm top, side and base knockouts, and retained terminal screws that prevent loss during assembly.

The integrated spirit level helps ensure a neat, level installation — a small but highly valued feature when working on multiple consumer units in quick succession.

Built-In Surge Protection for 18th Edition Compliance

A Type 2 SPD (40kA) is pre-wired inside the unit, helping protect connected circuits and equipment from transient overvoltage events such as lightning or switching surges. This eliminates the need for additional SPD accessories and ensures compliance with modern surge-protection requirements.

Durable, Installer-Friendly Design

The enclosure is finished in RAL9016 Traffic White, with IP2XC protection for safe operation. All components are BG-manufactured, maintaining compliance with BS/EN 61439 and ensuring long-term reliability backed by a 10-year manufacturer guarantee (subject to conditions).

Key Features of the BG CF12MS9 Consumer Unit Include:

  • Supplied with 100A Main Switch for Immediate Installation
  • Integrated Type 2 SPD (40kA) Provides Enhanced Surge Protection
  • 12-Module Enclosure with 9 Useable Ways Supports a Wide Range of Protective Devices
  • Large Rear Knockouts and 40mm Side/Top/Base Knockouts Allow Easy Cable Access
  • Integrated Spirit Level Ensures Quick, Accurate Mounting
  • Backed-Out and Retained Terminal Screws Save Time During Assembly
  • IP2XC Rated Enclosure Enhances User Safety and Compliance
  • Compatible with MCBs, RCBOs, RCDs, AFDDs and Control Devices
  • RAL9016 Traffic White Finish Matches Modern Consumer Unit Aesthetics
  • 10-Year BG Warranty for Long-Term Reliability

View BG RCBO's

View BG Consumer Units

If you need some help, would like to take advantage of our Price Promise or perhaps have a large order to place, please give our team of professionals a call on 0203 994 5470, drop us an email at sales@electricpoint.com or use our Contact Form.

Product Downloads BG Main Switch Consumer Unit Datasheet
Model Number: CF12MS9
Brand: BG Electrical (Luceco PLC)
Product Type: Main Switch Consumer Unit with Type 2 SPD
Modules / Useable Ways: 12 Modules / 9 Ways
Main Switch Rating: 100A
SPD Type & Rating: Type 2, 40kA (Pre-Wired)
Operational Voltage: 230V AC
Rated Insulation Voltage (Ui): 500V AC
Impulse Withstand Voltage (Uimp): 4kV
Short Circuit Rating (Icc): 16kA
Number of Phases: Single Phase (1P+N)
IP Rating: IP2XC
Colour: RAL9016 Traffic White
Main Switch Terminal Capacity: Up to 35mm²
Main Switch Terminal Torque: 2.5Nm
SPD Terminal Capacity: 1.5–6mm²
SPD Terminal Torque: L/N 1.2Nm, PE 3Nm
Dimensions (HxWxD): 229.9 × 316.4 × 115.9 mm
Mounting: Surface Mounted
Standards: Consumer Unit: BS/EN 61439; Main Switch: EN/IEC 60947-3; SPD: EN 61643 Type 2
Warranty: 10 Years (BG Electrical)
