Greenwood Comfotube Pipe Connector 110mm CTC110

Greenwood Zehnder CTC110 ComfoTube 110mm to 100mm Ductwork Connector

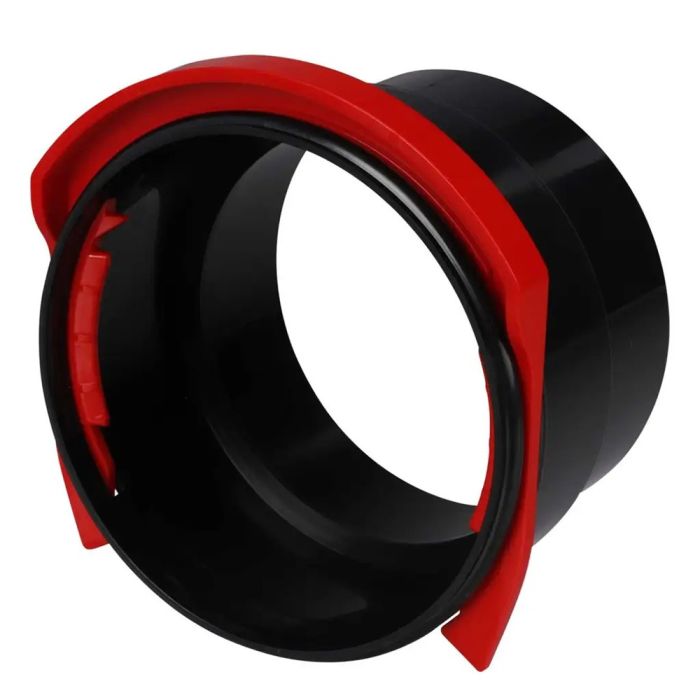

The Greenwood Zehnder CTC110 ComfoTube 110mm to 100mm Ductwork Connector provides a secure transition between Greenwood Zehnder ComfoTube 110mm semi-rigid ductwork and GD413.CT 100mm ductwork. Featuring Zehnder's RapidLock® connection system, the adaptor creates an airtight, robust push-fit connection when combined with the separately available O-ring seal, helping installers achieve a reliable transition between duct sizes.

Quick, Secure Push-Fit Connection

The CTC110 incorporates RapidLock® connections, allowing ComfoTube semi-rigid ductwork to be push-fitted into the connector. This simplifies assembly while creating a robust connection that helps maintain the integrity of the ventilation duct system.

The required O-ring seal is sold separately and is used with the connection to provide an airtight seal.

Connect 110mm ComfoTube to 100mm Ductwork

Designed specifically as a female connector, the CTC110 provides the transition from Greenwood Zehnder ComfoTube 110mm ductwork to GD413.CT 100mm ductwork. This makes it a purpose-designed component for integrating the two ductwork sizes within a compatible Zehnder ventilation installation.

Compact ABS Construction

Manufactured from acrylonitrile butadiene styrene (ABS), the CTC110 combines a compact design with a low weight of just 0.128kg, making it straightforward to handle during installation.

The connector measures 85.7mm long, with stepped internal diameters of 98mm / 112.5mm and external diameters of 108mm / 116.5mm.

Key Features of the Zehnder CTC110 ComfoTube Ductwork Connector Include:

• 110mm To 100mm Ductwork Connection — Connects Greenwood Zehnder ComfoTube 110mm To GD413.CT 100mm Ductwork
• RapidLock® Connection — Provides Quick Push-Fit Installation For A Robust Connection
• Airtight Connection — Designed For Use With An O-Ring Seal To Help Maintain Ventilation System Integrity
• Female Connector Design — Provides A Purpose-Designed Transition Between Compatible Zehnder Ductwork
• ABS Construction — Provides A Lightweight & Practical Ductwork Connection
• O-Ring Seal Sold Separately — Allows The Required Sealing Component To Be Selected For Installation
• Length: 85.7mm
• Internal Diameter: 98mm / 112.5mm
• External Diameter: 108mm / 116.5mm
• Weight: 0.128kg
