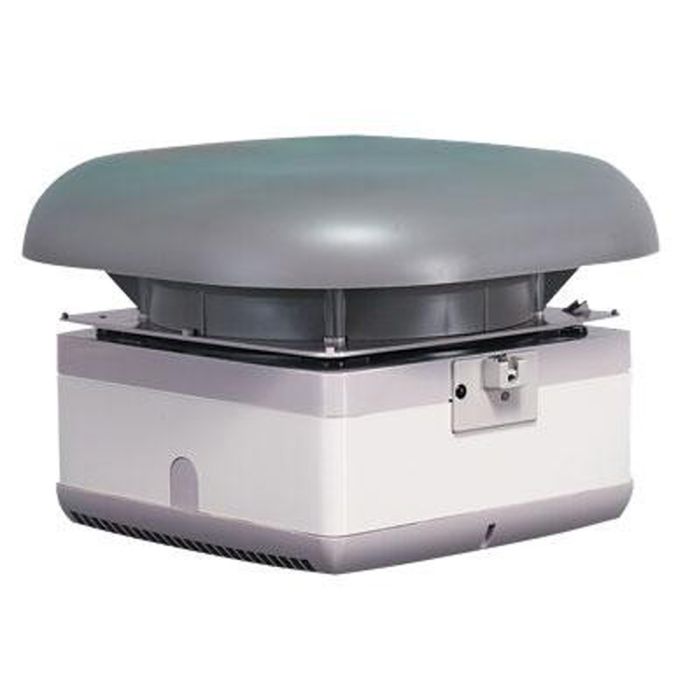

Vent Axia TX9RF 9 Inch Roof Extractor Fan W163210

The Vent Axia TX9RF 9 inch roof mounted extractor fan is fitted with the Vent-Axia M-Tech motor which has been developed to provide improved performance and energy efficiency.

With a low profile cowl, the TX9RF can be installed in horizontal, angled (max pitch 30deg) and vertical glass, as well as fixing plates in roofs. The commercial roof extractor fan features an integral shutter which is electronically controlled by an actuator with a damped action to provide quiet operation. The shutter blade's interlocking edges provide maximum backdraught protection. Integrated components allow for simple dismantling and easy cleaning without the need for specialist tools. The TX9RF is also supplied with a connector top socket - as is standard for all T-series extractor fans - for easy mains connection.

Features of the Vent Axia TX9RF 9 Inch Roof Mounted Commercial Extractor Fan include:

• Patented Electronic Shutter Provides Quiet Operation
• Horizontal, Angled or Vertical Installation on Glass or Fixing Plates
• Maximum Backdraught Protection with Interlocking Shutter Blades
• Easy To Dismantle and Clean without Specialist Tools
• Connector Top Socket for Easy Mains Connection
• Standard Thermal Overload Protection
• Suitable for use in Ambient Temperatures -40°C to +50°C
• Voltage: 220v-240v
• Wattage: 85W
• Noise levels: 43 dBA
• Extraction rate (Min / Med / Max): 130l/s (465m³/hr) / 190l/s (685m³/hr) / 220l/s (795m³/hr)
• Height: 302mm
• Width: 304mm
• Depth: 150mm
• Warranty: 2 years
