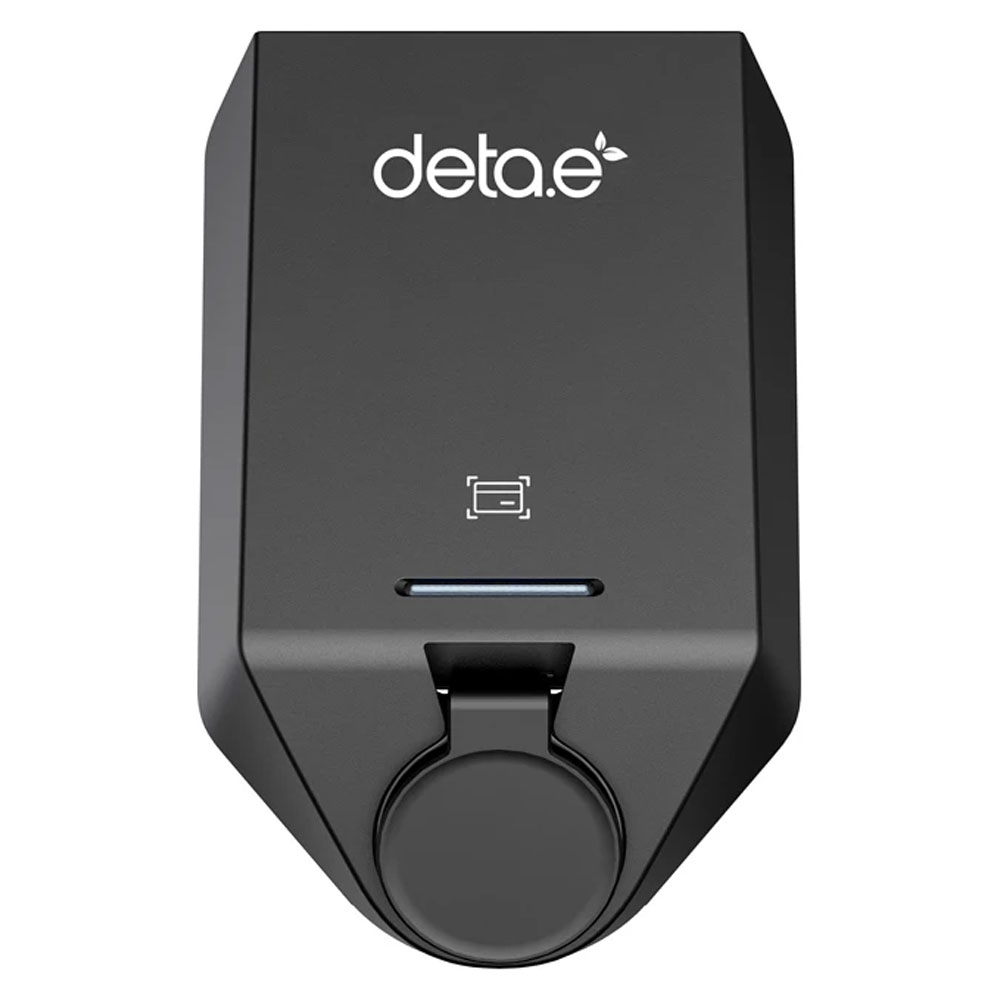

Deta eDock2 7kW EV Charger WiFi 4G MID Meter EVC8007

Deta.e eDock2 EVC8007 7.4kW Mode 3 EV Charger with 4G and 45A MID Energy Meter is designed for communal, residential and managed charging installations. Preconfigured with a Clenergy 4G EV SIM and supplied with an in-line MID-approved meter, it provides app-controlled Type 2 charging with the connectivity, billing support and remote management features required for landlord and charge point operator projects.

Communal Charging And Individual Billing

The supplied 45A in-line MID-approved energy meter supports communal installations where individual users are billed for the electricity they consume. An RS485 connection links the meter to the charge point, while Clenergy manages the maximum charging current to suit the site’s available electrical capacity.

Clenergy App And Portal Management

Drivers can use the Clenergy app to operate the charge point, while the Clenergy Portal supports charging control, scheduling and energy-use monitoring. Cloud connectivity also enables remote diagnostics, fault-code access and over-the-air firmware updates, reducing the need for unnecessary site visits.

4G And Multi-Network Connectivity

The EVC8007 is preconfigured with a Clenergy 4G EV SIM and also supports dual-band Wi-Fi and Ethernet. OCPP 1.6J and 2.0.1 compatibility allows integration with compatible third-party charge point operators, making the unit suitable for professionally managed charging networks.

Integrated Protection And Load Management

Built-in PEN fault detection and isolation support TN-C-S and TT installations, while the integrated RDC-DD provides 30mA AC and 6mA DC residual current detection. A 100A/100mA CT clamp is supplied for load management, helping protect the installation and DNO fuse from excessive demand.

Key Features of the Deta.e eDock2 7.4kW 4G EV Charger EVC8007 Include:

• 7.4kW Mode 3 EV Charger For Single-Phase Installations
• Type 2 Connection For Compatible Electric Vehicles
• Preconfigured Clenergy 4G EV SIM For Connected Charge Point Management
• 45A In-Line MID-Approved Energy Meter Supplied For Individual User Billing
• Clenergy App Operation With Portal-Based Scheduling And Energy Monitoring
• OCPP 1.6J And 2.0.1 Compatibility For Third-Party Charge Point Management
• Wi-Fi 2.4GHz And 5GHz Plus Ethernet RJ45 Connectivity
• Bluetooth 5.1 And NFC Support For App-Based Commissioning
• 100A/100mA CT Clamp Included For Load Management
• Built-In PEN Fault Detection And Isolation For TN-C-S And TT Installations
• Integrated 30mA AC And 6mA DC RDC-DD Protection
• Remote Cloud Diagnostics And Over-The-Air Firmware Updates
• Multicolour LED Indicators And Adjustable Voice Prompts
• IP65 Protection Without A Plug Inserted And IP55 With A Plug Inserted
• IK10 Impact Resistance For Robust Outdoor Installation
• Suitable For Wall Or Post Mounting
• Width: 283mm
• Height: 190mm
• Depth: 152mm
• Weight: 2.3kg
• Warranty: 2 Years
