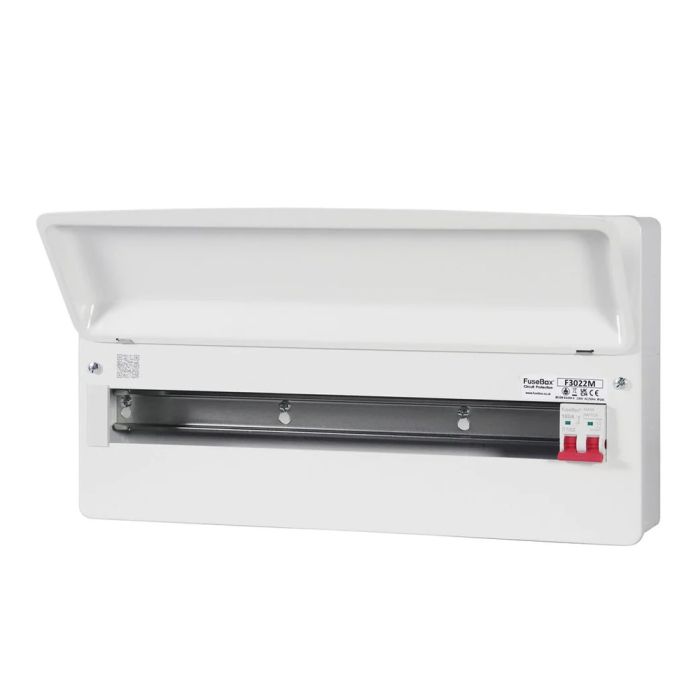

Fusebox 22 Way RCBO Consumer Unit with Main Switch F3022M

Name: Fusebox 22 Way RCBO Consumer Unit with Main Switch F3022M
Brand: Fusebox
SKU: F3022MF
Price: 58.75 GBP
Availability: InStock

Product Code F3022M

reviews

Available for Delivery only, change to Fast Delivery Service

£48.96

exc VAT

£58.75 : inc VAT

£58.75

inc VAT

£48.96 : exc VAT

BULK SAVINGS!
QTY Unit Price
1-2 £48.96 £58.75
3+ £48.38 £58.06

The Fusebox F3022M (Replaces Fusebox F2021M) is a robust and efficient solution for electrical distribution in residential or commercial settings. Featuring 22 usable ways and a 100A main switch incomer, this 22 way consumer unit provides the capacity and reliability needed for demanding installations.

User-Friendly Design

Installation is hassle-free and straightforward thanks to features like top-mounted earth and neutral terminal bars, a removable raised DIN rail, and round knock-outs on all faces for cable entry.

Built to Last

The Fusebox F3022M’s increased height easily accommodates RCBOs, while the reinforced grommet and full compliance with BS EN 61439-3 ensure lasting safety and durability.

Key Features of the Fusebox F3022M:

22 outgoing ways for flexible circuit configuration - Easily adaptable to changing electrical needs or future expansion
100A main switch incomer - Delivers powerful, dependable performance for residential or light commercial use
Top-mounted earth and neutral terminal bars - Speeds up wiring and simplifies cable management
Removable raised DIN rail - Simplies fitting and maintaining devices
Round knock-outs on all sides - Allows for cable entry from any direction, increasing installation flexibility
Increased internal height - Offers more space for modern RCBOs
BS EN61439-3 compliant - Meets industry standards for safety, reliability, and peace of mind
Reinforced grommet - Protects cabling from wear and tear
IP20XC-rated - Suitable for indoor use in dry environments, with extra protection for enclosed syst
Number of modules - 24
Height - 259mm
Width - 486mm
Depth - 113mm

View Fusebox Consumer Units

View Fusebox RCBO's

View All Fusebox Products

Do you need some help, would like to take advantage of our Price Promise or perhaps have a large order to place? If you can't find what you need, we can source it for you by giving our team of professionals a call on 0203 994 5470, drop us an email at sales@electricpoint.com or use our Contact Form.

Model Number	F3022M
Brand	Fusebox
Range	RCBO Consumer Units
Product Type	22 Way RCBO Consumer Unit
Surge Protection	Yes
Incomer Included	Yes
Incomer Type	Switch Disconnector
Tail Clamp Compatible	Yes, Tail Clamp Included (ACCF)
Double Bank	No
Pole	Double Pole
Installation	Domestic
Current Rating	100A
Outgoing Ways	22 Way
Device Mounting	35mm DIN Rail
RCDs Included	No
MCBs Included	No
High Integrity	No
Metered	No
Knockouts	20-40mm
IP Rating	IP2XC
Power Supply	230V
Frequency	50/60Hz
Number of Phases	Single
Construction	Galvanised Metal
Finish	RAL 9001 Powder Coated
Mounting	Surface
Dimensions (HxWxD)	259mm x 486mm x 113mm
Weight	3kg
18th Edition Compliant	Yes
17th Edition Compliant	Yes
Standards	BS EN61439-3
Warranty	1 Year
