Aico Ei128R Mains Relay Module Base

Product Code EI128R

reviews

Add Your Review

Available for Delivery only, change to Fast Delivery Service

£26.10

exc VAT

£31.32 : inc VAT

£31.32

inc VAT

£26.10 : exc VAT

  • BULK SAVINGS!
  • QTY Unit Price
  • 1-3 £26.10 £31.32
  • 4+ £24.47 £29.36

Qty:

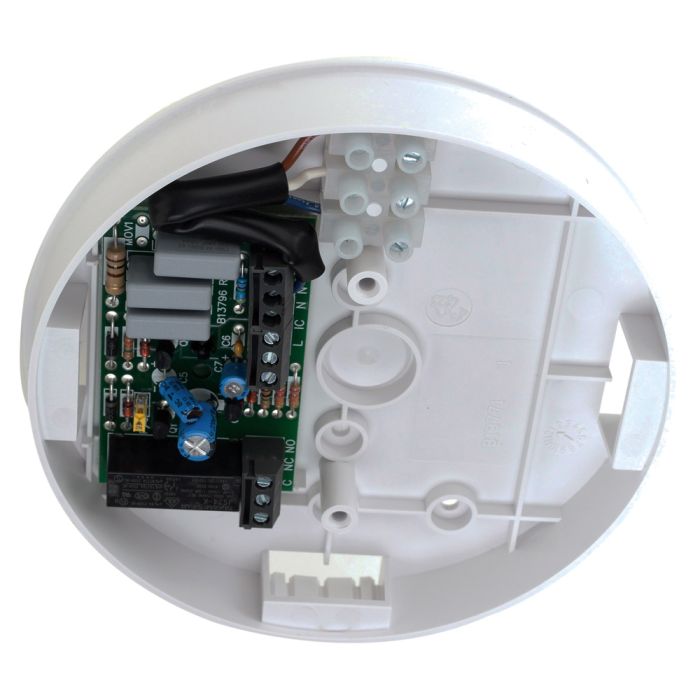

Aico Ei128R hard-wired relay module, designed to activate external devices when an alarm system is triggered. The volt free contacts can be configured to set off devices such as indicator lights, magnetic door handles and strobes when a risk is detected. The mains-powered module is installed underneath of an easi-fit base or can be remotely fixed by using the supplied cover. With the choice of continuous or pulse modes, the device can be set up to provide smoke and fire security to a building.

Features of Aico Ei128R

  • The relay is designed to operate while the alarm system is signalling, to trigger ancillary devices such as door closers, extractors, remote sounders etc
  • Compatible with 3000, Ei2100E Multi-Sensor Fire Alarm, 160E Series and 140RC Series
  • Mains powered
  • Can be used in a set of up to 12 interconnected devices
  • Volt free contacts
  • Internal switch settings: Pulse or continuous
  • Pulse setting will switch back the relay contact after 5 seconds
  • Trunking knock-outs for easy and neat wiring
  • Fixing: Mounts underneath easi-fit base alarm or remotely with supplied base
  • Voltage: 230V
  • Humidity range: 0% to 99% relative humidity
  • Height: 21mm
  • Diameter: 141mm
  • Material: Plastic UL94 VO flame retardant
  • Warranty: 5 year (limited) warranty
  • Standards: BS EN 14604:2005



If you just need some help, would like to take advantage of our Price Promise or perhaps have a large order to place give our team of professionals a call on 0203 994 5470, drop us an email at sales@electricpoint.com or use our Contact Form.

Browse All Smoke Alarms

Product Downloads Specification Sheet
  • The relay is designed to operate while the alarm system is signalling, to trigger ancillary devices such as door closers, extractors, remote sounders etc
  • Compatible with 3000, EI2100E Multi-Sensor Fire Alarm, 160E Series and 140RC Series
  • Mains powered
  • Can be used in a set of up to 12 interconnected devices
  • Volt free contacts
  • Internal switch settings: Pulse or continous
  • Pulse setting will switch back the relay contact after 5 seconds
  • Trunking knock-outs for easy and neat wiring
  • Fixing: Mounts underneath easi-fit base alarm or remotely with supplied base
  • Voltage: 230V
  • Humidity range: 0% to 99% relative humidity
  • Height: 141mm
  • Width: 21mm
  • Material: Plastic UL94 VO flame retardant
  • Warranty: 5 year (limited) warranty
  • Standards: BS EN 14604:2005
